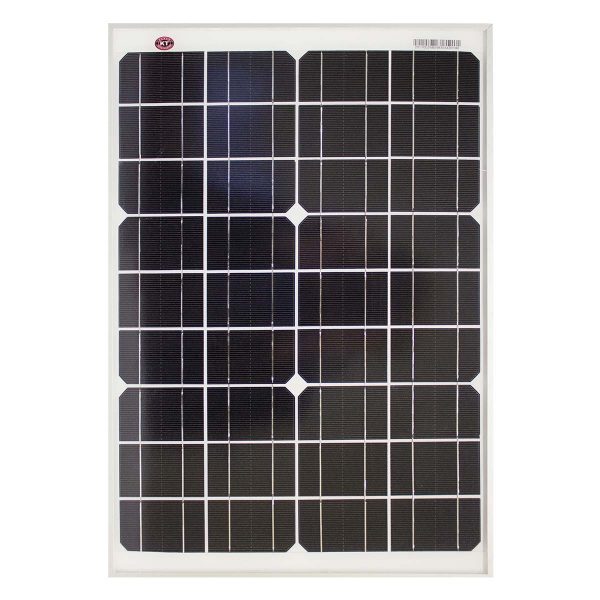

40 Watt 12V Solar Panel
40 Watt 12V Solar Panel

40 Watt 12V Solar Panel

No reviews yet
Part Number:

Designed for installation on 4WD, caravans, campers, motorhomes & jetty’s for charging small 12V boats & jet-ski batteries.

Ideal for home & rural applications including 12V home surveillance systems, garden lighting, irrigation systems, electric fences & electric gates.

Requires regulations from the solar charge controller. Suited to KT Solar Controller Model No. KT70755 – 8 Amp PWM Solar Charge Controller.

Features 900mm PV cables terminated to male & female TUV-certified solar connectors.

Dimensions & Weight:

  • 420 x 670 x 25mm (H x L x D)
  • Panel Weight - 3.20kg

Features:

  • Designed for maintenance charging (trickle-charging) 12V batteries
  • Ideal for installation on 4WD’s, caravans, motorhomes, jetty’s for charging small 12V boat & jet-ski batteries
  • Ideal for 12V home surveillance systems, garden lighting, irrigation, electric fences/gates
  • Requires regulation by solar charge controllers
  • Connect to batteries with 900mm PV cables with positive (+) & negative (-) TUV certified connectors

Warranty & Guarantees

  • 10-Year Warranty on Manufacture & Build
  • 25-Year Efficiency Guarantee
  • National Warranty Programme
SPECIFICATIONS
Power Tolerance +3%
Maximum Power (Pmax) 40Wp
Maximum Power Voltage (Vmp) 18.2V
Maximum Power Current (Imp) 2.19A
Rated Voltage 12V
Open Circuit Voltage (Voc) 21.6V
Short Circuit Current (Isc) 2.42A
Operating Temperature -40°C to +85°C
Product Application Class A
Max System Voltage 1000V DC
