41 Series Diaphragm Pump
41 Series Diaphragm Pump
41 Series Diaphragm Pump
41 Series Diaphragm Pump
41 Series Diaphragm Pump
41 Series Diaphragm Pump
41 Series Diaphragm Pump
41 Series Diaphragm Pump

41 Series Diaphragm Pump

No reviews yet
Part Number:

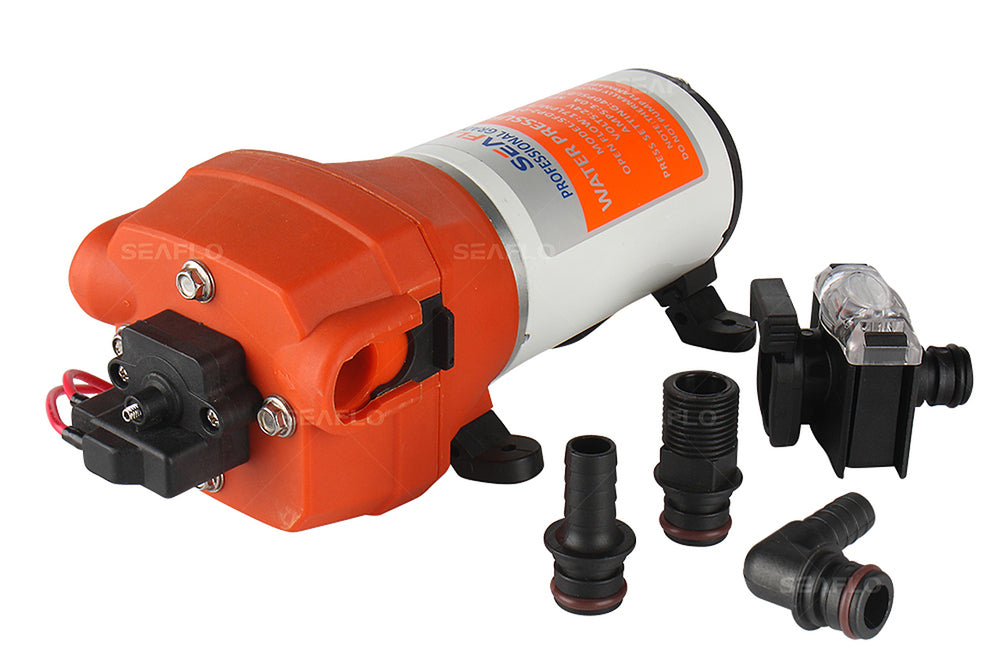

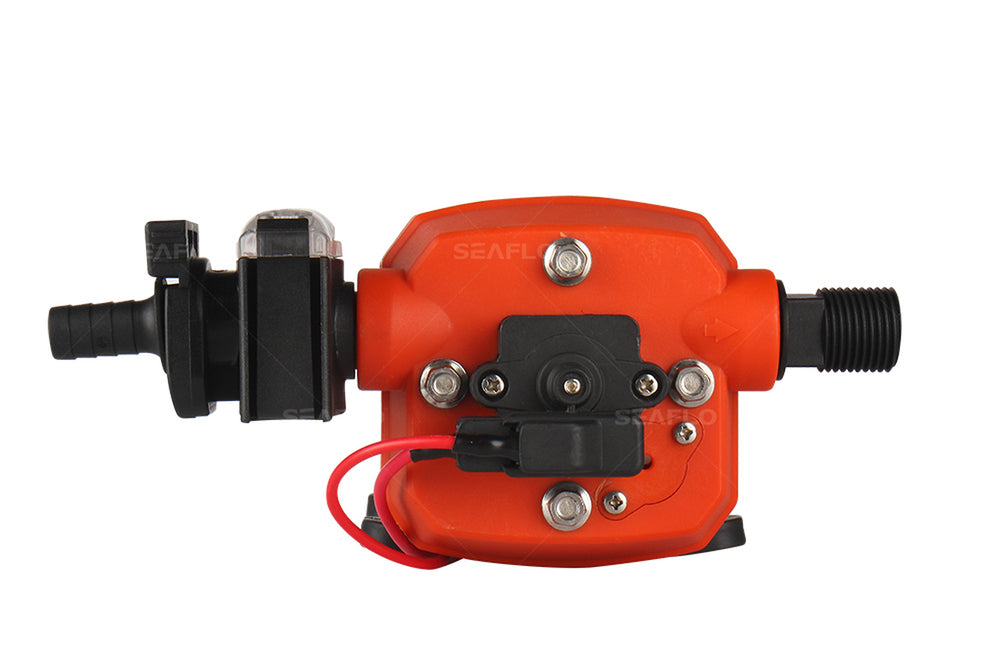

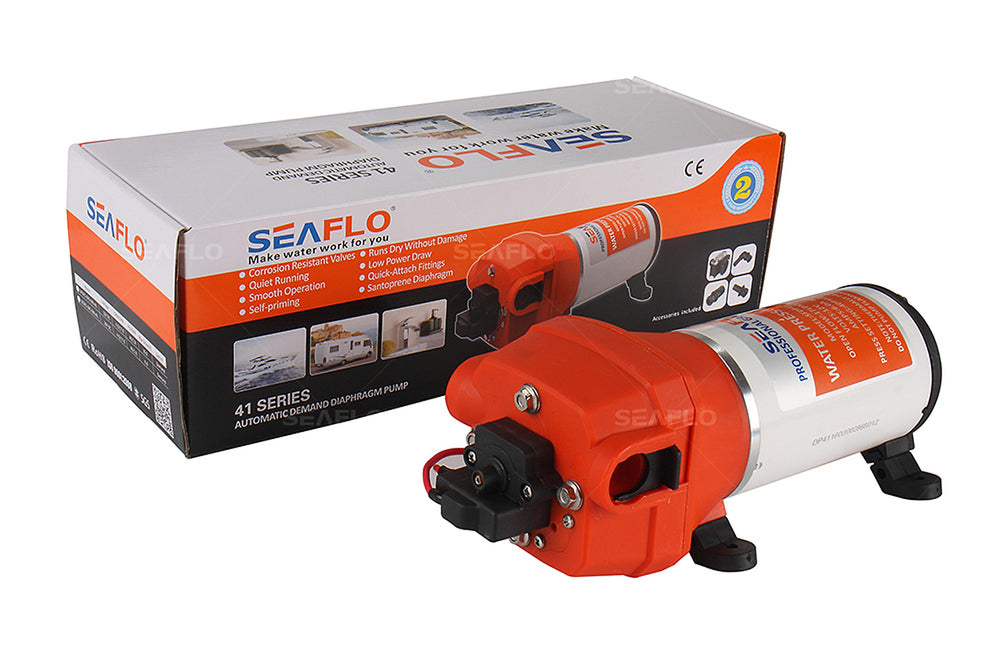

The SEAFLO 12v Series 41 17L/M Diaphragm Water Pressure Pump is a general-duty on-demand positive displacement pump. Thanks to the quad chamber diaphragm and internal bypass,the 41-Series pump provides high volume water flow with reduced pump cycling. It excels in providing high-water flow, with moderate pressure and is suitable for all activities needing these requirements. These models are designed to run on water systems with up to 5 outlets and no accumulator tank. The unit is self-priming and can run dry without damage. It also features a built in pressure switch, allowing the unit to start and stop when it detects a faucet being opened. These pumps are supplied with 12mm and 19mm fittings. Our SEAFLO pumps come with a 3 year warranty.

  • Positive Displacement Pump
  • Run-Dry capable
  • Quiet operation
  • Pressure detection (On demand switch), as well as a bypass mode
  • Low amp draw
  • Industry mounting pattern
  • Thermally protected

Specifications

  • 60°c temperature max
  • 1.8m (6ft) suction lift
  • 40PSI (2.8 bar)
  • 1/2"-14 MNPT Inlet/Outlet ports
  • Intermittent Duty
  • 16AWG, 1.3m (4.5ft) long leads with 2-pin connector
  • 12V
