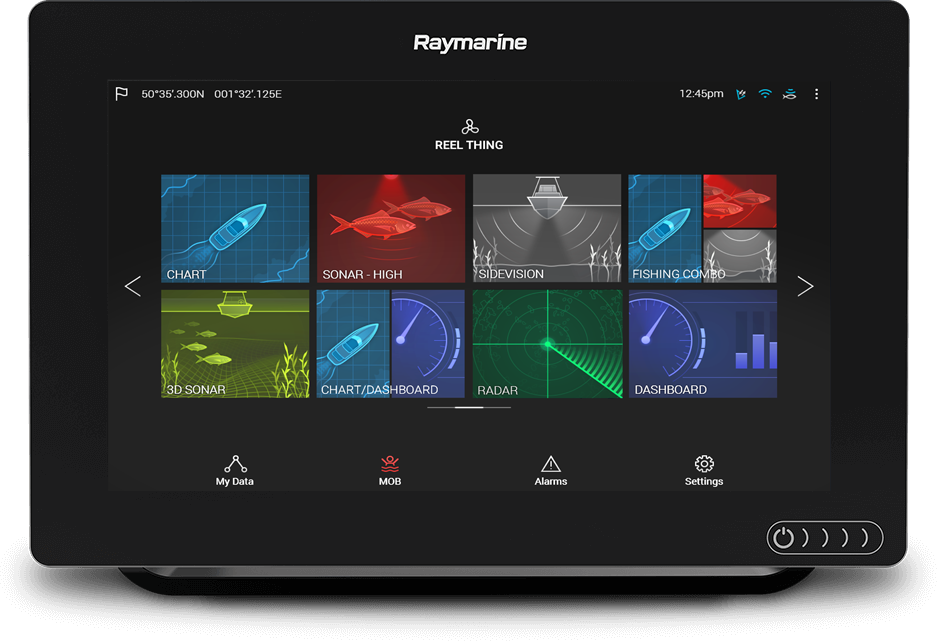

Axiom 9 - 9" Chartplotter Multi-Function Display
Axiom 9 - 9" Chartplotter Multi-Function Display
Axiom 9 - 9" Chartplotter Multi-Function Display
Axiom 9 - 9" Chartplotter Multi-Function Display
Axiom 9 - 9" Chartplotter Multi-Function Display
Axiom 9 - 9" Chartplotter Multi-Function Display
Axiom 9 - 9" Chartplotter Multi-Function Display
Axiom 9 - 9" Chartplotter Multi-Function Display

Axiom 9 - 9" Chartplotter Multi-Function Display

No reviews yet
Part Number:

A powerful new multifunction navigation system from Raymarine. With built-in RealVision 3D™ sonar, the all new LightHouse 3 operating system, and blazing fast quad core performance, Axiom will transform your time on the water.


Axiom is expandable, so its capabilities can grow, as needed. It supports the full range of Raymarine accessories, including Quantum radar, CHIRP Sonar, FLIR thermal cameras, audio integration, instruments, cameras, and Evolution autopilot. Standard Wi-Fi and Bluetooth connectivity allows connection to the latest Raymarine apps for tablets and smartphones.

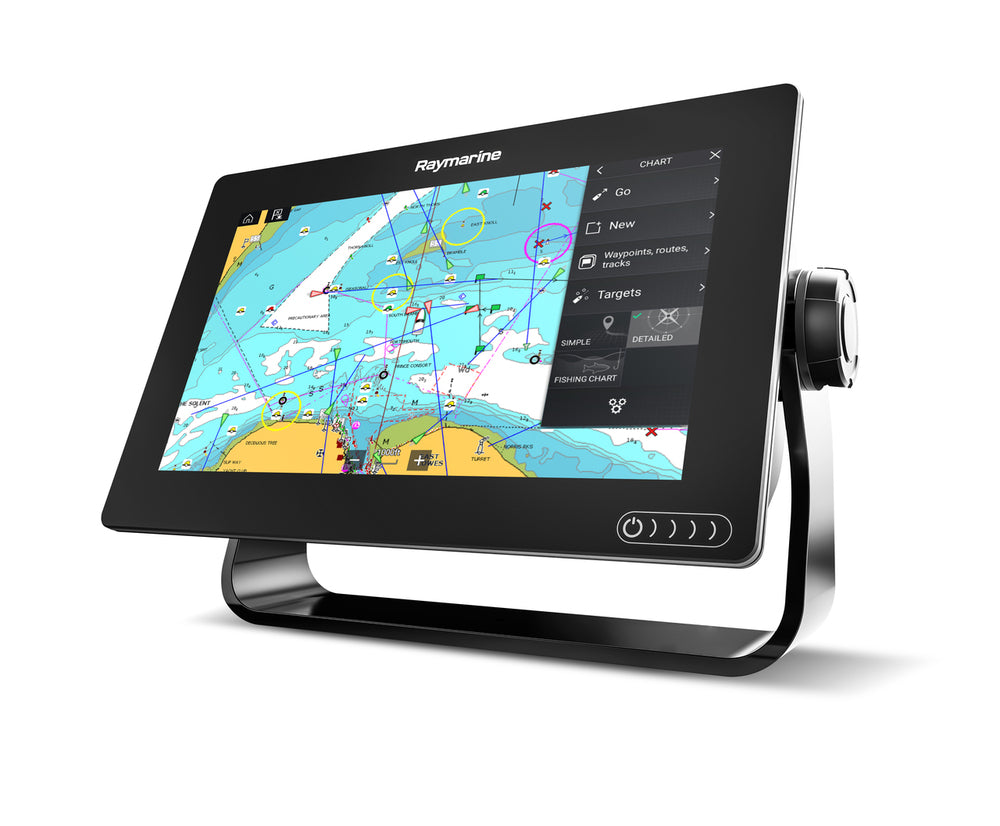

Axiom includes surface and trunnion mounting kits, mounting hardware, power/data cable, and installation instructions.

SPECIFICATIONS
DISPLAY
Display Size 9.0" Optically Bonded LCD
Display Resolution 800 x 480 WVGA
Display Type Multitouch
Brightness 1,200 nits
Viewing Angle Degrees: 60 / 70 / 70 / 70
(Top / Bottom / Left / Right)
PHYSICAL
Dimensions 244 x 158 x 77mm
(9.65" x 6.22" x 3.00")
Weight 2.04kg (4.5lbs)
Mounting
Waterproof Rating IPX6 / IPX7
Operating Temperature -25deg C to +55deg C (-13deg F to 131deg F)
Storage Temp -30deg C to +70deg C
(- 22deg F to 158deg F)
POWER
Voltage 12V DC (8 V to 16 VDC)
Power Consumption (Max @ 12V DC) Chartplotter - 7.34 Watts | DV - 10.02 Watts | RV - 9.84 Watts
Note: Power consumption figures for DV variants were taken using a CPT-100DVS transducer and RV variants using an RV-100 transducer.
SENSORS
GNSS / GPS Built-in GNSS Receiver: GPS/GLONASS- 10Hz 72 Channel | External Accessory: RS150 (E70310)
Sonar Type (Built-in) RV model - Built-in RealVision 3D + 600W
Sonar Connection DV variant = 9 pin DownVision™ type connector

RV variant = 25pin RealVision™ type connector (see transducer adaptor list for connecting 600W)

See adaptor and Y-cables to connect Raymarine CPT type, new RealVision 3D and/or Airmar 600W

External sonar - RayNet
Sonar Depth CHIRP Sonar = 274m (900 feet) | DownVision™ = 183m (600 feet)

SideVision™ = 91m (300 feet) | RealVision™ 3D = 91m (300 feet)
External Sonar Yes - CP100, CP200, CP370, CP470, CP570 via RayNet
Radar Yes - Quantum, Digital, HD Color and Super HD Color Radars
AIS Yes - NMEA2000
Autopilot Control Yes - Evolution Autopilot
Thermal Night Vision Yes - IP camera input only
Video / Camera Up to 10 IP Cameras
Weather GRIB View - Free GRIB viewer and Theyr Ltd Subscription | SiriusXM (N. America Only)

[Weather features available in future Lighthouse 3 software update]
Find out more about our weather options
Audio Integration NMEA2000 / *Bluetooth / *SiriusXM Audio

[*Available in future Lighthouse 3 software update]
DIGITAL SWITCHING
Remote Control *RMK-10 (A80438) & *RCU-3 (E62351)
[*Available in future Lighthouse 3 software update]
NETWORKING
Ethernet 1 x 10/100 Mbits/ Network (RayNet)
NMEA0183 Requires suitable adaptor to NMEA2000 network
NMEA2000 1 x NMEA2000 port (DeviceNet microC)
SeaTalkNG Requires A06045 DeviceNet female (F) adapter cable - 400mm
USB 1 x USB microB rear - 0.5A charging, external storage device or RCR-SD/USB Accessory (A80440))
Wi-Fi
BlueTooth Bluetooth 4.0 + Low Energy + Power Class 1.5
[Available in future Lighthouse 3 software update]
NAVIGATION
Cartography Lighthouse, Navionics, *C-MAP Essentials & *C-MAP 4D MAX+
[*C-MAP chart compatibility available in future Lighthouse 3 software update]
Find out more about our cartography options
TIDES & CURRENTS
Waypoint / Routes / Tracks 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts
MEMORY
Internal 4GB Solid State
External 1 x microSD slots (rear) - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32)
OTHER
Languages 14
Conformances NMEA 2000 certification: Europe: 1999/5/EC | Australia and New Zealand: C-Tick, Compliance Level 2 | FCC 47CFR part 15 | Industry Canada RSS210
