Part Number:

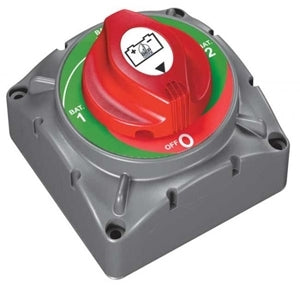

The 721 heavy-duty selector switch provides four possible operation settings, Off, Battery 1, Both, and Battery 2 giving the choice of charging a selected battery or isolating current draw to a single battery. The switch can be recess-mounted in an 85mm hole or surface-mounted. Screw holes 5mm roundhead. Removable rear cover insulates the rear terminals against short circuits and removable side plates provide access for heavy-duty battery cables. Please note this system will not protect electronics from harmful engine starting spikes.

Features:

Continuous rating 350 amps DC between common and B1 or B2
500 amps DC between common and B1 and B2
Intermittent rating 500 amps DC
Cranking rating 1500 amps DC for 10 seconds
Voltage rating 48 volts DC maximum
Terminal stud size 3 x 10mm
