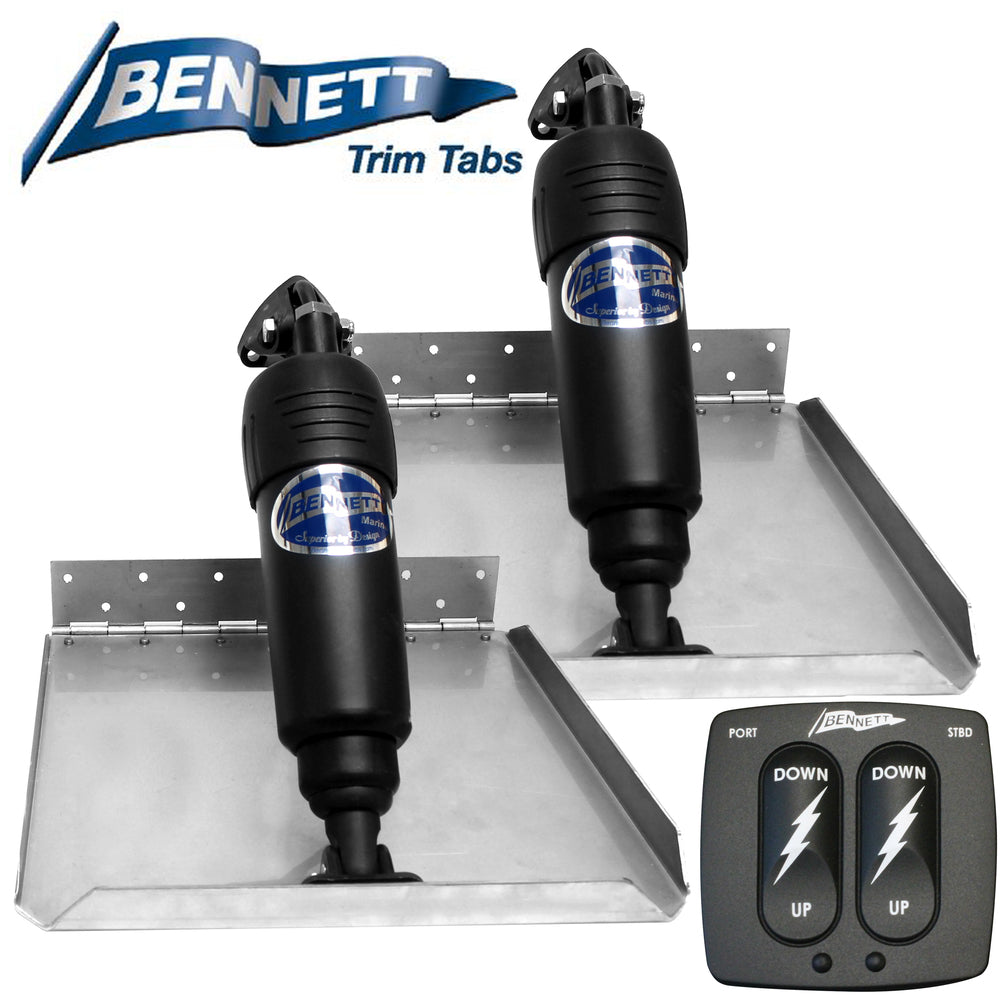

BOLT Edge Trim Tab Kit with Auto Tab Switch

Balance load, plane faster, increase efficiency and performance with Bennett BOLT Electric Trim Tab Systems. BOLT is built to outlast any electric trim tab system on the market.

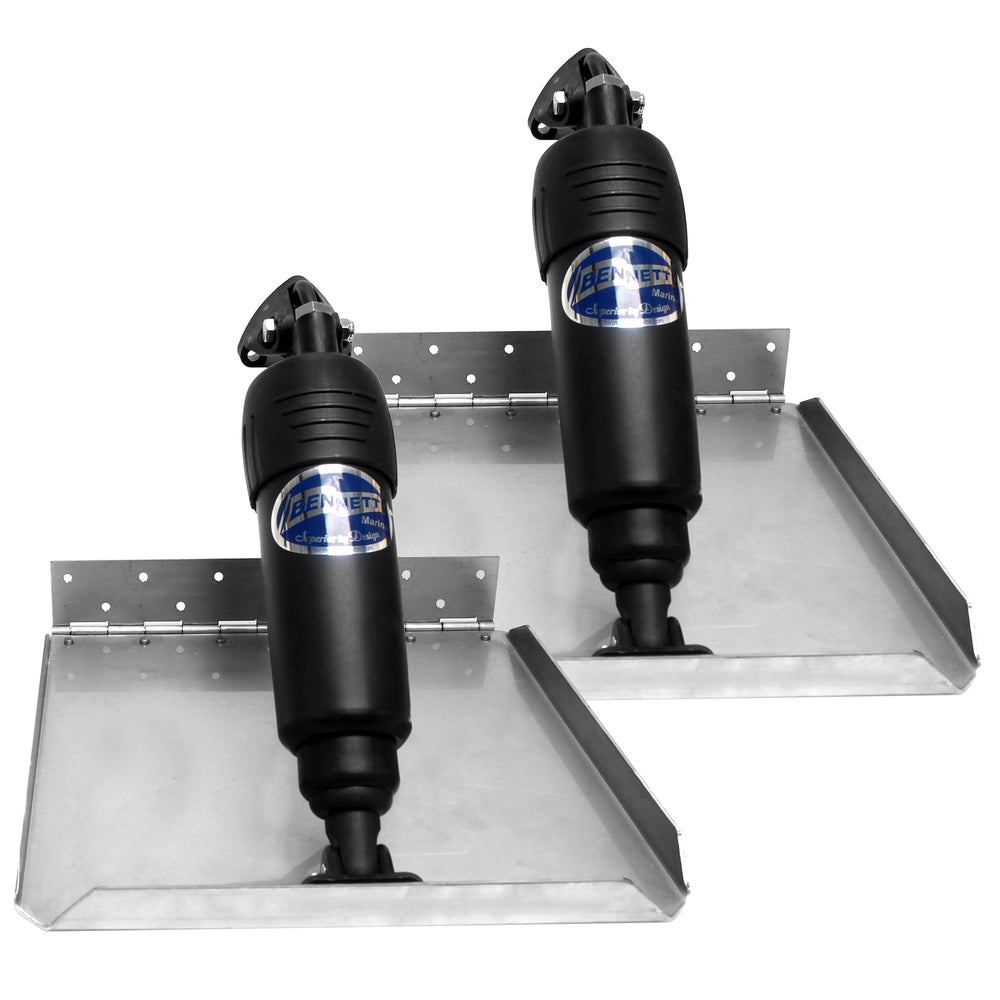

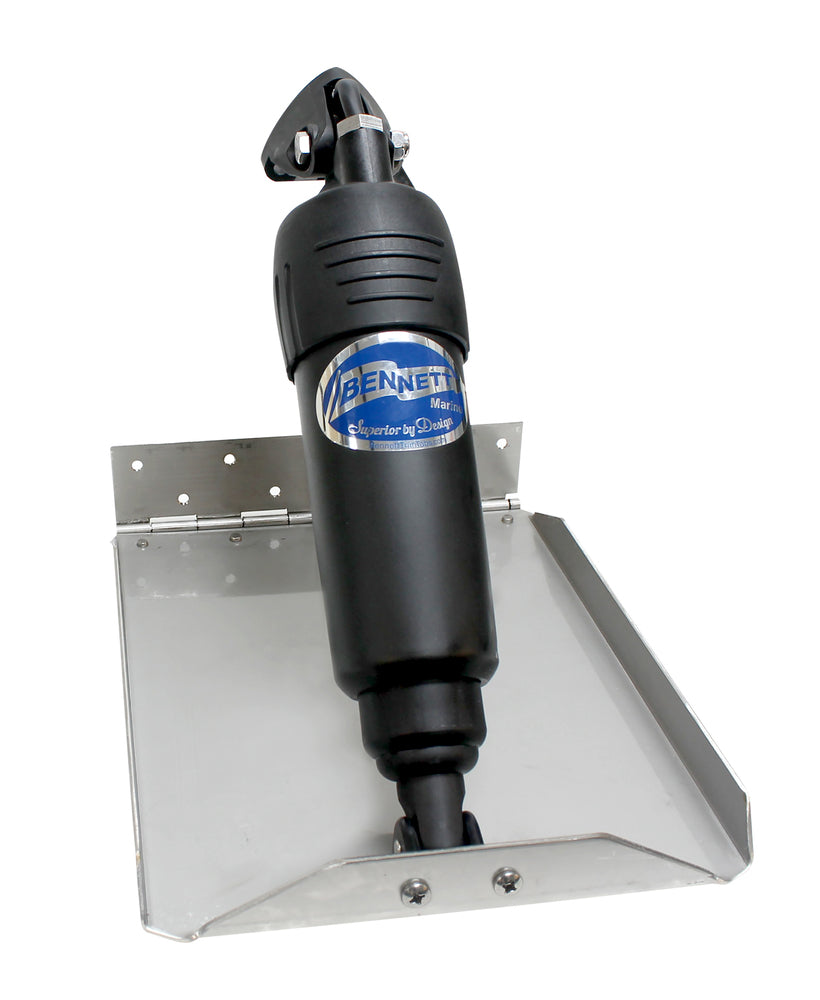

BOLT Electric edge mount stainless steel trim tabs are suitable for limited space areas and come with adjustable upper hinge actuators. Exceptionally durable and dependable electric trim tab systems come with a lifetime warranty for electric actuators. They have a water-tight design that provides trouble free operation for years. Easy and simple installation. This kit comes with the Bennett Auto Tab Control Switch.

The Bennett Auto Tab Control Switch incorporates the rocker switch control and auto tab retraction into one stylish keypad. Plug and play design speeds installation. Water resistant keypad and connectors ensure yours of trouble free operations. Control box incorporates innovative LED status indicators simplifying installation and troubleshooting.

Specifications:

• Vertical transom space required:

  • adjustable upper hinge: 6.39″
• Stroke: 2.5″
• Length: 13.25″
• Voltage: 12V
• Connectors: Deutsch, DT Series, 13A
• Working forces:

  • Actuation force: 750 lb.
  • Return Force: 750 lb.
• Current draw:

  • Actuators: 20amp Max draw
  • Helm Control: 20amp Max draw.
  • Control Unit / Relay Module: 20amp Max draw.

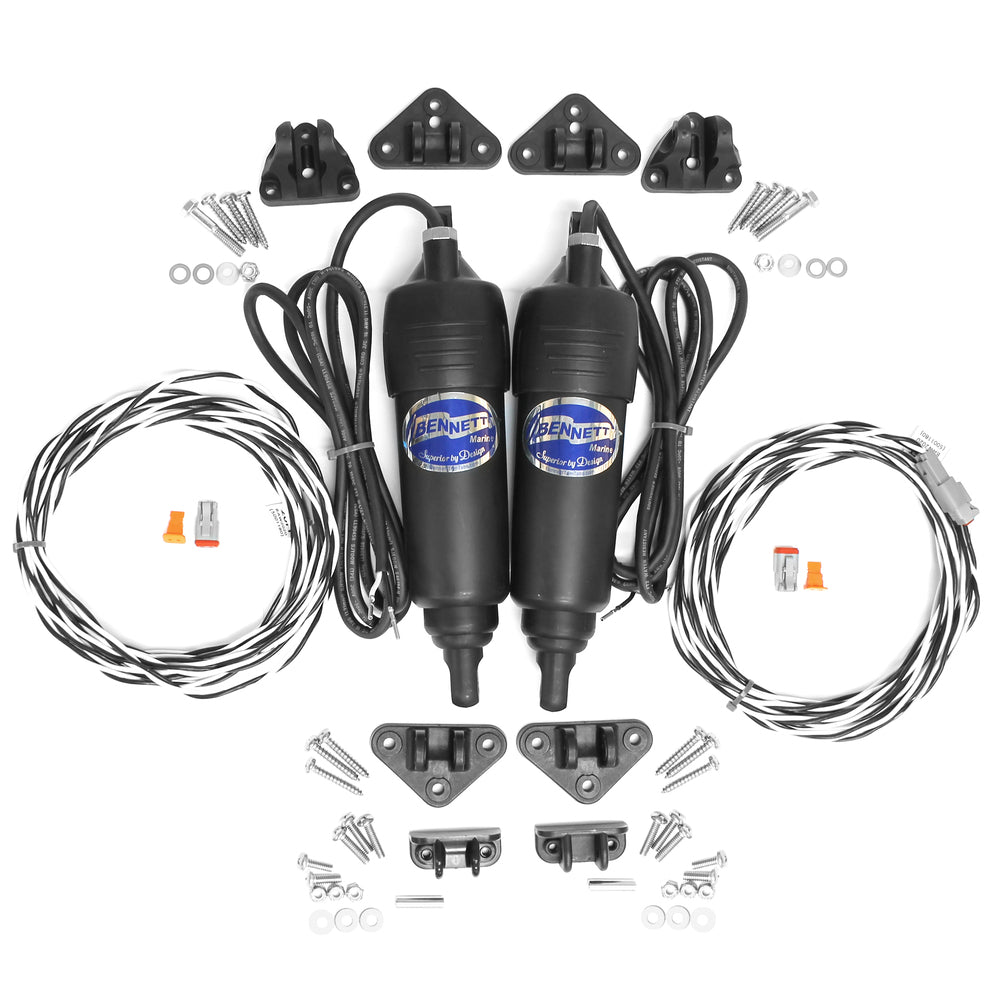

Kit includes:

• 2 x Stainless steel trim plates and mounting plates
• 2 x 20ft harnesses with waterproof connectors
• 2 x 12 volt actuators with 6ft wire harnesses and waterproof connectors
• 1 x Bennett Auto Tab Control Switch

*Please select the plate size you require.
