Class B Drive Unit for GHP 12

Name: Class B Drive Unit for GHP 12
Brand: Garmin
Price: 4199.00 AUD
Availability: OutOfStock

No reviews yet

    {
      "variants": [{
            "id": 42773136507042,
            "selected": false,
            "sku": "8171358",
            "inventory_quantity": 0,
            "inventory_policy": "deny",
            "option1": "Default Title",
            "option2": "",
            "option3": "",
            "price": "419900",
            "compare_at_price": null,
            "swymData": {
  "empi": 7712864600226,
  "epi": 42773136507042,
  "pr": 4199.0,
  "du": "https://www.biasboating.com.au//products/class-b-drive-unit-for-ghp-12?variant=42773136507042",
  "iu": "\/\/www.biasboating.com.au\/cdn\/shop\/products\/010-11573-00_620x620.jpg?v=1666859687"
}
,
            "metafields": {}
          }],
      "productOptions": [

          {
            "name": "Title",
            "available": [

                "Default Title"


            ]
          }

      ],
      "default_variant": true,
      "settings": {"invalid_text":"The selected options are not available together, please adjust your selection","unavailable":"Unavailable","select_option":"Please select an option","select_variant":"Please choose a variant"},
      "product": {
        "price": "419900",
        "compare_at_price": ""
      }
    }

Part Number:

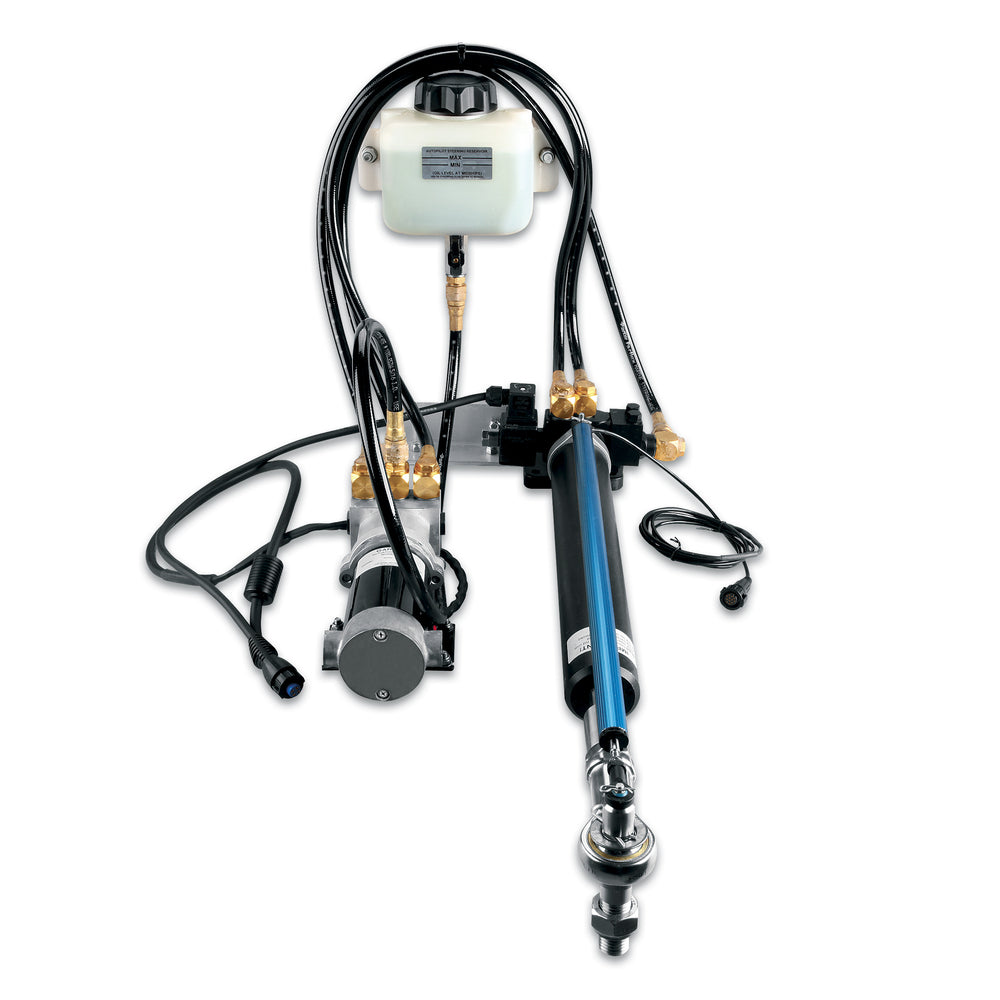

The Class B Drive Unit works with the GHP 12 Marine Autopilot System to control your sailboat's steering system. This device is designed for use with larger sailboats with up to 79,000 lbs of displacement.

Specifications

Drive Unit Type: Hydraulic linear
Stroke Length: 12" (303 mm)
Maximum Thrust: 2380 lb (1080 kg)
Supply Voltage: 10V to 30V
Average Clutch Current at 12V: 1 Amp
Average Motor Current at 12V: 3-4 Amps
Dimensions, WxHxD:

- Motor: 8.8" x 3" x 3.5" (223 x 76 x 88 mm)

- Cylinder (centered): 32.7" x 4.1" x 6.3" (830 x 105 x 160mm)

- Reservoir: 7.9" x 6.1" x 3.3" (200 x 155 x 85 mm)
