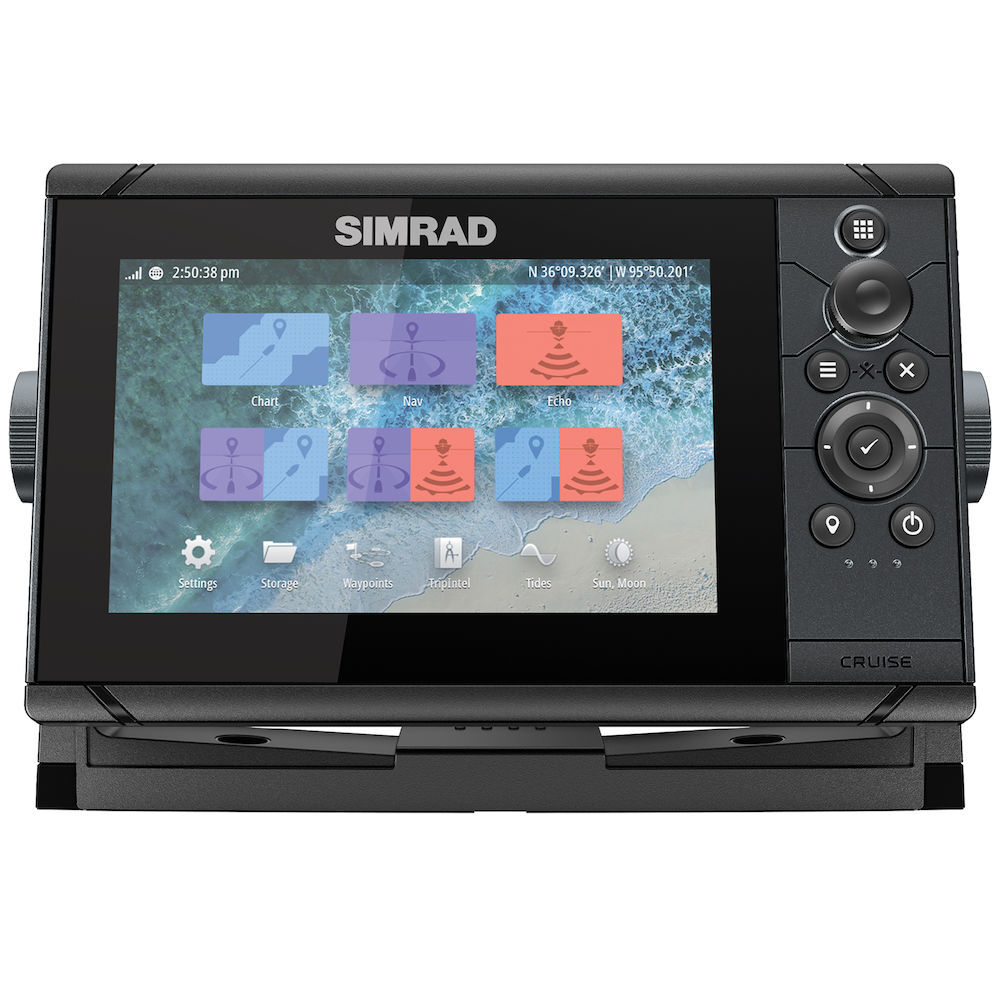

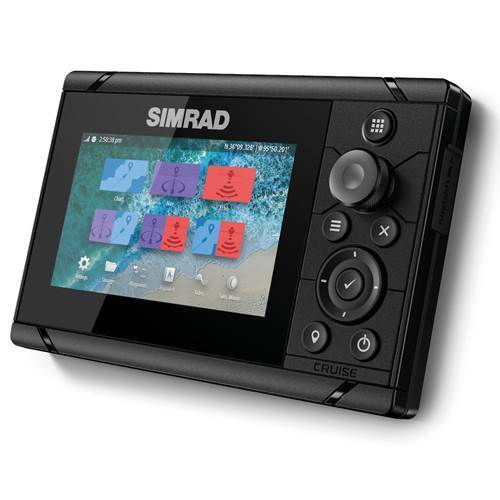

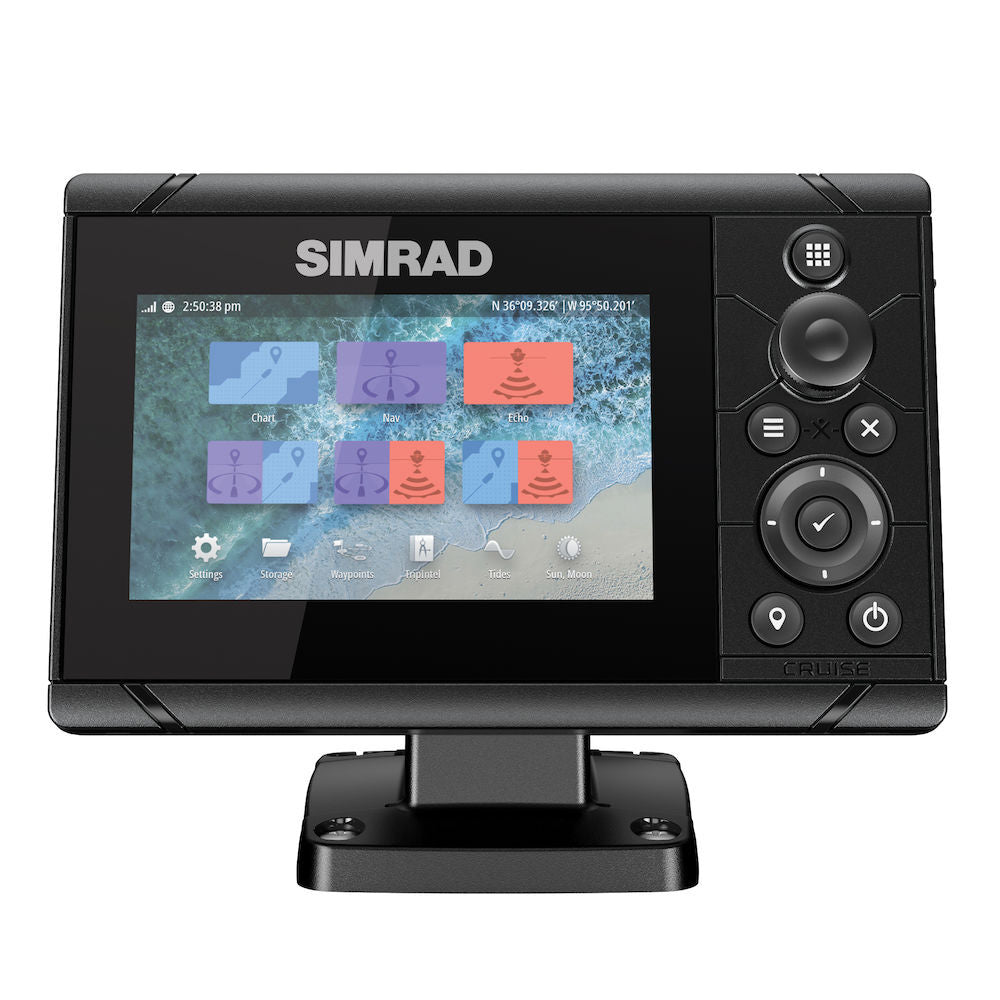

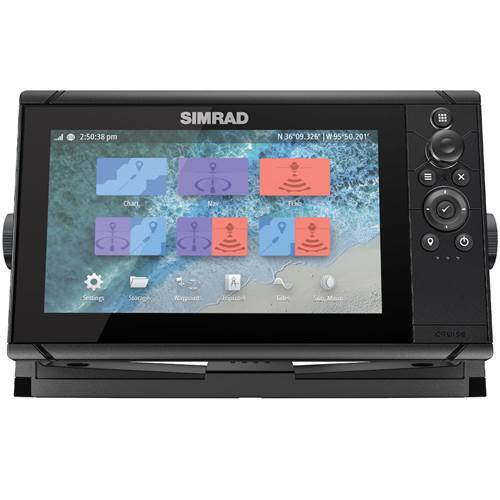

Name: Cruise with Base Chart and 83/200 Transducer
Brand: Simrad
Price: 879.00 AUD
Availability: OutOfStock

Part Number:

Smooth Navigation Between Menus

Simrad Cruise features intuitive menus, so you can quickly find the information you need, when you need it, and rotary dial and keypad controls make navigating from screen to screen effortless. Put away the instruction manual; with Simrad Cruise, you simply turn on your display and go!

Always On Course

Know where you are and where you are going! Bundled with a C-MAP chart of Australia & New Zealand, Simrad Cruise comes complete with all the charts you need to enjoy your day on the water. Want more detail? Choose from a wide range of enhanced charts from C-MAP® and Navionics®, and enjoy advanced features like C-MAP® Easy Routing for a true navigation experience.

Everything in View

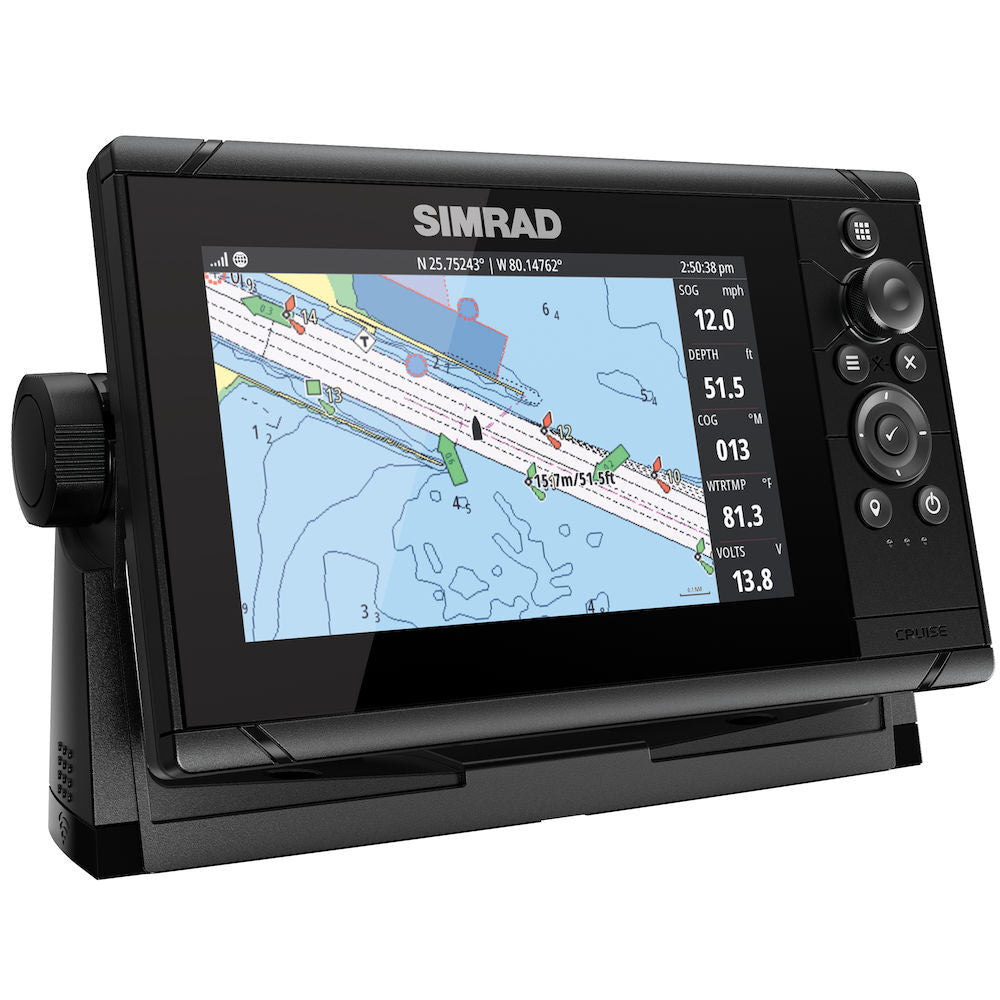

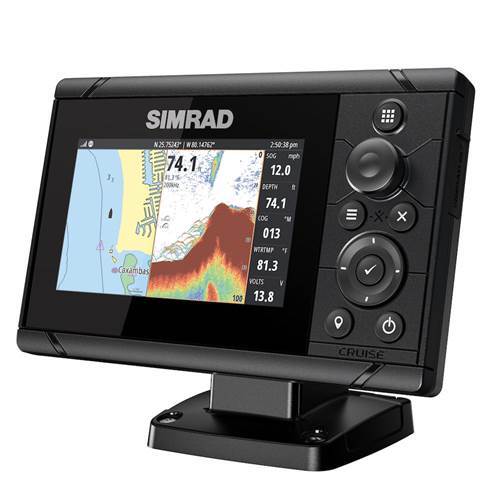

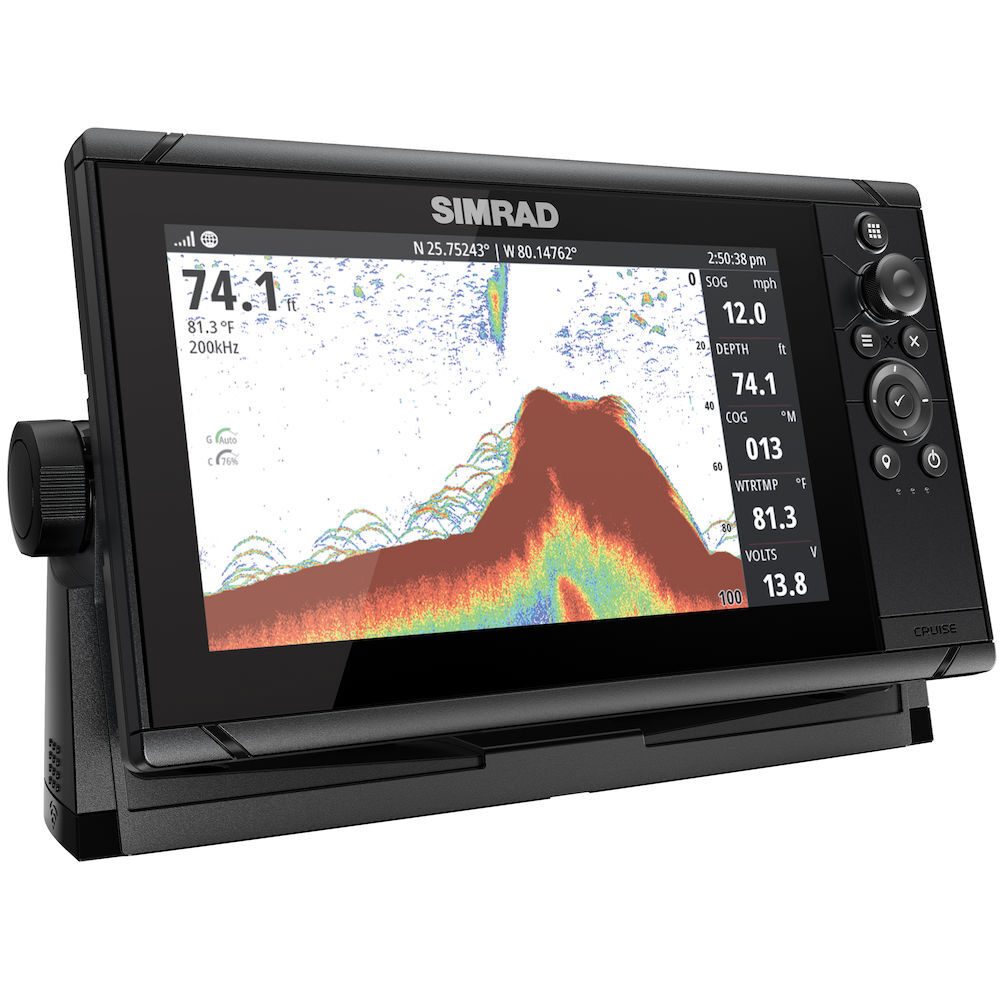

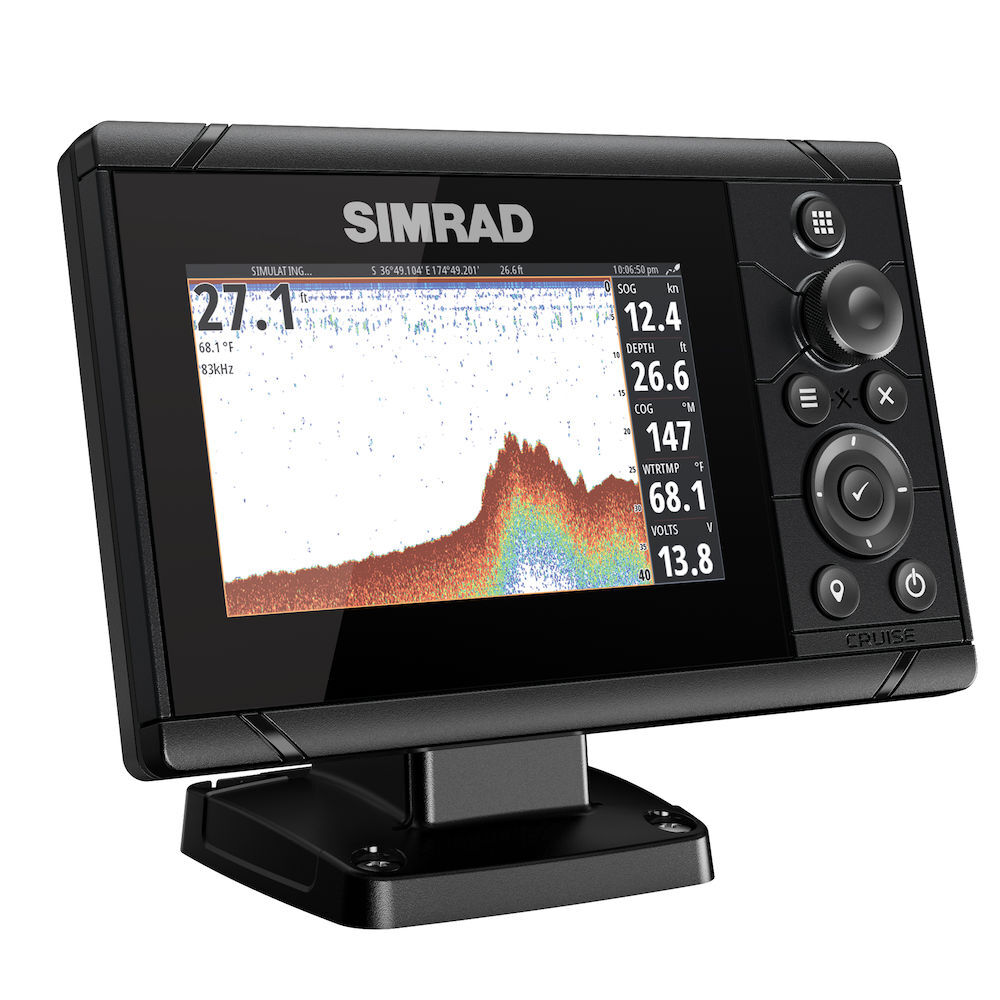

See the details you want the way you want them! Simrad Cruise offers both full and split-screen views, so you can easily display the information you need. Plotting your course? Select full screen charts for a maximum view of your surroundings. Not sure what’s underneath you? Choose full screen sonar for a clear view of the bottom and automatic depth tracking. Want to see it all? Use the split-screen option for the perfect combination of chart and sonar data.

Stay Informed

Simrad Cruise gives you access to the information you need for a safe and enjoyable time on the water. Depth readings, position, battery voltage and other critical boat information, can all be monitored on your screen for quick reference and situational awareness.

Cruise confidently with simple menus plus easy-to-use rotary dial and keypad controls
Pre-selected split screens to keep important data in view
Display depth, position, battery voltage and more
Bundled with C-MAP chart of Australia & New Zealand
Supports a wide range of enhanced charts from C-MAP® and Navionics®

Connectivity

Feature	Cruise 5	Cruise 7	Cruise 9
NMEA 0183 Sentences supported	No	No	No
Bluetooth	None	None	None
Ethernet	None	None	None
N2K PGNS	N/A	N/A	N/A
NMEA 0183	None	None	None
NMEA 2000	None	None	None
PC Connectivity	None	None	None
Video	None	None	None
WiFi	None	None	None

Display

Feature	Cruise 5	Cruise 7	Cruise 9
Backlight Colour	White	White	White
Resolution	800x480	800x480	800x480
Screen Brightness	800 nits	1000 nits	1000 nits
Viewing Angles	70° top/bottom, 70° left/right	70° top/bottom, 70° left/right	70° top/bottom, 70° left/right

Electrical

Feature	Cruise 5	Cruise 7	Cruise 9
Power Consumption, max.	12.2 W	16.3 W	19.4 W
Recommended Fuse Rating	3A	3A	3A
Supply Voltage	10 - 17 V DC	10 - 17 V DC	10 - 17 V DC

Environment

Feature	Cruise 5	Cruise 7	Cruise 9
Operating Temperature Range	"-15°C to +55°C (5° F to 131° F)	"-15°C to +55°C (5° F to 131° F)	"-15°C to +55°C (5° F to 131° F)
Waterproof rating	IPX 6 and 7	IPX 6 and 7	IPX 6 and 7

MFD

Feature	Cruise 5	Cruise 7	Cruise 9
AIS	N/A	N/A	N/A
Autopilot	N/A	N/A	N/A
Cartography included	C-MAP chart of Australia & New Zealand	C-MAP chart of Australia & New Zealand	C-MAP chart of Australia & New Zealand
Digital Switching	N/A	N/A	N/A
External Storage	1 Micro SD slot, max. 32GB each. >32 GB format to NTFS	1 Micro SD slot, max. 32GB each. >32 GB format to NTFS	1 Micro SD slot, max. 32GB each. >32 GB format to NTFS
GPS	Internal, 1Hz, WAAS, MSAS, EGNOS	Internal, 1Hz, WAAS, MSAS, EGNOS	Internal, 1Hz, WAAS, MSAS, EGNOS
Multimedia	N/A	N/A	N/A
Radar (inc. compatibility)	N/A	N/A	N/A
Sonar (inc. compatibility)	Integrated CHIRP. 8 Pin push fit connector	Integrated CHIRP. 8 Pin push fit connector	Integrated CHIRP. 8 Pin push fit connector
Weather	N/A	N/A	N/A

Physical

Feature	Cruise 5	Cruise 7	Cruise 9
Dimensions (W X H X D)	184.5 mm x 142.3 x 117.9 mm (7.26" x 5.6" x 4.64") (with bracket)	263 mm x 145.5 x 100 mm (10.35" x 5.73" x 3.58") (with bracket)	311 mm x 165.8 x 92.6 mm (12.24" x 6.53" x 3.65") (with bracket)

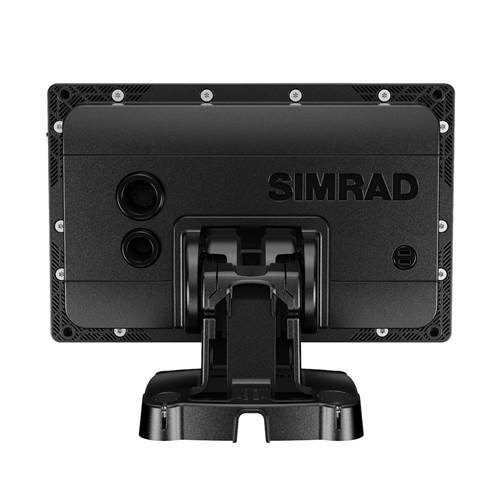

Mounting Type	Bracket or Panel	Bracket or Panel	Bracket or Panel

Other

Feature	Cruise 5	Cruise 7	Cruise 9
Warranty Period	2 Years	2 Years	2 Years
Interface	Directional cursor button and rotary dial	Directional cursor button and rotary dial	Directional cursor button and rotary dial
Languages	Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish. Other Language unlocksAsian Language Pack: English (US), Japanese, Korean, Thai, Chinese, Eastern European Language Pack: English (US), English (UK), Bulgarian, German, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Lithuanian, Latvian, Polish, Slovak, TurkishRussia/Ukraine Language pack: English (US), English(UK), German, Spanish, French, Italian, Russian, UkrainianMiddle Eastern Language Pack: English (US), English (UK), Arabic, German, Spanish, Farsi, French, Italian

Whats in the Box?

Cruise 5"

HOOK2 / REVEAL / CRUISE POWER CABLE
CRUISE/HOOK2 83/200 SKIMMER TRANSDUCER
HOOK2 4-5"/REVEAL5"/ CRUISE 5" BRACKET
C-MAP® DISCOVER™ - AUSTRALIA AND NEW ZEALAND

The perfect mapping solution for cruisers, anglers and sailors looking for accurate, quality data and a range of coverages from the market-leader.

Cruise 7"

HOOK2 / REVEAL / CRUISE POWER CABLE
CRUISE/HOOK2 83/200 SKIMMER TRANSDUCER
GO9, EVO3, ZEUS3 GIMBAL BRACKET
C-MAP® DISCOVER™ - AUSTRALIA AND NEW ZEALAND

The perfect mapping solution for cruisers, anglers and sailors looking for accurate, quality data and a range of coverages from the market-leader.

Cruise 9"

HOOK2 / REVEAL / CRUISE POWER CABLE
CRUISE/HOOK2 83/200 SKIMMER TRANSDUCER
NSS9 EVO3 & ZEUS3-9 GIMBAL BRCKT
C-MAP® DISCOVER™ - AUSTRALIA AND NEW ZEALAND

The perfect mapping solution for cruisers, anglers and sailors looking for accurate, quality data and a range of coverages from the market-leader.
