Driving Range - TIR Range (Twin Pack)
Driving Range - TIR Range (Twin Pack)
Driving Range - TIR Range (Twin Pack)
Driving Range - TIR Range (Twin Pack)
Driving Range - TIR Range (Twin Pack)
Driving Range - TIR Range (Twin Pack)

Driving Range - TIR Range (Twin Pack)

No reviews yet
Part Number:

The new TIR Optics Range. TIR stands for ?Total Internal Reflection? and is the latest in optical design for use with injection-molded plastic polymers that are shaped into a refractive lens inside a reflector. This in turn encompasses the onboard LEDs, harnessing the light at the source and focusing each LED to exactly where it is intended with minimal glare or stray light. Research and development into this project discovered some interesting facts. Two lamps, one a TIR lens design and the other a reflector based style both with matching specifications that include Lumen and lux outputs showed the TIR to have a centre illumination in lux twice that of the reflector and only 6% light contributing to glare as opposed to 28% with the reflector technology.

Features:

  • Focused Optics for Each LED
  • Magnifying Light Intensity
  • No Light Loss Through Reflectors
  • Heavy Duty
  • 4mm 304 Painted Stainless Steel Bracket
  • High Brightness OSRAM LEDs
  • New 4mm 304 Stainless Steel Bracket
  • 2 Year Warranty

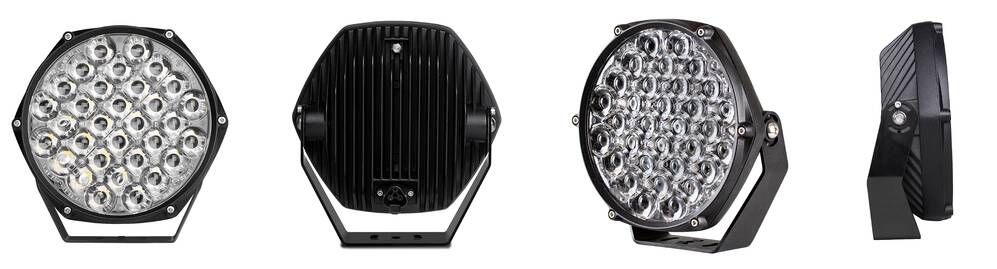

    Product Total Internal Reflection Optics Range Driving Lamps
    Function Driving Lamps/Park Light

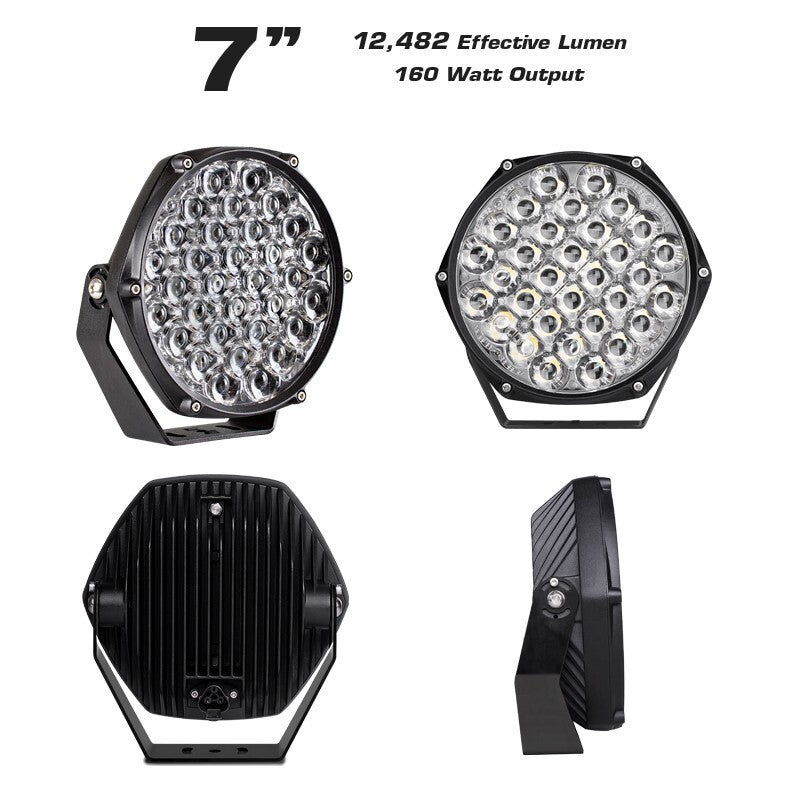

    Part Number TIR7 - 7"

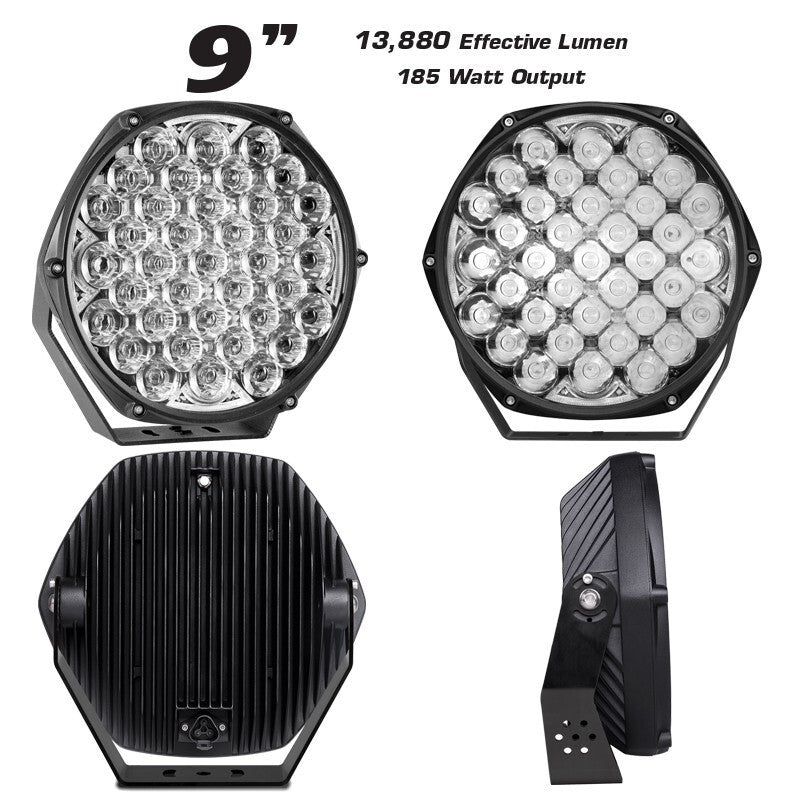

    TIR9 - 9"
    Size TIR7 - 189mm x 175mm x 65mm

    TIR9 - 244mmx 228mm x 73mm
    Color White Voltage 9 Volt to 32 Volt
    LED Qty TIR7 - 32 LED + 4 Park Light LEDs

    TIR9 - 37 LED + 8 Park Light LEDs
    Watts TIR7 - 160 Watt

    TIR9 - 185 Watt
    Output TIR7 - 12,480lm Effective, 25,200lm Raw

    TIR9 - 13,880lm Effective, 27,800lm Raw
    Temperature Colour 6500K
    Lens PMMA Base Aluminum
