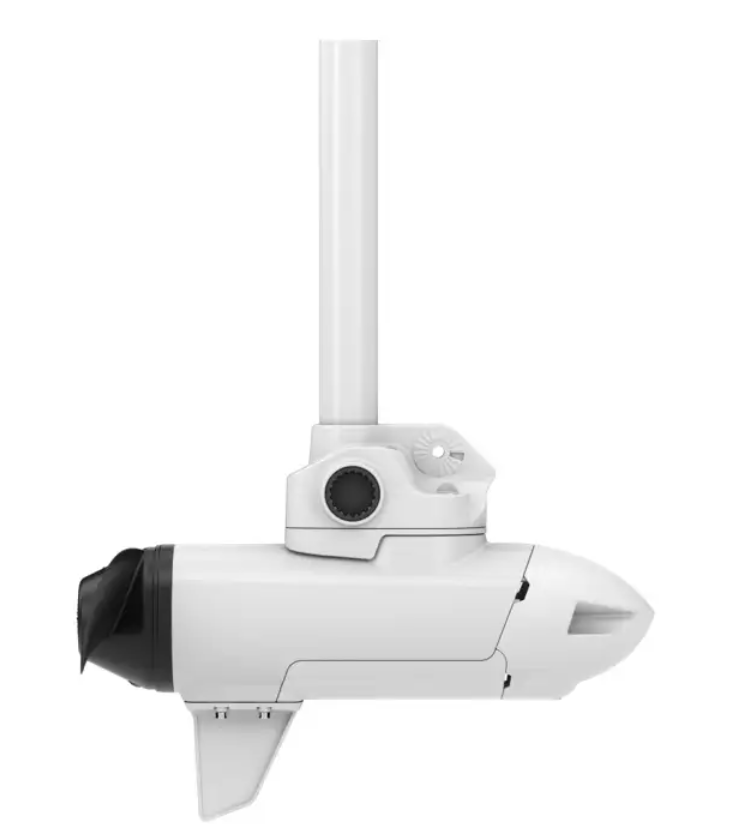

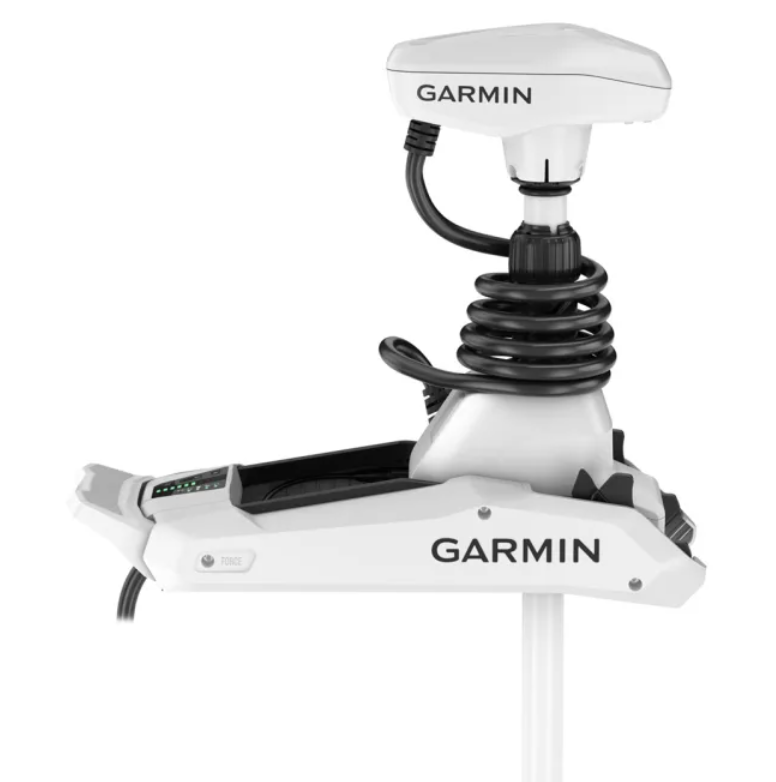

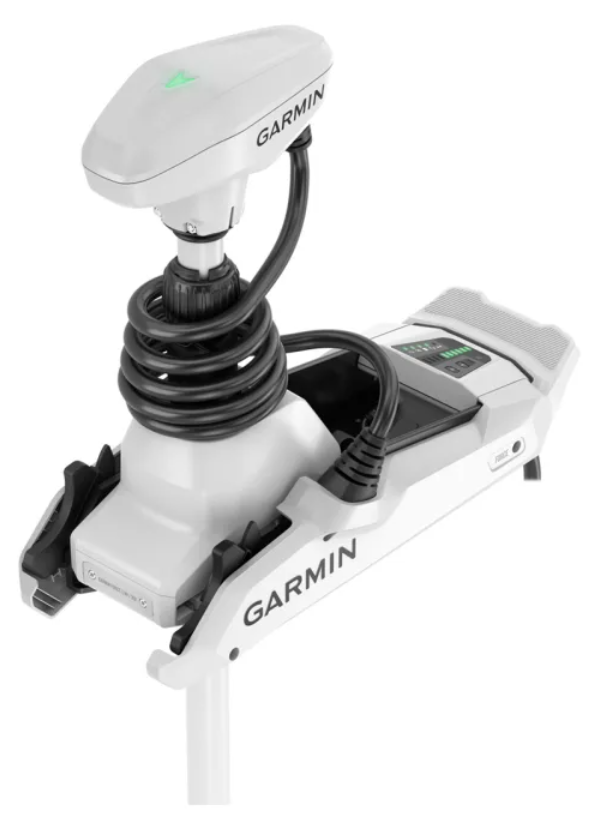

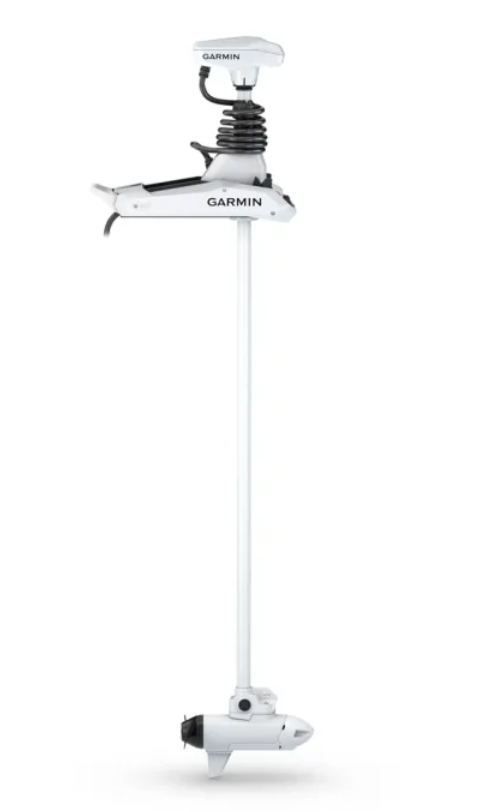

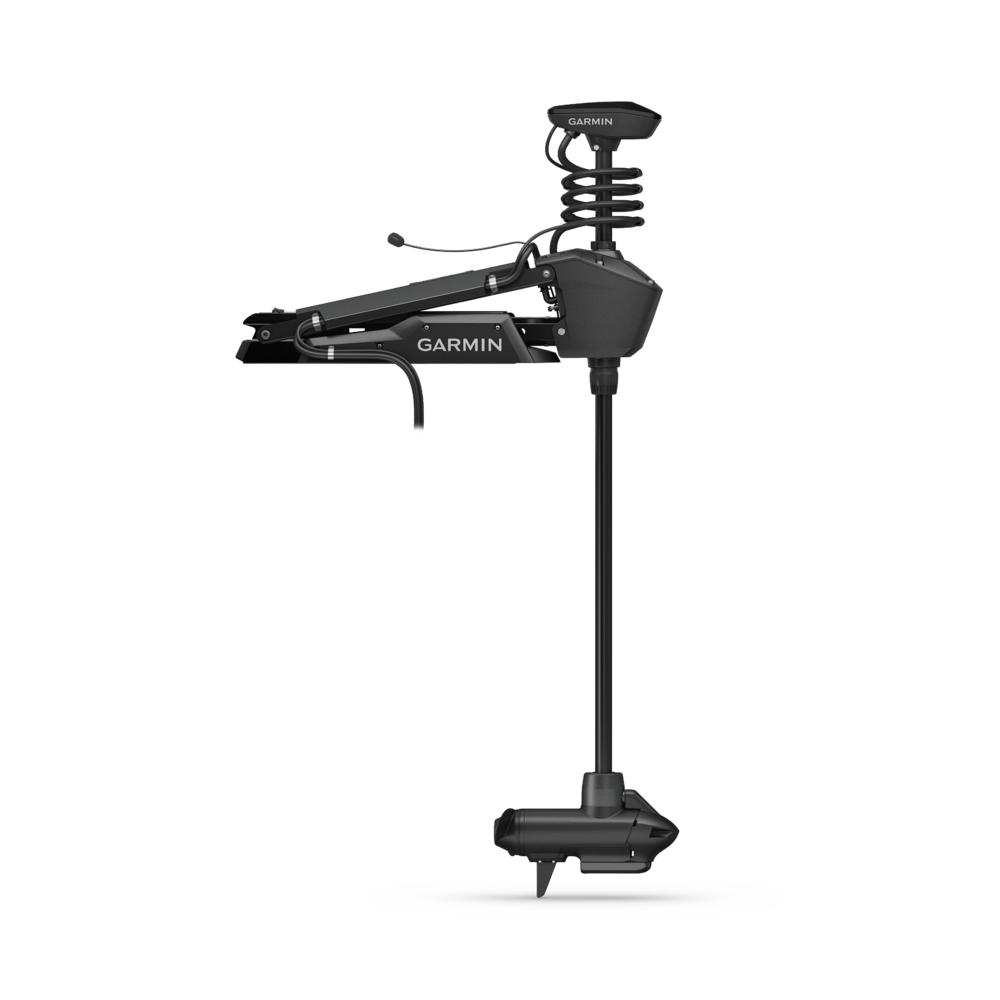

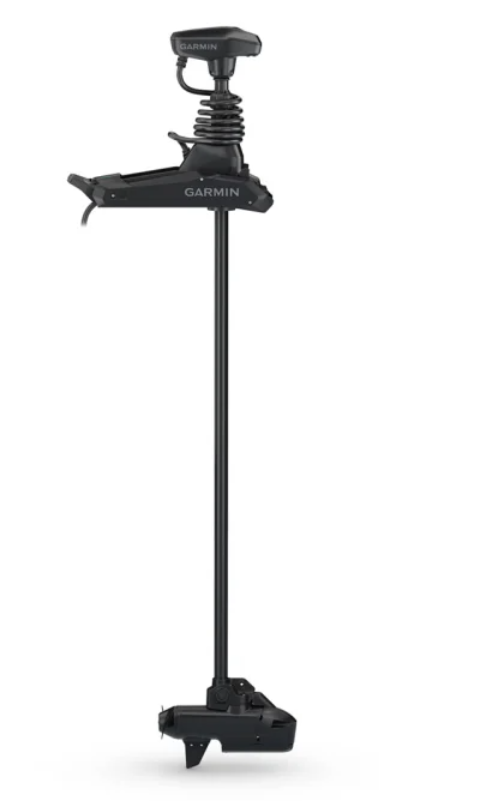

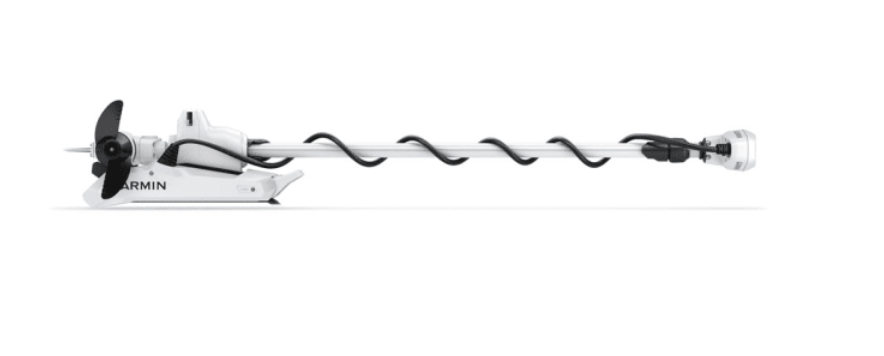

Force® Kraken Trolling Motor - White (63", 75", or 90")

No reviews yet
Bulk Item Bulk Item
Part Number:

THERE'S A NEW LEGEND TO BEHOLD

The Force Kraken trolling motor is engineered with a longer shaft for boats with high freeboards and a pivot-style mount for easy installation in vessels where bow space is limited.

Force Kraken Trolling Motor Highlights:

  • Industry's most powerful trolling motor; 100l lbs of thrust
  • Wireless integration with Garmin Chartplotters
  • Stay on the fish with Anchor Lock and Multi-band GPS
  • Pivot-style mount for easy installation
  • Available in 63", 75", and 90" Shaft lengths
  • Engineered for the harsh saltwater environment

WHAT YOU'LL LOVE

High powered
With 100 lbs of thrust, Force Kraken is the most powerful trolling motor on the market.

Designed to Endure
The sturdy composite shaft and all components are built to endure harsh marine environments and have advanced corrosion and saltwater protection.

Power That Lasts
Efficient brushless motor design has longer run times than brushed motors and allows you to focus on fishing — and not running out of battery.

Purpose-Built Design
This trolling motor is optimised to operate in rough open-water conditions, at either 24 or 36 volts, thanks to the powerful and efficient brushless motor design.

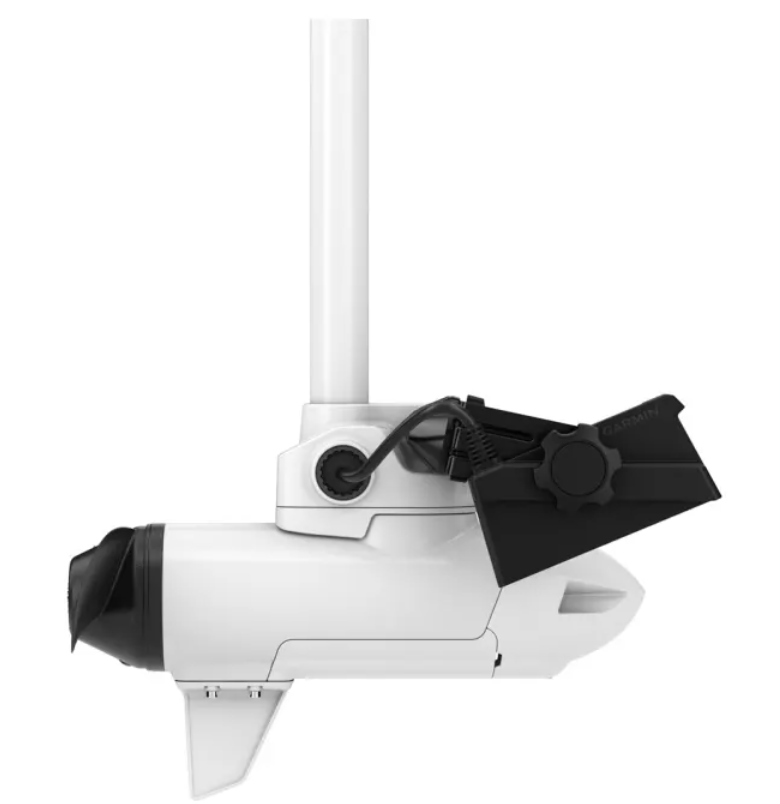

Livescope Sonar Cable Management
Keep your LiveScope sonar cable protected by running the transducer cable through the trolling motor shaft (accessory purchase required).

Perfect for Bay Boats and Center Consoles
Get easy installation where bow space is limited, thanks to the pivot-style mount. The 63″, 75″ and 90″ shaft lengths accommodate many different boat sizes and deck configurations.

TOTAL CONTROL

Stay Put
The anchor lock provides our most precise boat positioning technology to help keep the boat in one place.

Floating Remote
Use the included remote to help you navigate from anywhere in the boat with our simple point -and-go technology.

Smartwatch Integration
Connect your compatible Garmin smartwatch to control steering, anchor lock and more from your wrist.

Wireless Integration
Connect to your compatible chartplotter to create and follow routes for the trolling motor to follow while you fish.

Whisper Quiet
Don’t spook the fish; the motor is extremely quiet above and below the water.

WHAT'S IN THE BOX?

  • Force Kraken Trolling Motor
  • Remote
  • High Efficiency Propeller
  • Assembly and Mounting Hardware
  • Stabiliser (included with 90" only)
  • Documentation
GENERAL FEATURES
Color White
For use in Freshwater, brackish water and saltwater
Water Rating IPX7
Mounting Location Bow
Mount Style Pivot-style mount
Max Thrust 100 lbs per ISO 13342 using high efficiency propeller at 36 V
80 lbs per ISO 13342 using high efficiency propeller at 24 Vdc
Built-in Sensor Yes
Built-in GPS Yes (dual frequency GPS)
Warranty 3-year, limited lifetime on shaft
Wireless Remote Yes (included)
Foot Pedal Compatible Yes
Battery Indicator Yes
Variable Speed Control Yes (20 steps)
Lighted Direction Indicator Yes
Deck Stabiliser Yes (90" only)

ELECTRICAL FEATURES
Voltage 24 V or 36 V
Electric Steering Yes

SONAR FEATURES & SPECIFICATIONS
Depth/Speed/ Temperature Depth and Temperature
Number of Pins 12-Pin (Orange Connector)
Livescope Cable Integration Yes (Livescope transducer and Kraken Mounting Bracket Purchases required)
Quatix Remote Control Supported Yes

AUTOPILOT FEATURES
Route Following Yes
Anchor Lock Yes
Heading Hold Yes
Cruise Control Yes
Gesture Features Yes (Manual+, Heading Hold+, Jog+)

FOOT PEDAL FEATURES
Dimensions 12" x 9" x 4 1/2 LxWxH
Wireless Communication Yes
Power Installation 12V Wired or Battery Powered (2 AA)
AA Battery Life 1 Full Season
Water Rating IPX7
Adjustable Pedal Resistance Yes

REMOTE FEATURES
Display Size 1.2" (30.4 mm) Diameter
Display Resolution 240 x 240 pixels
Display Type Colour, sunlight-visible, transflective memory-in-pixel (MIP)
Chartplotter User-Programmable Keys Yes
Autopilot Feature Control Yes
Water Rating IPX7
Built-in Sensor Yes
Battery Life Typical use with backlight at low, 43.2 weeks
Floats Yes
