Freefall Drum Winch
Freefall Drum Winch
Freefall Drum Winch
Freefall Drum Winch

Freefall Drum Winch

No reviews yet
Bulk Item Bulk Item
Part Number:

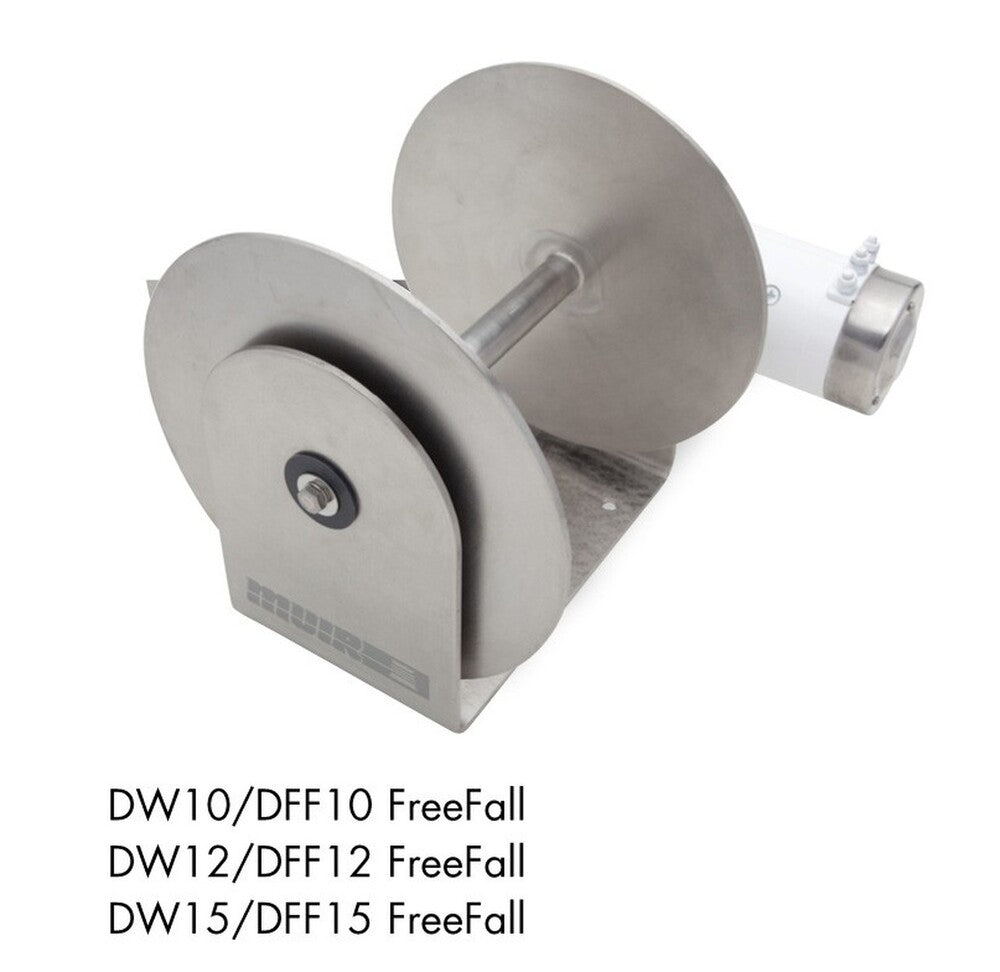

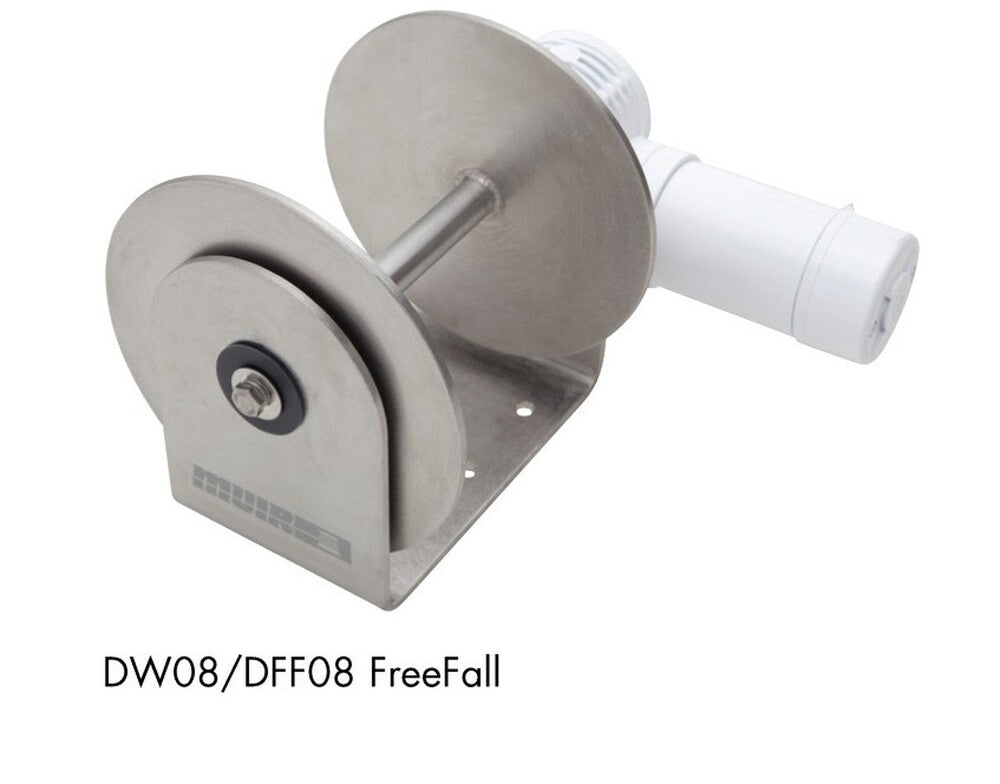

The Muir Freefall Drum winch is a complete compact anchoring system, designed for those with little or no anchor well storage. The drum is made from 316 Marine grade stainless steel, and runs on a serviceable bearing centre for smooth and hassle-free operation.

All Muir freefall drum winches are built with a HDPE and UV protected brake, meaning that there will no over run during free fall operation. All units are supplied with a circuit breaker, reversing solenoid pack and helm control switch kit.

All Muir winches are designed and built in Australia.

Specifications:

MODEL DFF08 DFF10 DFF12 DFF15
VESSEL LENGTH 5-8m 8-10m 10-12m 12-14m
POWER SUPPLY (DC) 12V 12/24V 12/24V 12/24V
MOTOR (WATTS) 600 1000 1200 1500
MAX LOAD 180kg 260kg 312kg 390kg
WORK LOAD 75kg 75kg 90kg 112kg
MAX LINE SPEED 33m/min 33m/min 33m/min 33m/min
CHAIN SIZE (MM) 6 8 8 10
ROPE SIZE (MM) 8 10 12 12
NET WEIGHT 15kg 30kg 32kg 35kg

Package Includes

  • Circuit Breaker
  • Reversing Solenoid
  • Toggle Switch
  • Drum Winch
  • Gear Box/ Motor
