Fusion® Apollo™ Marine Amplifiers

No reviews yet
Part Number:

IT’S THE DIFFERENCE BETWEEN HEARING THE MUSIC AND FEELING IT

These efficient, easy-to-install amplifiers work with your compatible Fusion stereo system1 and let you choose from monoblock, multichannel and zone amplifier options.

  • Keep the music going for longer without draining your battery as quickly.
  • No more manual adjustments to your audio settings. The Easy Tune feature does it for you2.
  • A glance at the LED indicators lets you identify if the amplifiers have a short or if they’re overheating.
  • These amps have less distortion and noise, so you enjoy quality audio.
  • Mounting brackets are included for simple installation.
  • Don’t worry about potential overheating damage with our ignition protection design.

POWER AND EFFICIENCY

The Apollo amplifiers are designed to produce impressive power with less drain on your battery. The monoblock produces 650-watt RMS and the 4/6/8 channel amplifiers produce 150-watt RMS per channel.

EASY TUNE FEATURE

These amplifiers use the Easy Tune feature2, which automatically regulates audio settings. So, you can get the best quality sound without making manual adjustments.

LESS DISTORTION

Some amplifiers distort audio when they add power. Ours are specifically designed with minimal distortion and noise, so you can enjoy high-quality audio, even at higher volumes.

LED INDICATORS

Identify electrical issues at a glance. These indicator lights will show you issues with electrical currents and shorts as well as temperature.

MOUNTING BRACKETS

Easily install the amplifiers on board with the included mounting brackets.

IGNITION PROTECTED

The ignition protected design helps prevent potential damage from overheating.

CONFORMAL-COATED PCBS

The amplifier’s circuit board has been specially coated to provide extra protection from the marine elements.

2 OHM STABLE

You can connect up to two speakers per channel, increasing setup options.

FUSION TRUE-MARINE™ DESIGN

The amplifiers are designed to last season after season. They have been tested to a high level of protection against salt fog, temperature, vibration and UV.

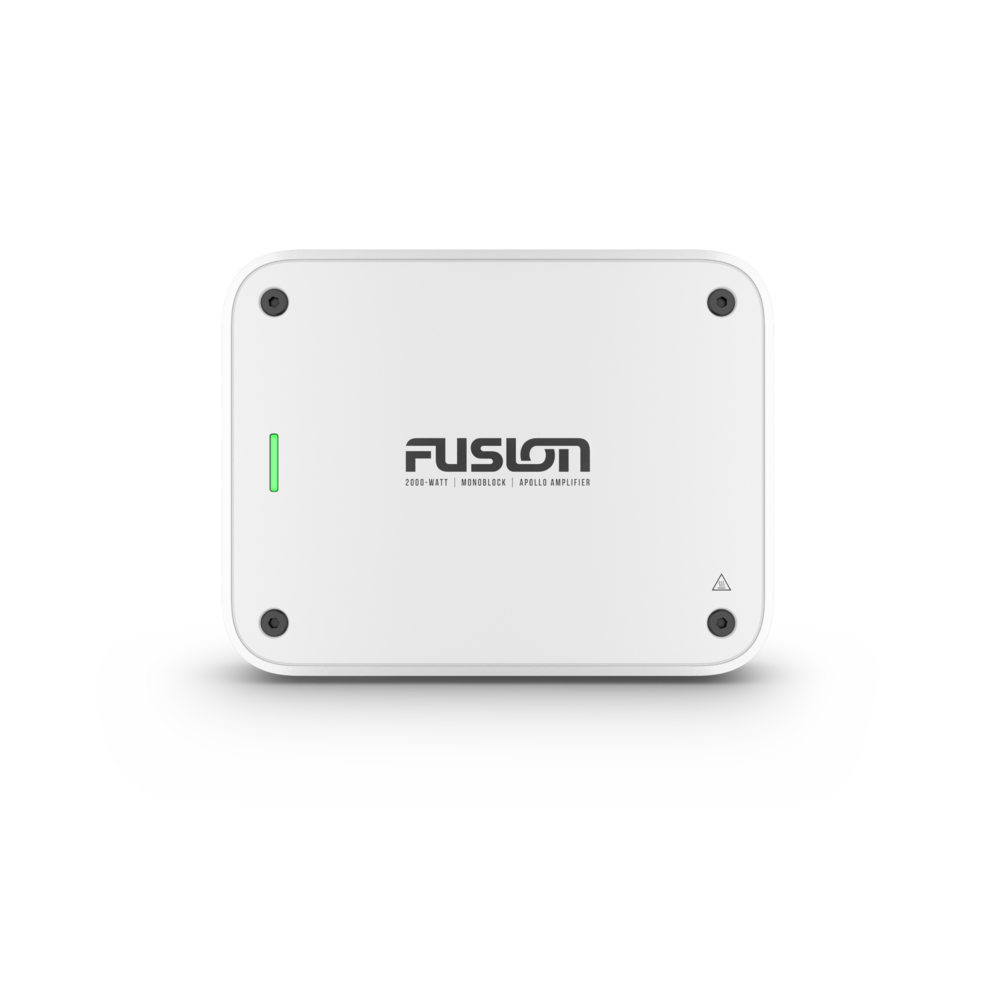

2000-WATT MONOBLOCK AMPLIFIER

Add extra power to your system with this 2000-watt (650-watt RMS) monoblock amplifier that’s specifically designed to power a subwoofer.

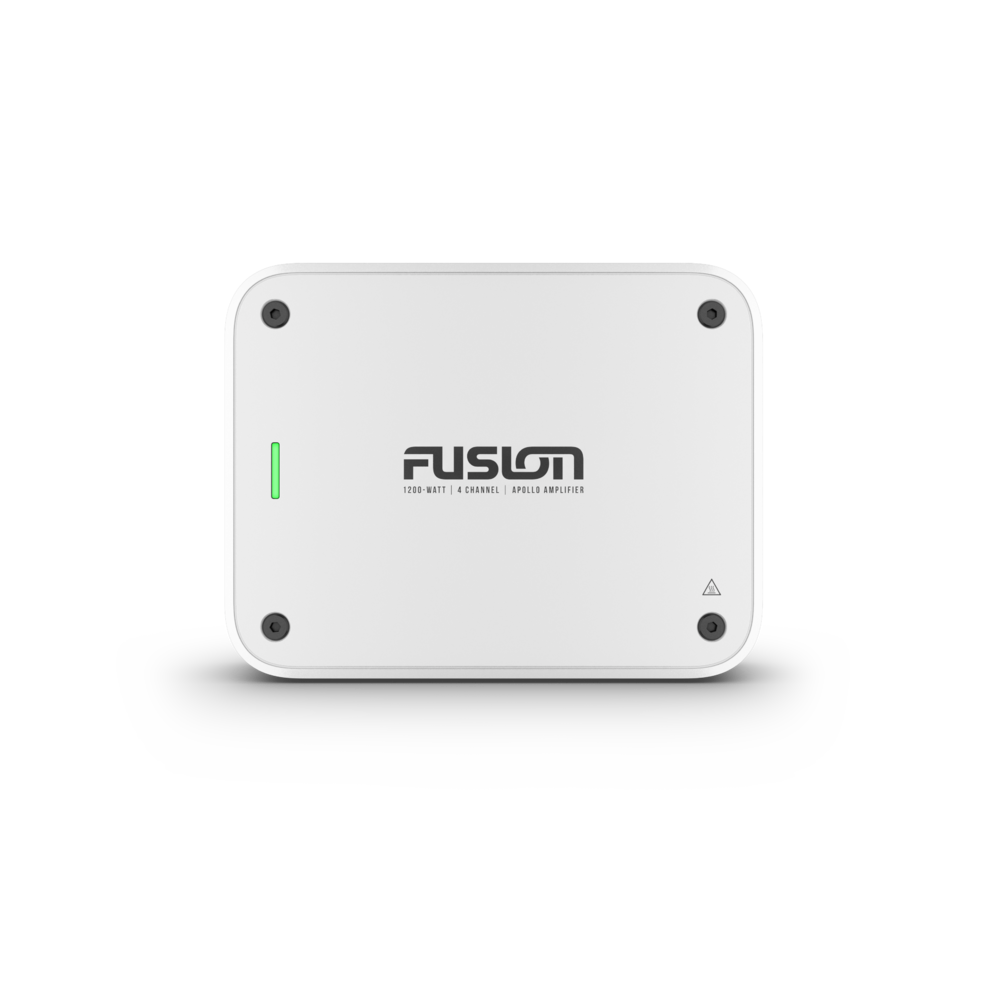

1200-WATT 4 CHANNEL AMPLIFIER

This 4 channel amplifier with 150-watt RMS per channel can power up to four pairs of speakers or two pairs of speakers and one subwoofer. It includes high-power mode adapters for simple bridging to increase power.

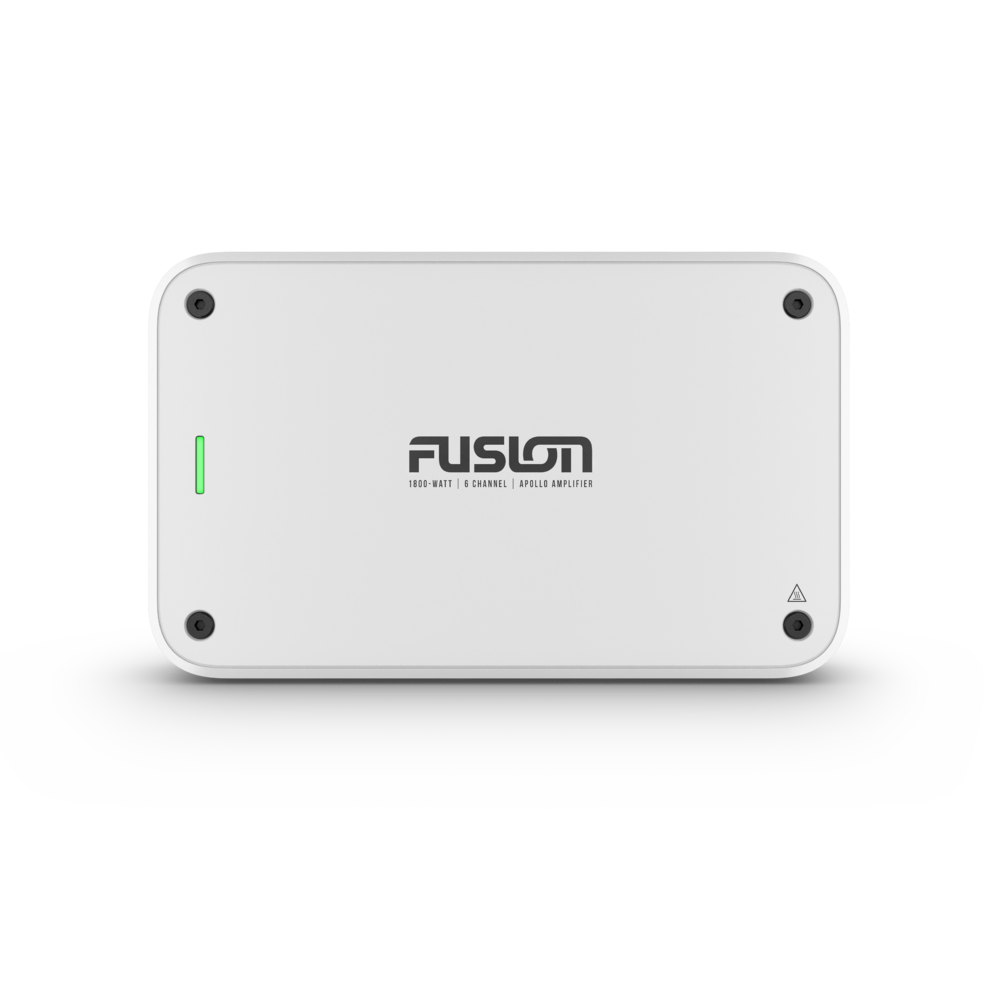

1800-WATT 6 CHANNEL AMPLIFIER

This 6 channel amplifier with 150-watt RMS per channel can power up to six pairs of speakers or four pairs of speakers and one subwoofer. It includes high-power mode adapters for simple bridging to increase power.

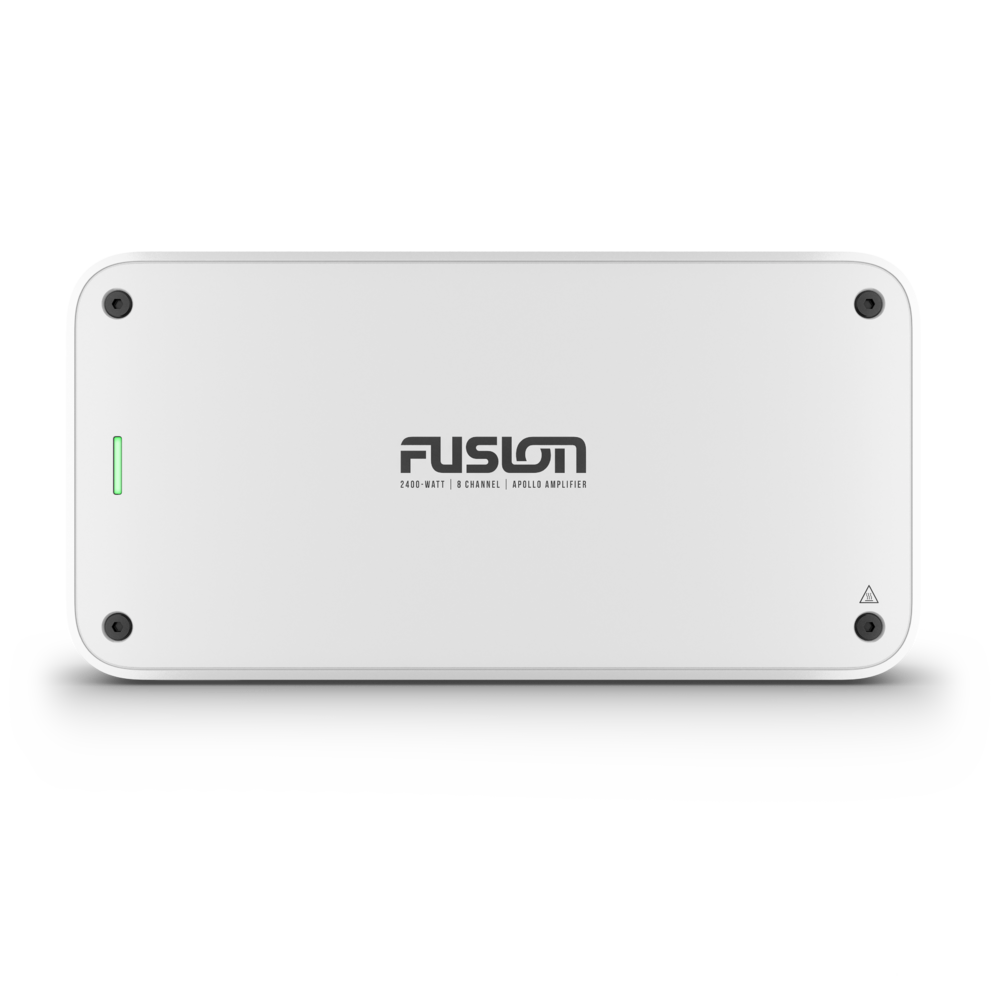

2400-WATT 8 CHANNEL AMPLIFIER

This 8 channel amplifier with 150-watt RMS per channel can power up to eight pairs of speakers or four pairs of speakers and two subwoofers. It includes high-power mode adapters for simple bridging to increase power.

140-WATT ZONE AMPLIFIER

The compact zone amplifier provides audio zone expansion for high-quality sound in more areas on your boat. It’s compatible with 12- and 24-volt electrical systems.



Overview

Physical dimensions without bracket (LxWxH) Monoblock/4 Channel: 9.25″ x 7.06″ x 1.75″ (235 x 180 x 45 mm)

6 Channel: 11.69″ x 7.06″ x 1.75″ (297 x 180 x 45 mm)

8 Channel: 14.13″ x 7.06″ x 1.75″ (359 x 180 x 45 mm)
Physical dimensions with bracket (LxWxH) Monoblock/4 Channel: 9.25″ x 7.06″ x 2.13″ (235 x 180 x 50 mm)

6 Channel: 11.69″ x 7.06″ x 2.13″ (297 x 180 x 50 mm)

8 Channel: 14.13″ x 7.06″ x 2.13″ (359 x 180 x 50 mm)
Weight Monoblock/4 Channel: 4.85 lb (2.2 kg)

6 Channel: 5.95 lb (2.7 kg)

8 Channel: 6.94 lb (3.15 kg)
Water rating Monoblock/4/6/8 Channel: IPX2
Amplifier class Class-D
CEA-2006 power rating Monoblock: 650 watt RMS x 1 @ 14.4 V input - 4 ohm < 1% THD

4 Channel: 150 watt RMS x 4 @ 14.4 V input - 4 ohm < 1% THD

6 Channel: 150 watt RMS x 6 @ 14.4 V input - 4 ohm < 1% THD

8 Channel: 150 watt RMS x 8 @ 14.4 V input - 4 ohm < 1% THD
Total rated power output - 2 Ohm (Watts) Monoblock: 1100 watt RMS x 1 @ 14.4 V input - 2 ohm < 1% THD

4 Channel: 290 watt RMS x 4 @ 14.4 V input - 2 ohm < 1% THD

6 Channel: 290 watt RMS x 6 @ 14.4 V input - 2 ohm < 1% THD

8 Channel: 290 watt RMS x 8 @ 14.4 V input - 2 ohm < 1% THD
Peak power (Watts) 4 Channel: 580 watt RMS x 2 @ 14.4 V input - 4 ohm Bridged < 1% THD

6 Channel: 580 watt RMS x 3 @ 14.4 V input - 4 ohm Bridged < 1% THD

8 Channel: 580 watt RMS x 4 @ 14.4 V input - 4 ohm Bridged < 1% THD
Total rated power output - 4 Ohm Bridged (Watts) Monoblock: 2000 watts

4 Channel: 1200 watts

6 Channel: 1800 watts

8 Channel: 2400 watts
Input sensitivity Monoblock: 2.15 V RMS

4/6/8 Channel: 1.3 V RMS
Input impedance Monoblock/4/6/8 Channel: 22k ohm
Operating voltage Monoblock/4/6/8 Channel: 10.8 V - 16 V DC
Current consumption (StandBy) Monoblock/4/6/8 Channel: < 5 mA @ 14.4 V input
Current consumption (Idle) Monoblock: < 0.89 A @ 14.4 V input

4 Channel: < 1.15 A @ 14.4 V input

6 Channel: < 1.32 A @ 14.4 V input

8 Channel: < 1.60 A @ 14.4 V input
Current consumption (Max) Monoblock: 87 A

4 Channel: 53 A

6 Channel: 78 A

8 Channel: 104 A
Fuse rating Monoblock/6/8 Channel: 125 A electronic fuse (no replacement necessary)

4 Channel: 85 A electronic fuse (no replacement necessary)
Ignition Safety Protected (SAE J1171) Yes
Protection circuits Reverse voltage

Input under/over voltage

Over temperature

Output short circuit
Operating temperature range 0° to 50° C
Warranty

3 years

What's in the Box?

Apollo 4 Channel Amplifier

  • One Apollo 4 channel amplifier
  • One mounting bracket
  • One power connector
  • Two speaker connectors with high power mode adaptors
  • Four 8-gauge, flat head self-tapping screws
  • Four 8-gauge, pan head self-tapping screws (for mounting bracket)
  • Four screw covers
  • Mounting template
  • Installation instructions
  • Important safety and product information (ISPI)

Apollo 6 Channel Amplifier

  • One Apollo 6 channel amplifier
  • One mounting bracket
  • One power connector
  • Three speaker connectors with high power mode adaptors
  • Four 8-gauge, flat head self-tapping screws
  • Four 8-gauge, pan head self-tapping screws (for mounting bracket)
  • Four screw covers
  • Mounting template
  • Installation instructions
  • Important safety and product information (ISPI)

Apollo 8 Channel Amplifier

  • One Apollo 8 channel amplifier
  • One mounting bracket
  • One power connector
  • Four speaker connectors with high power mode adaptors
  • Four 8-gauge, flat head self-tapping screws
  • Four 8-gauge, pan head self-tapping screws (for mounting bracket)
  • Four screw covers
  • Mounting template
  • Installation instructions
  • Important safety and product information (ISPI)
