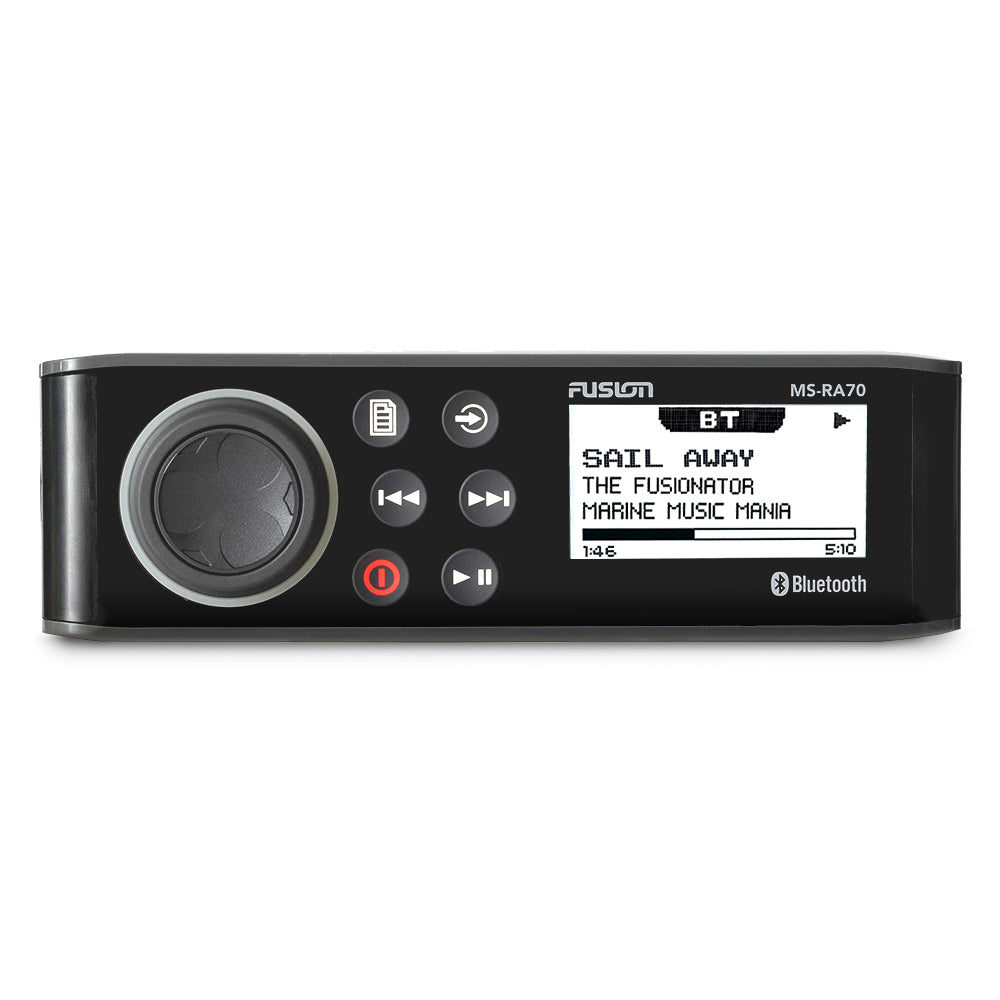

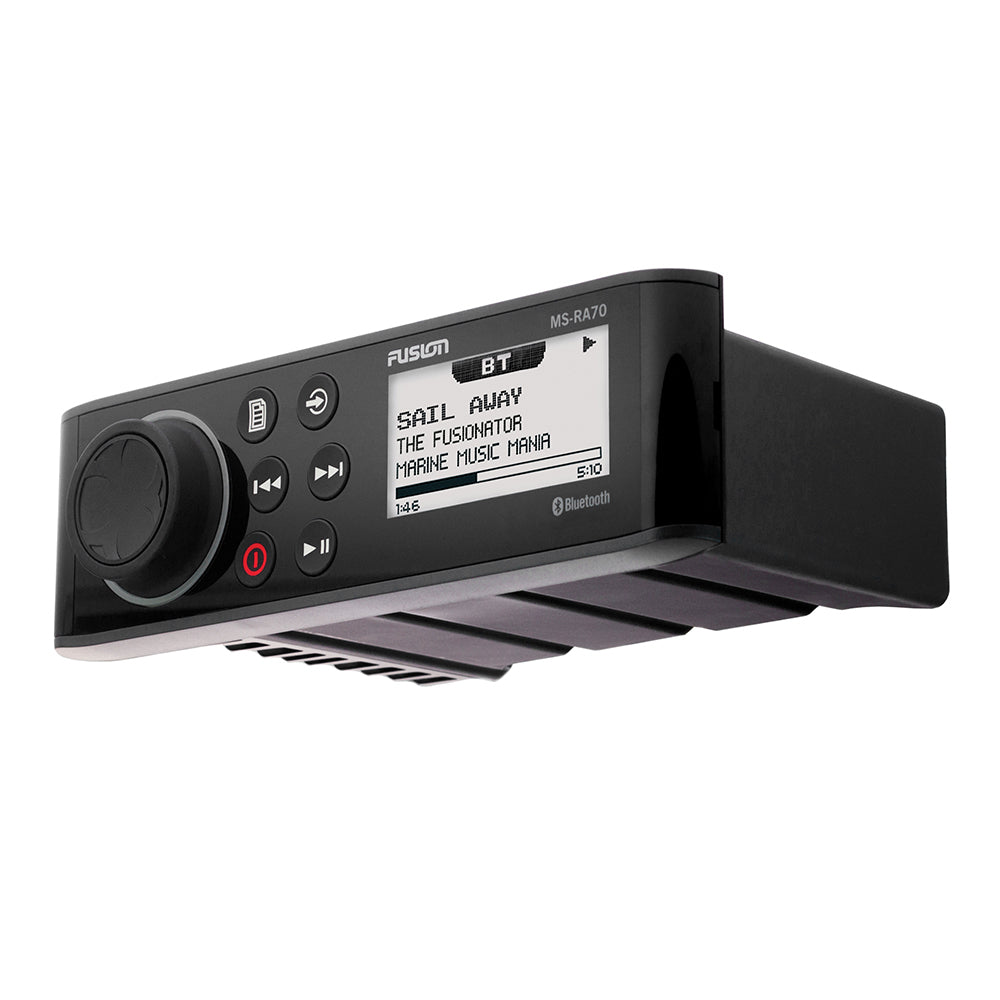

Fusion?? RA70 Series Marine Stereos

No reviews yet
Part Number:
INDUSTRY BENCHMARK FOR MARINE ENTERTAINMENT

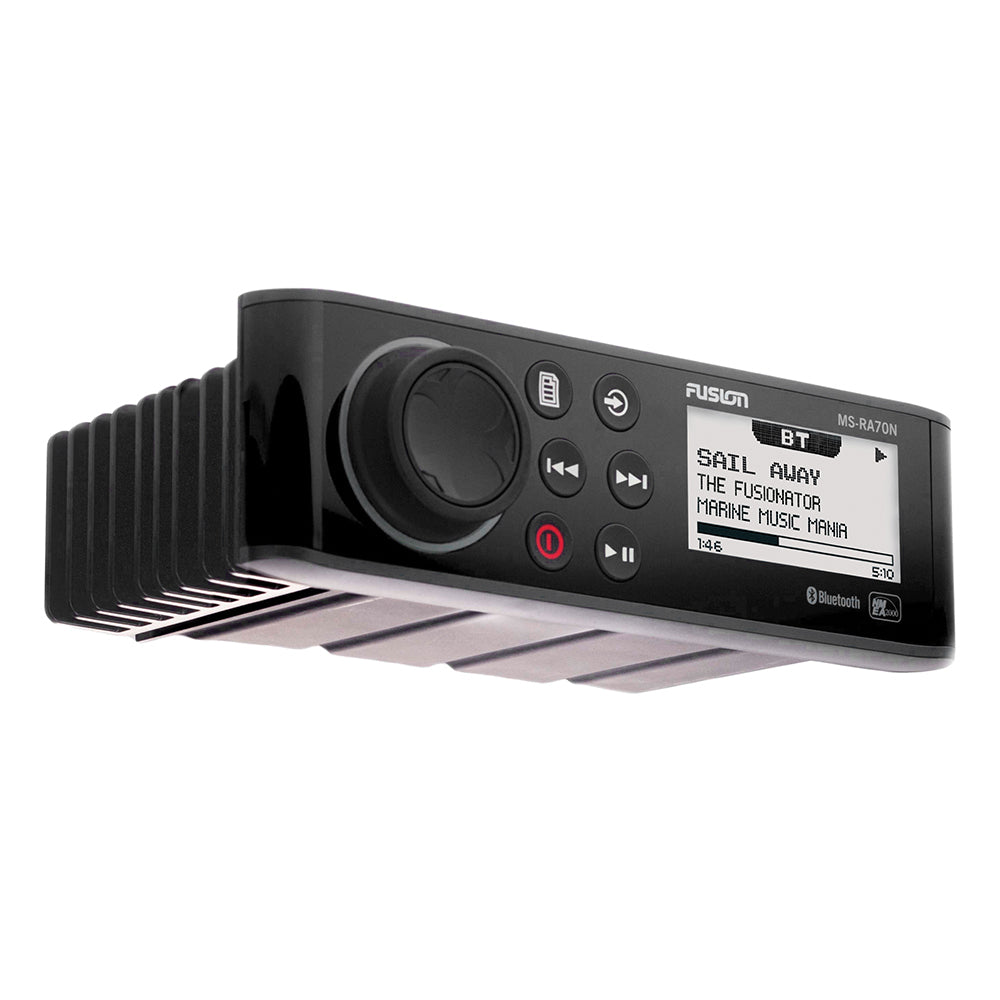

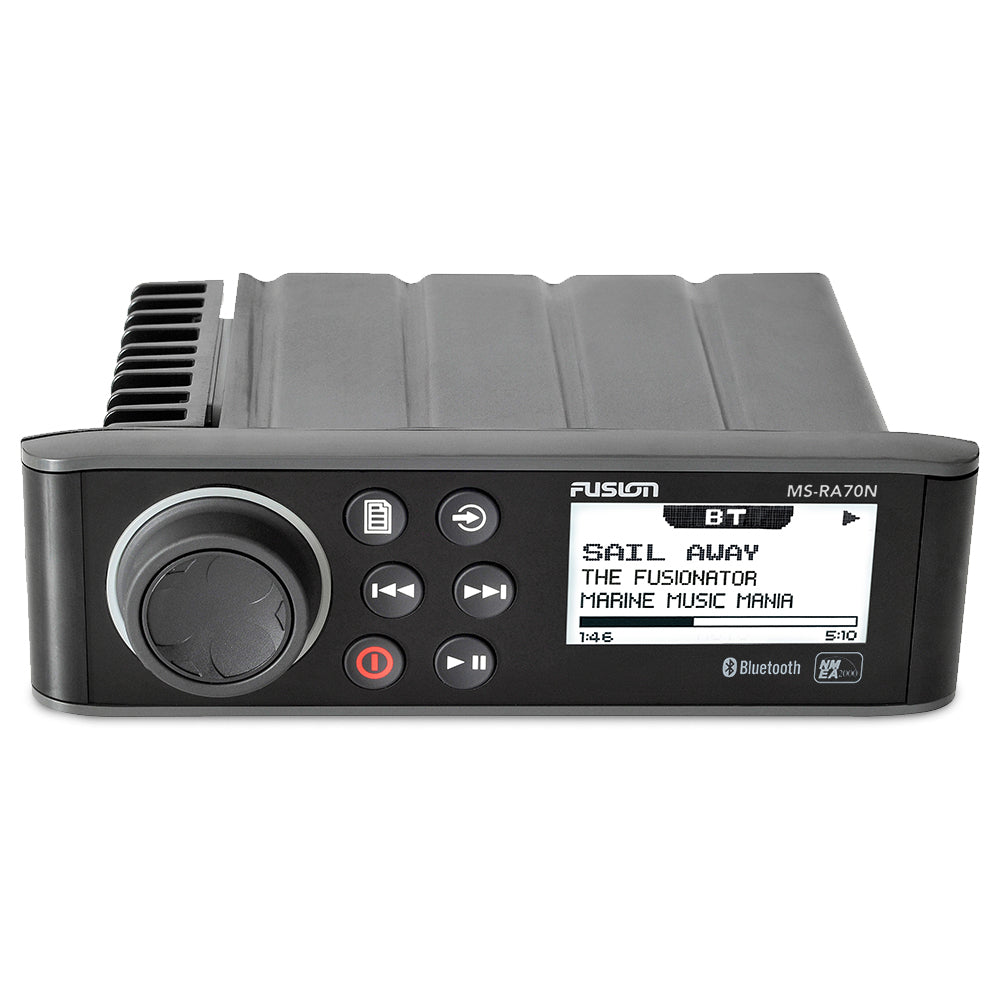

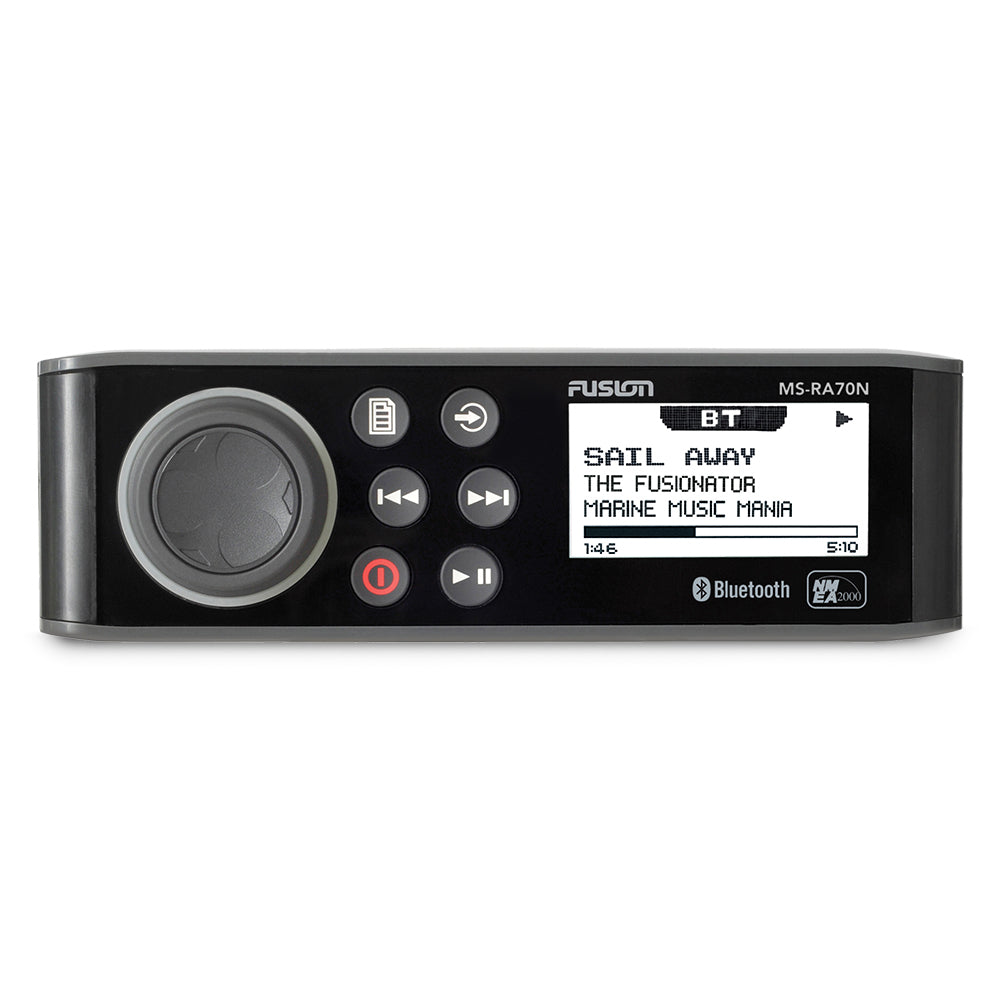

Seamlessly retrofit your existing DIN-sized stereo with a value-packed RA70 Series marine stereo from Fusion®. The RA70 Series includes two marine stereos — MS-RA70 & MS-RA70N.

  • Seamlessly retrofit your existing DIN-sized cutout without needing to reconfigure dash space.
  • Optically bonded monochrome LCD improves screen visibility.
  • Built-in Class-AB amplifier delivers efficiency with reduced distortion.
  • Multi-Zone™ Technology gives you control of two separate audio zones.
  • Control your music from a compatible multifunction display (MFD)1, smart device or Garmin watch.

IPX7 INGRESS PROTECTION
Designed and engineered for the harsh marine environment, the RA70 Series has an IPX7-rated water-resistant front panel to perform and last on board.

MULTIPLE MOUNTING OPTIONS
Install the RA70 Series marine stereo with a conventional flush finish, or integrate it into a glass helm for a stunning flat finish.

FREEDOM OF CHOICE TO LISTEN TO WHAT YOU WANT
Take advantage of the many source options available, including BLUETOOTH® technology, advanced SiriusXM® features2, DAB+ radio3, AM/FM radio, AUX and USB connections.

ADVANCED SIRIUSXM FEATURES AVAILABLE
A selection of advanced features is now available on SiriusXM2.

SPECIFICATIONS
Physical dimensions (HxWxD) 2.36" x 7.40" x 4.87" (60 x 188 x 123.5 mm)
Weight 19.6 oz (556 g)
Water rating IPX7 (front panel only, when properly installed)
Power input 10.8-16 VDC
Operating temperature range 32° to 122° F (0° to 50° C)
Current (max) 15 A
NMEA 2000 LEN 1 (50 mA) (NMEA 2000 MODEL ONLY)
Bluetooth wireless range Up to 30 ft (10 m)
ANT wireless range Up to 10 ft (3 m)
Wireless frequencies/protocols Bluetooth 2.4 GHz @ +1.9 dBm nominal

ANT 2.4 GHz @ +1.9 dBm nominal
Compass-safe distance 5.9" (150 mm)
LP variable crossover frequency Monoblock: 32 Hz - 320 Hz (subwoofer)

4/5/6/8 channels: 32 Hz - 320 Hz
Bass boost 0 dB - 9 dB, user adjustable (zone 3 only)
Operating voltage 10.8 V - 16 V DC
Current consumption (StandBy) < 1 mA @ 14.4 V input
Current consumption (Idle) < 2.5 A @ 14.4 V input
Current consumption (Max) Monoblock: 120 A

4/5 channels: 80 A

6 channel: 75 A

8 channel: 100 A
Fuse rating Monoblock/6 channel: 3 x 40 A ATC blade-type (SAE J1171 compliant)

4/5 channels: 2 x 40 A ATC blade-type (SAE J1171 compliant)

8 channel: 4 x 40 A ATC blade-type (SAE J1171 compliant)
Operating temperature range 32° to 122° F (0° to 50° C)
Warranty 3 years



Stereo Features

STEREO FEATURES
Display 128 x 64 optically bonded monochrome LCD
Built-in amplifier Class-AB
Peak power 200 W
Rated power output (4 Ohm) 26 W rms x 4 @ 14.4 V input < 10% THD
Fusion-Link™ control MS-RA70: yes (smartphone and Garmin watch)

MS-RA70N: yes (MFD, smartphone and Garmin watch)
Multi-Zone™ technology 2 zones
Bluetooth wireless technology yes
ANT wireless technology yes
DAB+ ready MS-RA70 and MS-RA70N only; (requires DAB100A antenna module)
NRX remote compatibility MS-RA70N (NMEA 2000 MODEL ONLY)
Multi-language interface Dutch / English / French / German / Italian / Spanish
Fits DIN-sized cutout yes
Software updates USB
Warranty 1 year



CONNECTIVITY
Auxiliary input One RCA input (AUX)
NMEA 2000 MS-RA70N (NMEA 2000 MODEL) only: 1 port
USB 2.0 1 port
AM/FM radio 1 Motorola antenna connector port
Speaker 2 x speaker connections (2 zone amplified)
RCA Pre-out (left, right and subwoofer) 2 zones (requires external amplification)
Line out 2 (1 x L + R per zone, requires external amplification)
Subwoofer out 1 x mono output (requires external amplification)



What's in the Box?

All RA70 Series stereos contain:

  • DIN mounting plate
  • Four 8-gauge, self-tapping screws
  • Power and speaker wiring harness
  • Auxiliary-in, line-out, and subwoofer-out wiring harnesses
  • Documentation

MS-RA70N (NMEA MODEL ONLY) also includes 6 ft (2 meters) NMEA 2000® drop cable
