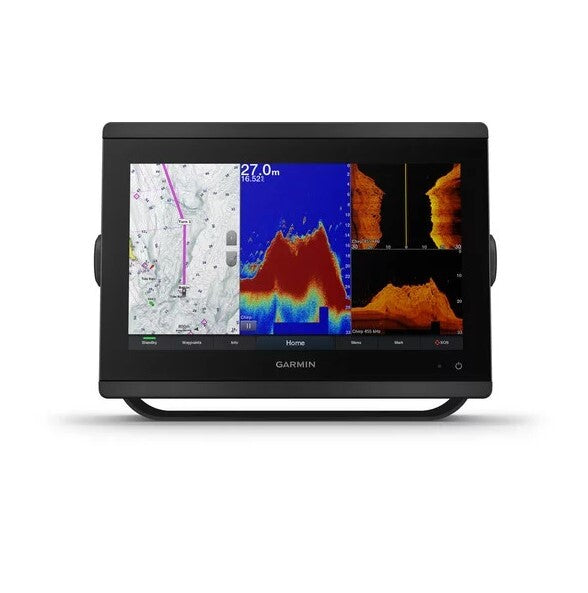

GPSMAP® 8412xsv
GPSMAP® 8412xsv

GPSMAP® 8412xsv

No reviews yet
Part Number:

SERIOUS CRUISERS, SAILORS AND SAIL RACERS DEMAND SERIOUS EQUIPMENT

Build your marine system around these fully networkable units with HD in-plane switching (IPS) touchscreen displays for wider viewing angles, superior clarity and sunlight readability, plus built-in sonar.

  • Get wider viewing angles and superior clarity on the 12” touchscreen with a full HD IPS display.
  • See below and around your boat with built-in sonar capabilities (transducers sold separately).
  • Easily build your marine system using the best of network connectivity.
  • From ANT® technology to Wi-Fi® networking, there are countless ways to connect to your system.
  • Take the guesswork out of sailing with clear laylines and more — right on the screen.
  • With SmartMode™ station controls, everything is designed to give you quick, one-touch access to the information you need.

HD IPS Display with Touchscreen

This large 12” display offers wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses.

Simple, Attractive Mounting Options

You can install multiple displays, either flat mounted edge-to-edge for a sleek glass helm look or mounted flush — creating a stunning helm.

GRID™ 20 Remote Control

The optional, easy-to-use GRID 20 remote input device provides intuitive remote access and control of your entire Garmin marine system.

Traditional and Scanning Sonar Support

Get built-in support for 1-kW CHIRP traditional sonar for superior target separation and ClearVü and SideVü scanning sonars to see up to 1,000’ below and around your boat at 260 kHz (transducer sold separately).

Panoptix™ Sonar Support

Pair your chartplotter with Panoptix or Panoptix LiveScope™ easy-to-interpret live sonar (transducer sold separately) to see all around your boat in real time.

Garmin Marine Network

If you have multiple Garmin devices on your boat, you can share information — such as maps, user data, radar and IP cameras — among them.

NMEA 2000® and NMEA 0183 Networks

Connect to autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS and more from one screen.

ActiveCaptain® App

Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications1, software updates, Garmin Quickdraw™ Community data and more.

Integrated Bluetooth® and ANT Technologies

Connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls.

OneHelm™ Feature

This exclusive feature brings together all the operations and capabilities of third-party devices, such as EmpirBus™ digital switching, on one screen.

Smartmode Station Controls

Get quick, one-touch access to the information you need to ease high-stress situations such as docking. You can incorporate networked sonar, radar, cameras, media and more.

Engine Connectivity

Connect this chartplotter to different kinds of engines — including select Mercury and Yamaha® models — to see RPMs, fuel flow, temperature, trim and other important information at a glance. You may need additional hardware, so be sure to check with your engine manufacturer.

Garmin Sailassist™ Sailing Features

View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed and more.

Optional Bluechart® G3 Vision Charts

These optional charts offer the best of Garmin and Navionics® data, Auto Guidance technology2 and other premium navigation features.

General

Physical dimensions

11.9" x 8.5" x 3" (30.3 cm x 21.6 cm x 7.6 cm)
Water rating

IPX7
Mounting options Bail, flat or flush (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.)
Antenna

Internal or external over NMEA 2000
Receiver

10 Hz GPS/GLONASS/Galileo
Display size

10.1" x 5.7"; 11.6" diagonal (25.7 cm x 14.5 cm; 29.5 cm diagonal)
Display resolution

FHD; 1920 x 1080 pixels
Weight

6.2 lbs (2.8 kg)
Display type

touchscreen IPS display (anti-glare finish)
Power Consumption

3.1 A
Transmit Power

1 kW traditional; 1 kW CHIRP
Polarised Support ✓
Garmin Marine Network Ports 2

Maps & Memory

Accepts data cards

2 microSD cards (on back)
Waypoints 5,000
Track log

50,000 points; 50 saved tracks
Routes 100 (250 waypoints each)

Outdoor Recreation

Tide Tables

✓

Chartplotter Features

Garmin Radar Compatible

✓

Garmin Sonar Compatible

Yes
Garmin SmartMode Compatible (customizable monitor pre-sets)

✓

Supports AIS (Tracks Target Ships Position)

✓
Supports DSC (Displays Position Data From DSC-Capable VHF Radio)

✓
Supports Fusion-Link Compatible Radios

✓

GSD™ Black Box Sonar Support ✓
GCV™ Black Box Sonar Support

✓
ActiveCaptain Compatible ✓
Wireless Remote Compatible ✓

Sonar Features & Specifications

Dual-Frequency (50/200 KHZ) Sonar Capable ✓
Dual-Beam (77/200 KHZ) Sonar Capable

✓
ClearVü Yes
Frequencies Supported

Traditional: 50/200, 77/200, 83/200

Single Channel CHIRP: 40-250

Dual Channel CHIRP: 40-250

SideVü/ClearVü: CHIRP 260/455/800

Ultra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz

Ultra High-Definition SideVü: 1.2 MHz (1,200 kHz), CHIRP range: 1,020-1,230 kHz

(dependent on transducer)
Maximum Depth

5,000 ft (1524 m) at 1kW

(depth capacity is dependent on water bottom type and other water conditions)

Connections

NMEA 2000® Compatible

✓

Transducer Pin Numbers 1 – LVS sonar, 1 – 12 pin scanning sonar, 1- 8 pin sonar
NMEA 0183 Input Ports

1 differential
NMEA 0183 Output Ports 1 differential
Wireless Connectivity Yes
J1939 Compatible ✓
Additional

Supports spoken audio alerts

In the Box:

  • GPSMAP 8412xsv
  • Power cable
  • NMEA 2000® drop cable
  • NMEA 2000 T-connector
  • Bail mount with knobs
  • Flush mount kit
  • Sun cover
  • Trim piece snap covers
  • Documentation
