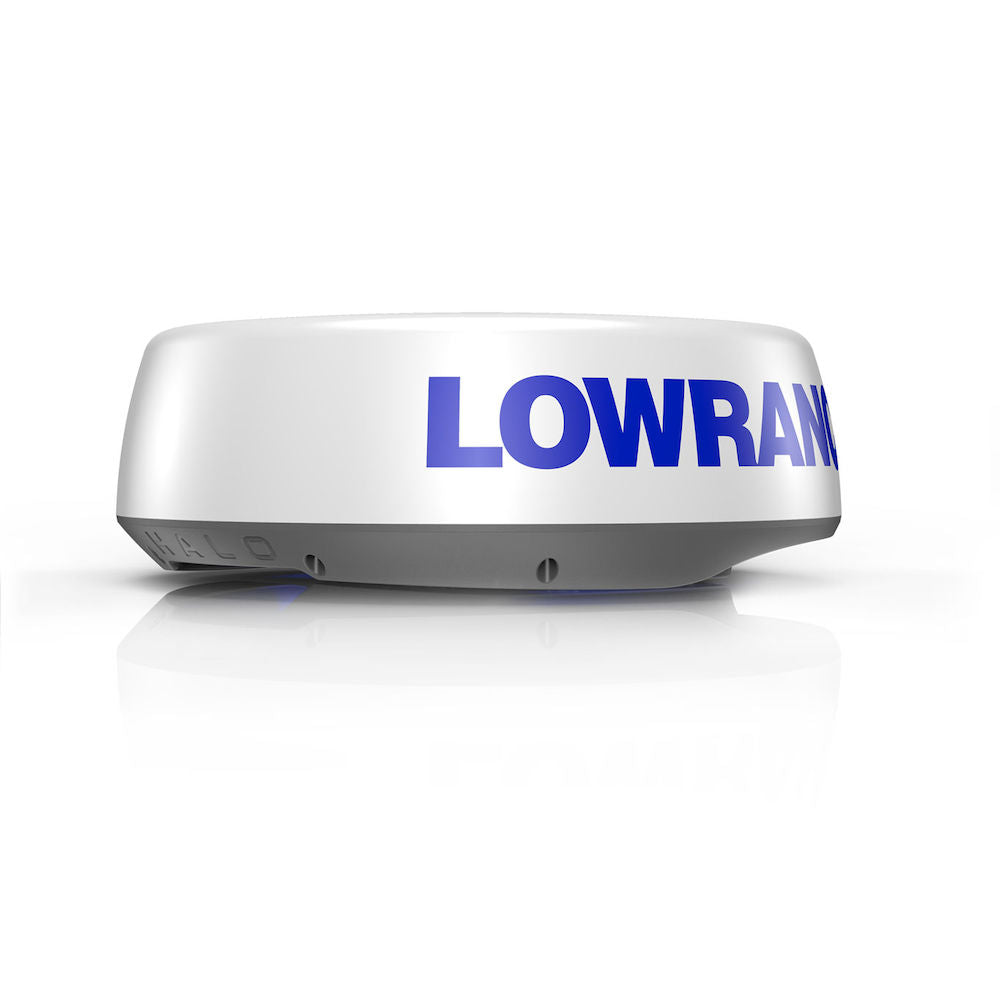

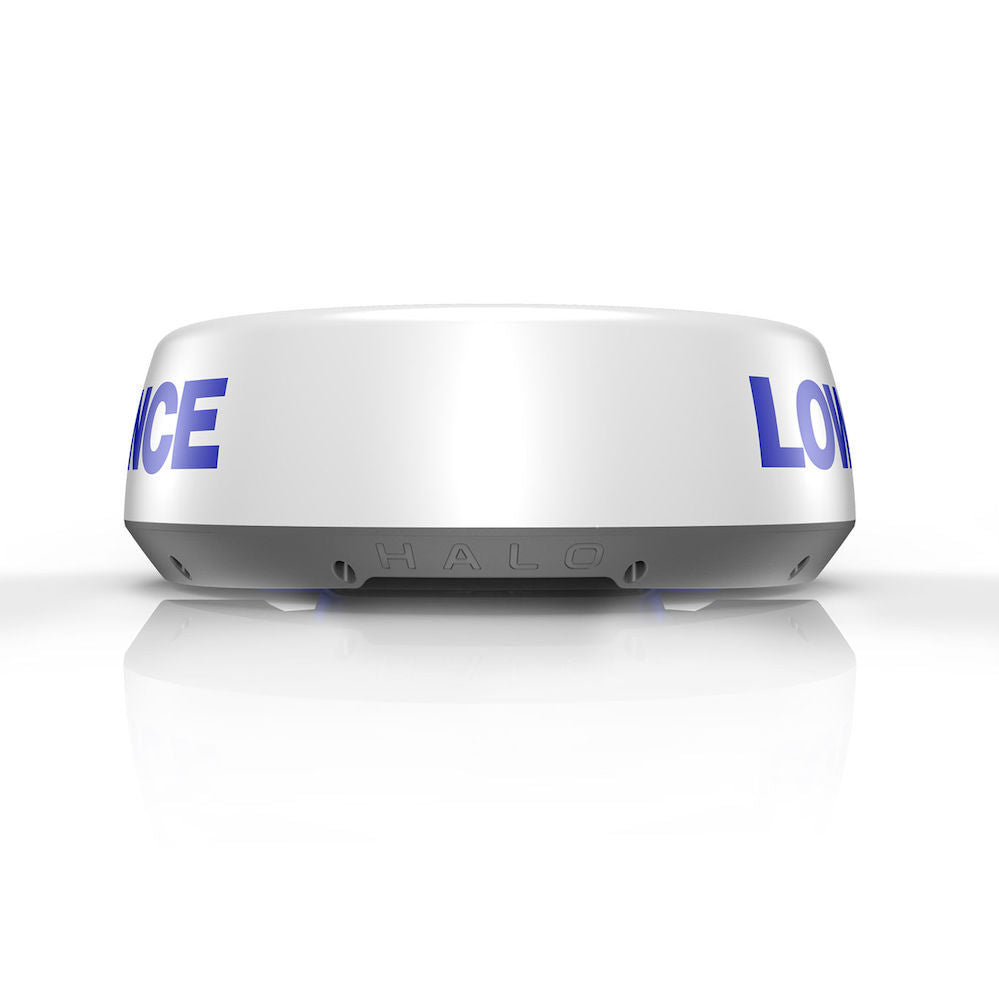

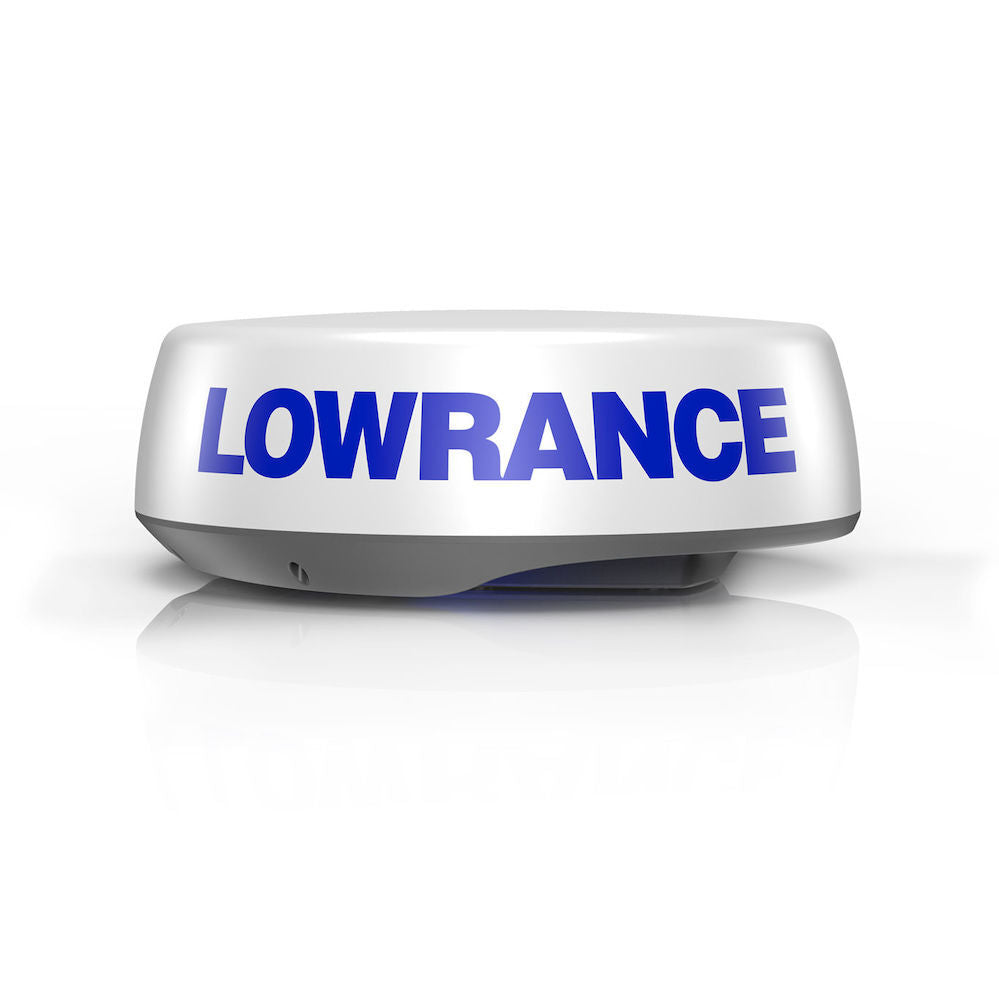

Halo 24 Radar
Halo 24 Radar
Halo 24 Radar
Halo 24 Radar
Halo 24 Radar
Halo 24 Radar

Halo 24 Radar

No reviews yet
Bulk Item Bulk Item
Part Number:

See Near and Far with One Compact Dome
Perfect for a wide range of coastal bay boats, HALO24 comes in a compact dome antenna and delivers high-quality short, mid, and long-range detection. Monitor two distance ranges at once in Dual Range mode which enables you to keep an eye on far away weather cells while watching for collision hazards up close. HALO24 radar’s pulse compression technology means no compromises in detection at either selected range, while beam sharpening provides enhanced separation between small or distant targets.

The Ultimate View for Collision Avoidance
HALO24 radar delivers a full 360 degree sweep every second, thanks to its industry-first 60 RPM rotation at ranges up to 1.5 nautical miles. These ultra-fast updates give you an almost real-time view at close range, offering the ultimate view for collision avoidance.

VelocityTrack™ Doppler Technology Built-In
VelocityTrack™ technology provides instant visual feedback on whether targets are coming towards you or moving away. Simple color coding highlights potential hazards, improving your situational awareness and further reducing your risk of collision. HALO24 radar automatically checks every target in range; there’s no need to manually select individual targets, and no limit to the number of targets on screen simultaneously.

Ready When You Are
HALO24 radar wakes instantly from its low-power standby mode, delivering this high-speed radar coverage exactly when and where you need it. Even if your HALO24 radar is completely powered down start-up is a matter of seconds, not minutes like traditional pulse radar. Whether you’re navigating through crowded waterways or contending with poor visibility, HALO24 radar immediately cuts through the clutter to give you a clear and current picture of your surroundings.

Features:

  • 48 nm range from a compact 24-inch dome
  • Advanced pulse compression technology with beam sharpening
  • Simultaneous Dual Range operation sees both near and far
  • Ultra-fast 60 RPM operation at ranges up to 1.5 nm
  • VelocityTrack™ Doppler technology for collision avoidance
  • Easy operation with harbour, offshore, weather, and bird modes
  • MARPA target tracking (up to 10 targets, 20 in dual range)
  • Ready instantly from standby
  • Compatible with HDS Gen3, HDS Carbon and HDS LIVE (NOS 18.2 or higher required for all ranges. Please note HDS Gen3 and HDS Carbon have the following feature restrictions: Dual Range, Full Control of Rotation Speed, Compatibility with Simrad Halo Open Array and True Motion Trails

Specifications:

SPECIFICATIONS
CONNECTIVITY
Ethernet Ports 100 Base T
APPROVALS
Approvals Compliance FCC, Part 47 CFR 80 and 90: RED, Article 3 of Directive 99/5/EC: CE: EN, EN302-248 V2.1.1: Industry Canada, RSS238: RCM (C-Tick): IEC60945 Sec 9.2,9.3, 10.3-10.9, 11.2: IEC60950 Electrical Safety
ELECTRICAL
Power Consumption max 29W
Power Consumption typical 20W
Recommended Fuse Rating 5A
Supply Voltage 10.5 - 31.2 VDC
(12/24V systems)
ENVIRONMENT
Humidity 95% RH at 35°C (95°F)
Operating Temperature Range -25° to + 55°C (-13° to +130°F)
Waterproof rating IPX6
PHYSICAL
Dimensions
(W x H x D)
610mm dia x 225 mm H.
(24" dia x 8.9" H)
Weight 6.75 kg (14.9 lbs) without cable
RADAR
Beam Width 3.9° H nonminal (-3dB) 2° with target separation on high x 22° V
Max Range, Scale 48 NM
Max Wind Speed 100 knots
(51 m/s)
Min Range, Scale 50 m / 200 ft / 50 yards
Radar Modes Harbour, Offshore, Weather, North Up, Course Up, Relative Motion, True Motion
Radar Technology Pulse Compression
Rotation Speed Up to 60 RPM (Range Dependent)
OTHER
Interface Lowrance MFD
Warranty Period 2 Years
