Hinges - Cast Stainless Steel

No reviews yet
Part Number:

Features:

  • Cast 316G stainless steel.
Part No. Description Length Width Shape Barrel

Height		 No. Mount Holes Mount

Screws		 Type Split Leaf

Thickness		 Note

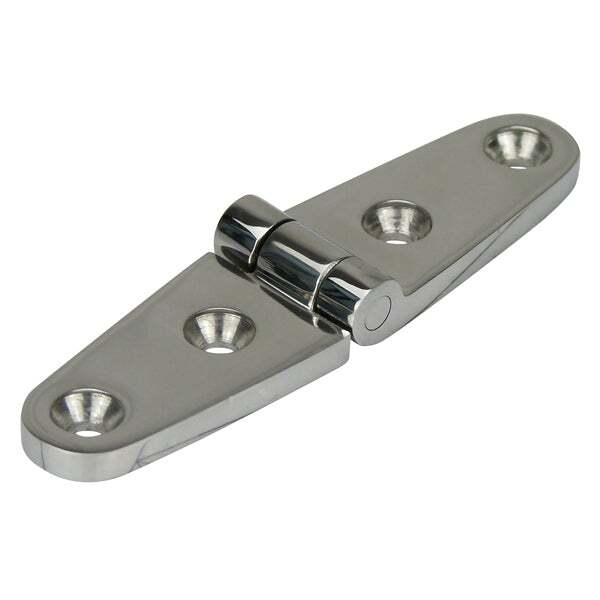

29730 Hinge Cast 316G S/S Strap 100mm Pair 104mm 26mm Trangle 10mm 4 5mm c/s Cast S/S 52mm / 52mm 5mm Sold in pairs.

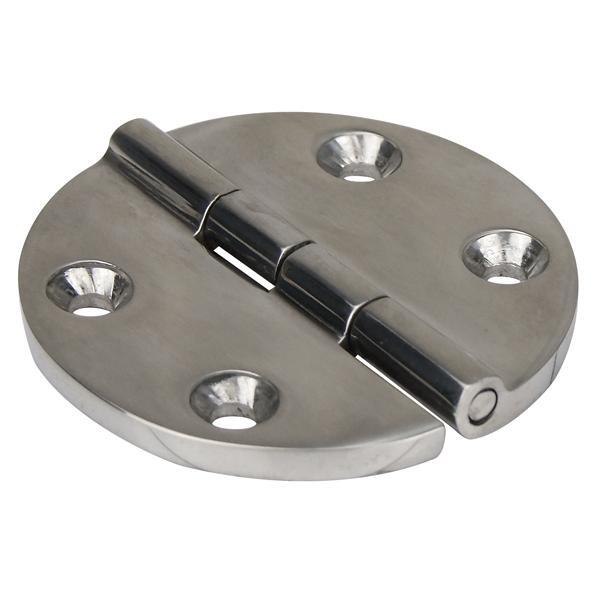

29731 Hinge Cast 316G S/S Round 65mm x 65mm Pair 65mm 65mm Round 8mm 4 5mm c/s Cast S/S 32.5mm / 32.5mm 4mm Sold in pairs.

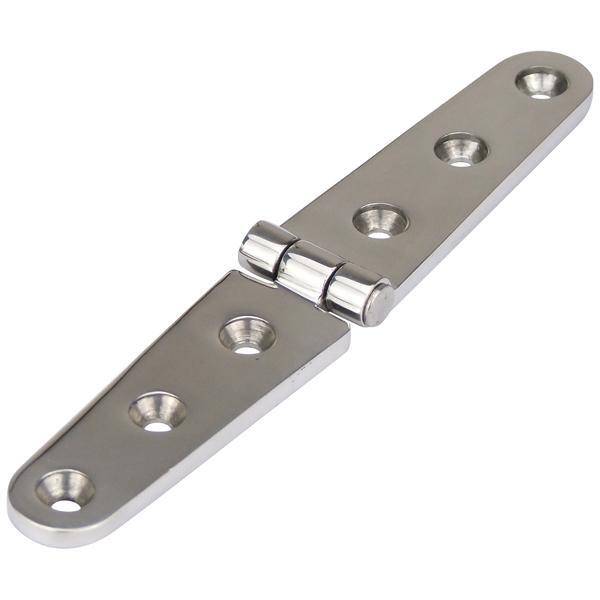

29732 Hinge Cast 316G S/S Strap 150mm Pair 154mm 26mm Trangle 10mm 6 5mm c/s Cast S/S 77mm / 77mm 5mm Sold in pairs.

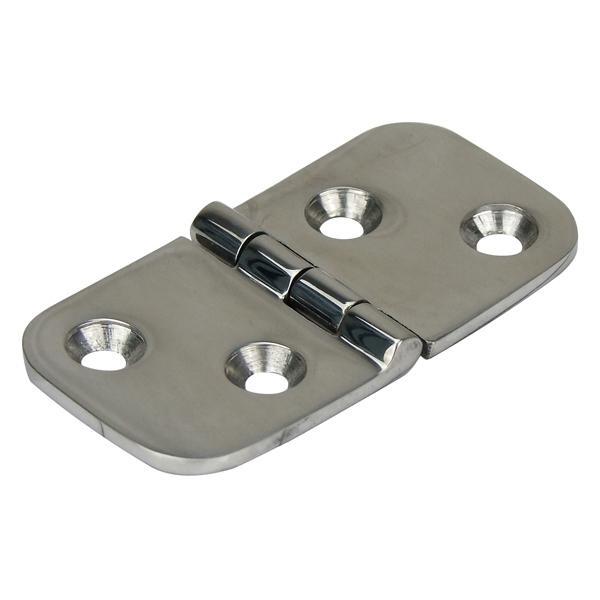

29874 Hinge Cast 316G S/S 62mm x 32mm x 2.5mm Pair 62mm 32mm Oval 5mm 4 4mm c/s Cast S/S 31mm / 31mm 2.5mm Sold in pairs.
29876 Hinge Cast 316G S/S 105mm x 32 mm x 2.5mm Pair 105mm 32mm Trangle / Uneven 5mm 4 4mm c/s Cast S/S 73mm / 32mm 2.5mm Sold in pairs.

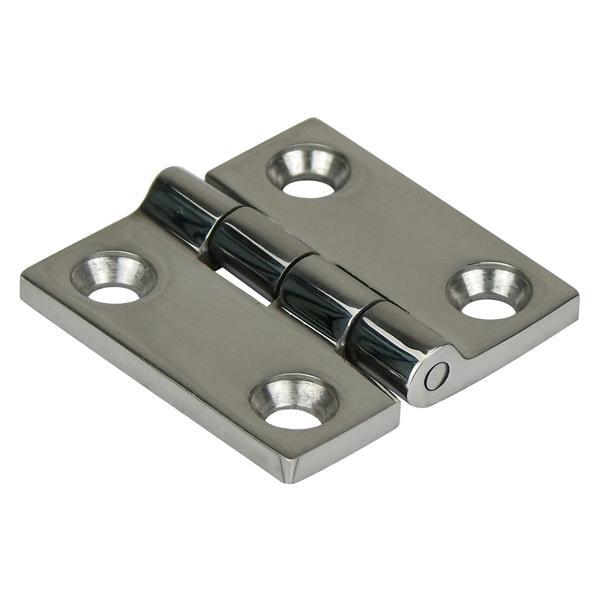

29911 Hinge Cast 316G S/S 38mm x 38mm Pair 38mm 38mm Square 7mm 4 5mm c/s Cast S/S 19mm / 19mm 3mm Sold in pairs.
29912 Hinge Cast 316G S/S 50mm x 50mm Pair 50mm 50mm Square 10mm 4 5mm c/s Cast S/S 25mm / 25mm 3mm Sold in pairs.

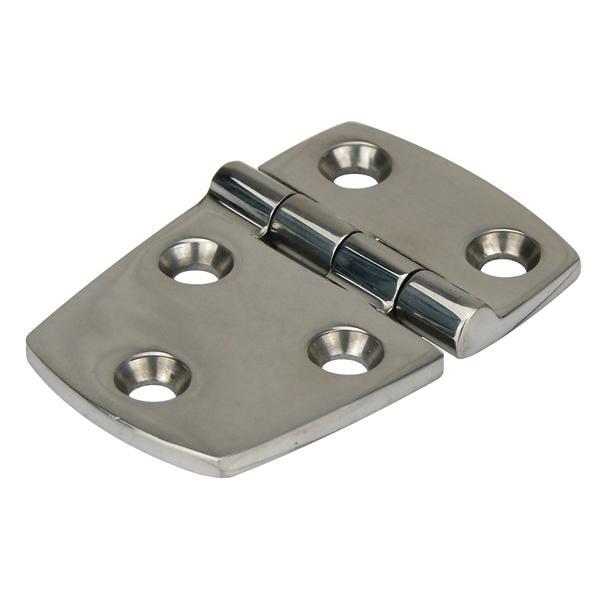

29915 Hinge Cast 316G S/S 60mm x 38mm Pair 60mm 38mm Trapezoid / Uneven 7mm 5 5mm c/s Cast S/S 20mm / 40mm 3mm Sold in pairs.
29916 Hinge Cast 316G S/S 38mm x 76mm Pair 76mm 38mm Trapezoid / Uneven 10mm 5 5mm c/s Cast S/S 20mm / 55mm 3mm Sold in pairs.

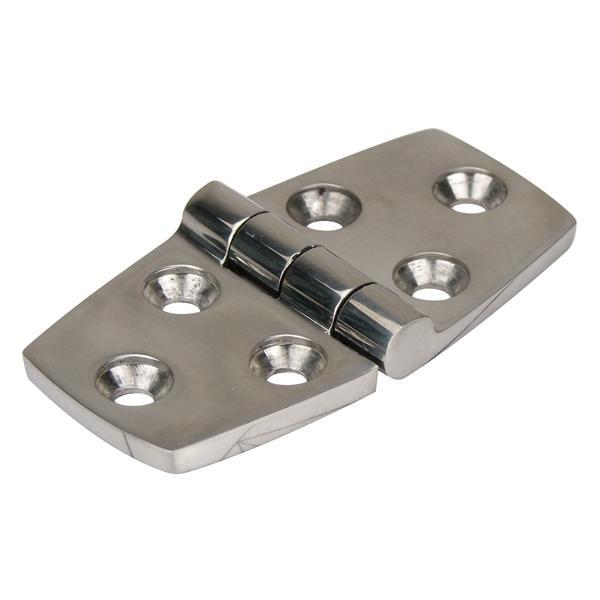

29917 Hinge Cast 316G S/S 76mm x 38mm Pair 76mm 38mm Trapezoid 7mm 6 5mm c/s Cast S/S 38mm / 38mm 3mm Sold in pairs.
29918 Hinge Cast 316G S/S 104mm x 38mm Pair 104mm 38mm Trapezoid 8mm 6 5mm c/s Cast S/S 52mm / 52mm 4mm Sold in pairs.

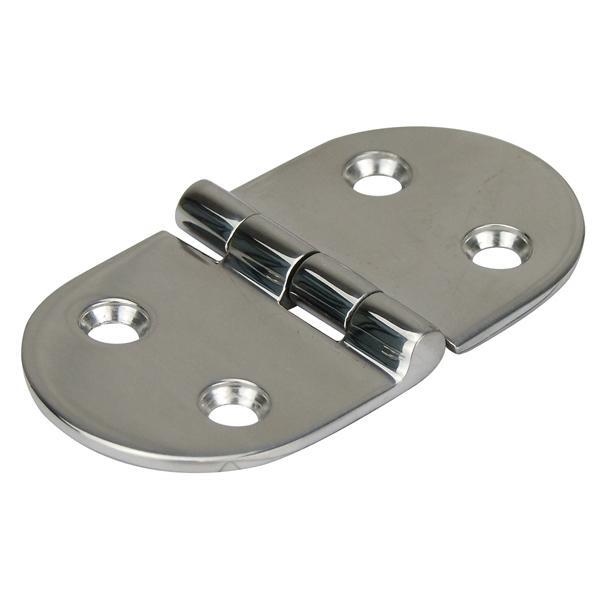

29980 Hinge Cast 316G S/S Oval 75mm x 38mm Pair 75mm 38mm Oval 6mm 4 5mm c/s Cast S/S 37.5mm / 37.5mm 2mm Sold in pairs.
