i40 Series

No reviews yet
Part Number:

Compact Digital Displays

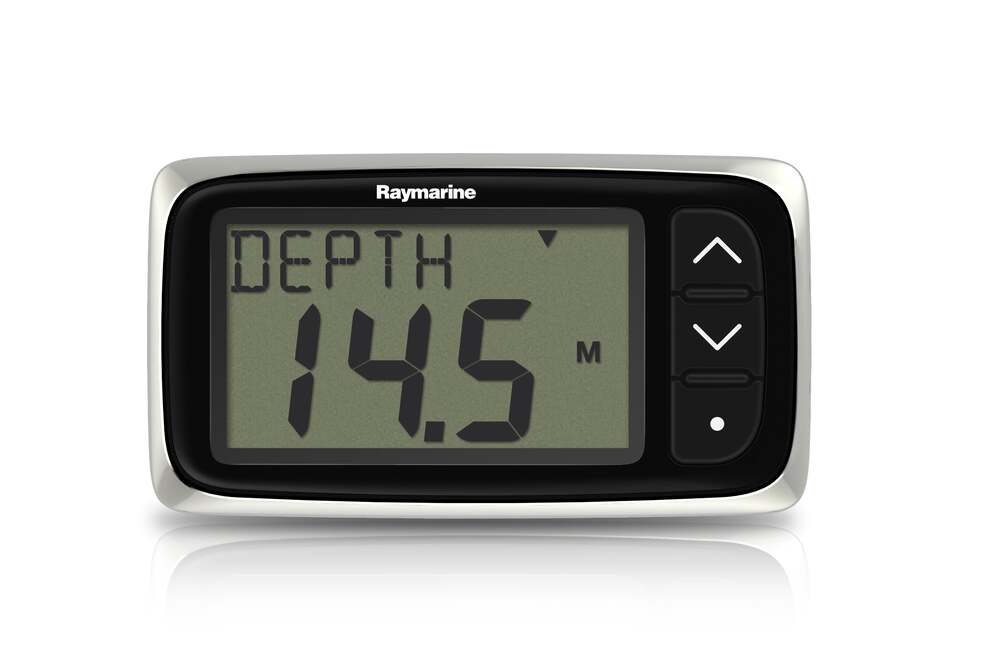

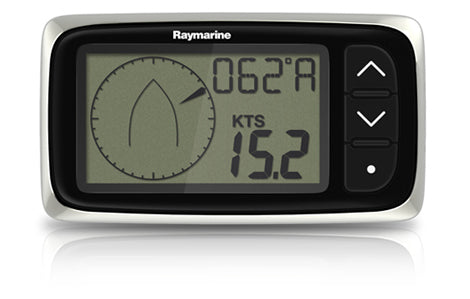

Big displays for smaller powerboats, yachts and RIBs, these compact yet powerful SeaTalk instrument displays offer full integration with Raymarine autopilots and navigation equipment and can be surface or trunnion mounted.

Extra large (28mm max) digits and razor sharp LCDs - easy to use Raymarine i40 instrument displays have outstanding visibility in all lighting conditions.

Features:

  • Red backlighting for improved visibility
  • Large controls for ease of use at sea
  • Low power consumption for increased battery life.
  • SeaTalk interface (SeaTalkng when used with SeaTalk converter)
  • Built-in transducer interface
  • Same footprint as the older Raymarine ST40 instrumentation
  • Shows current, maximum and average boat speed, log trip and sea temperature
Part Number E70063 ; E70064 ; E70065 ; E70066
Description Raymarine i40 Display System
GENERAL SPECIFICATIONS
Models Available Speed Depth Wind Bidata
Display only part numbers: E70063 E70064 E70065 E70066
Nominal voltage 12V DC
Operating voltage range 10 - 16V DC
Current consumptions (12V supply) typical Speed and Wind: 25mA

Depth: 30mA

Bidata: 35mA
Current consumptions (12V supply) maximum 100 mA
Operating temperature 0ºC to +55ºC
Storage temperature -30ºC to +70ºC
Relative humidity up to 93%
Water proofing IPX6
Connections SeaTalk, Transducer connections

Compatible with marine industry CAN systems
Conformance Europe 2004/108/EC
