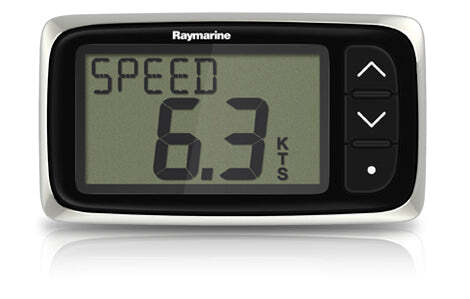

I40 Speed Pack Speed/Temp With Transducer
I40 Speed Pack Speed/Temp With Transducer
I40 Speed Pack Speed/Temp With Transducer
I40 Speed Pack Speed/Temp With Transducer
I40 Speed Pack Speed/Temp With Transducer
I40 Speed Pack Speed/Temp With Transducer

I40 Speed Pack Speed/Temp With Transducer

No reviews yet
Part Number:

Big displays for smaller powerboats, yachts and RIBs, these compact yet powerful SeaTalk instrument displays offer full integration with Raymarine autopilots and navigation equipment and can be surface or trunnion mounted.

Extra large (28mm max) digits and razor sharp LCDs - easy to use Raymarine i40 instrument displays have outstanding visibility in all lighting conditions.

Features:

  • Red backlighting for improved visibility
  • Large controls for ease of use at sea
  • Low power consumption for increased battery life.
  • SeaTalk interface (SeaTalkng when used with SeaTalk converter)
  • Built-in transducer interface
  • Same footprint as the older Raymarine ST40 instrumentation
  • Shows current, maximum and average boat speed, log trip and sea temperature
Part Number Speed
E70063
Depth
E70064
Wind
E70065
BiData
E70066
Nominal voltage 12V DC
Operating voltage range 10 - 16V DC
Current Consumptions
(12V supply) Typical
Speed and Wind: 25mA | Depth: 30mA | Bidata: 35mA
Current Consumptions
(12V supply) Maximum
100 mA
Operating Temperature 0ºC to +55ºC
Storage Temperature -30ºC to +70ºC
Relative Humidity up to 93%
Water Proofing IPX6
Connections SeaTalk, Transducer connections. Compatible with marine industry CAN systems
Conformance Europe 2004/108/EC


Instrument transducers accurately and reliably record a range of data to be displayed on the respective devices. From depth, speed and temperature readings to navigation data, Raymarine has an instrument transducer to suit your boating requirements are.

The ST300, speed and temperature sensor, is low in price and short in size. As part of our Shorty™ Series, it is designed for boats with limited headroom. The P371, low-profile, housing option is nearly flush and minimizes drag with only 5 mm (3/16") extending outside of the hull. The P398 countersunk housing mounts flush, eliminating turbulence for more accurate speed readings.

The ST69 is the ultimate, high-speed, transom-mounted sensor. The paddlewheel and housing do not project below the hull which minimizes spray and drag. And the design protects the sensor from damage by beaching, trailering or objects in the water.

Part Number E26008 E26005
Material Bronze Urethane
Max Depth (Ft) N/A
Frequency (KHz) N/A
Beam Width N/A
Records Speed, Temperature
Hull Material Fibreglass / Metal Fibreglass / Metal / Wood
Cable Length (Ft/M) 30 / 9
Deadrise Angles 0-22° 3-16°
