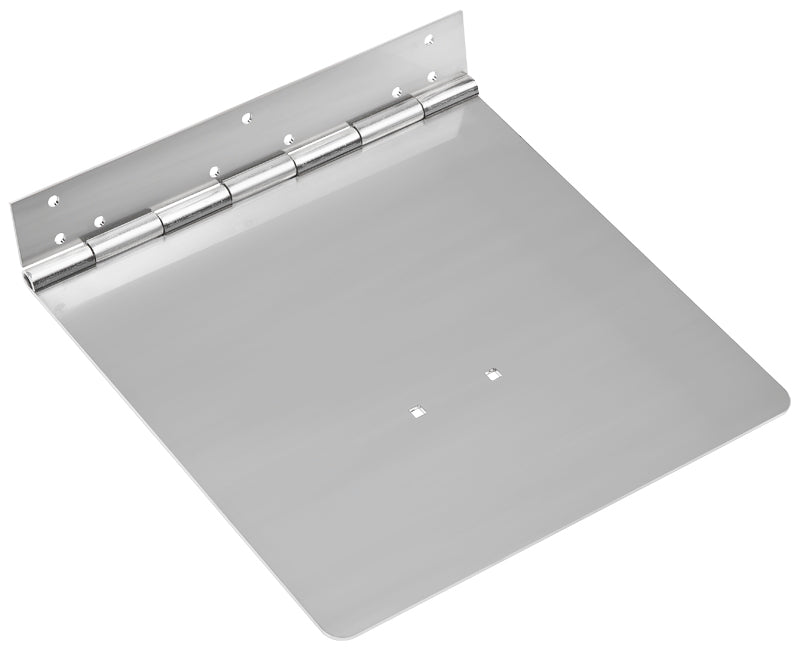

Stainless Steel Trim Tabs
The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. The design eliminates the need for welding. The tabs are made of corrosion resistant 12 gauge, 304 stainless steel.

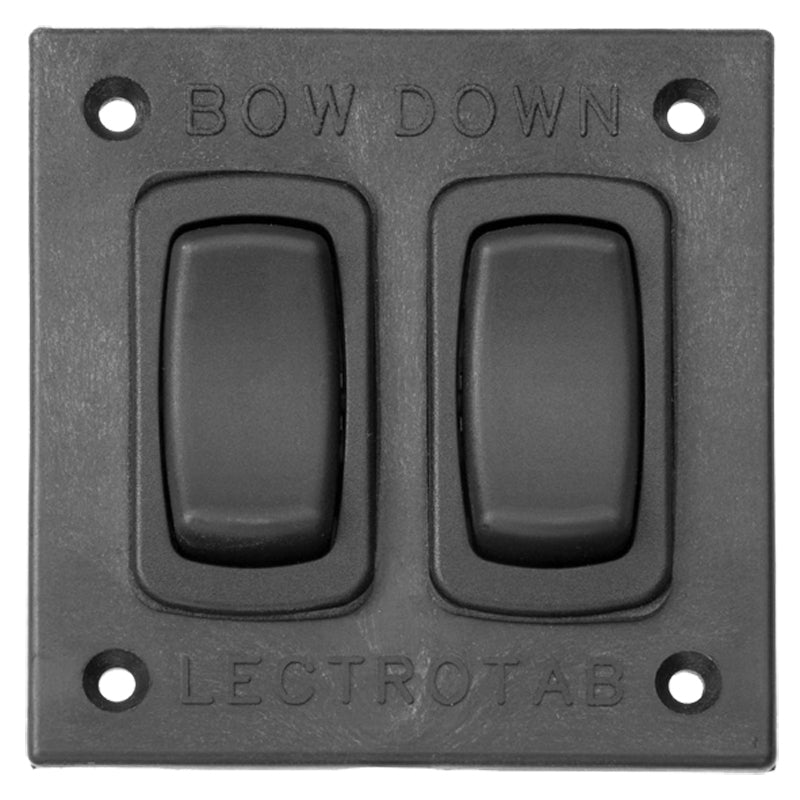

Standard Switch Assembly
This kit comes with the Lectrotab Standard switch assembly. The rocker switch performs all standard trim tab control functions. They are specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run. The gasket sealed switch is designed to prevent water entry. The control switch is self-contained and does not require an additional control box. Dimensions: 80mm x 83mm.

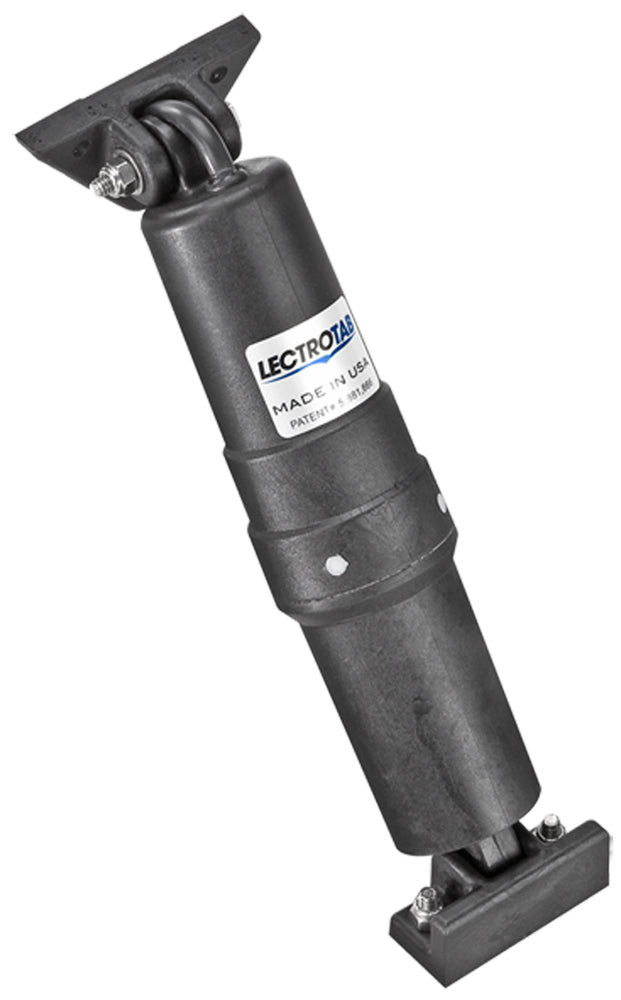

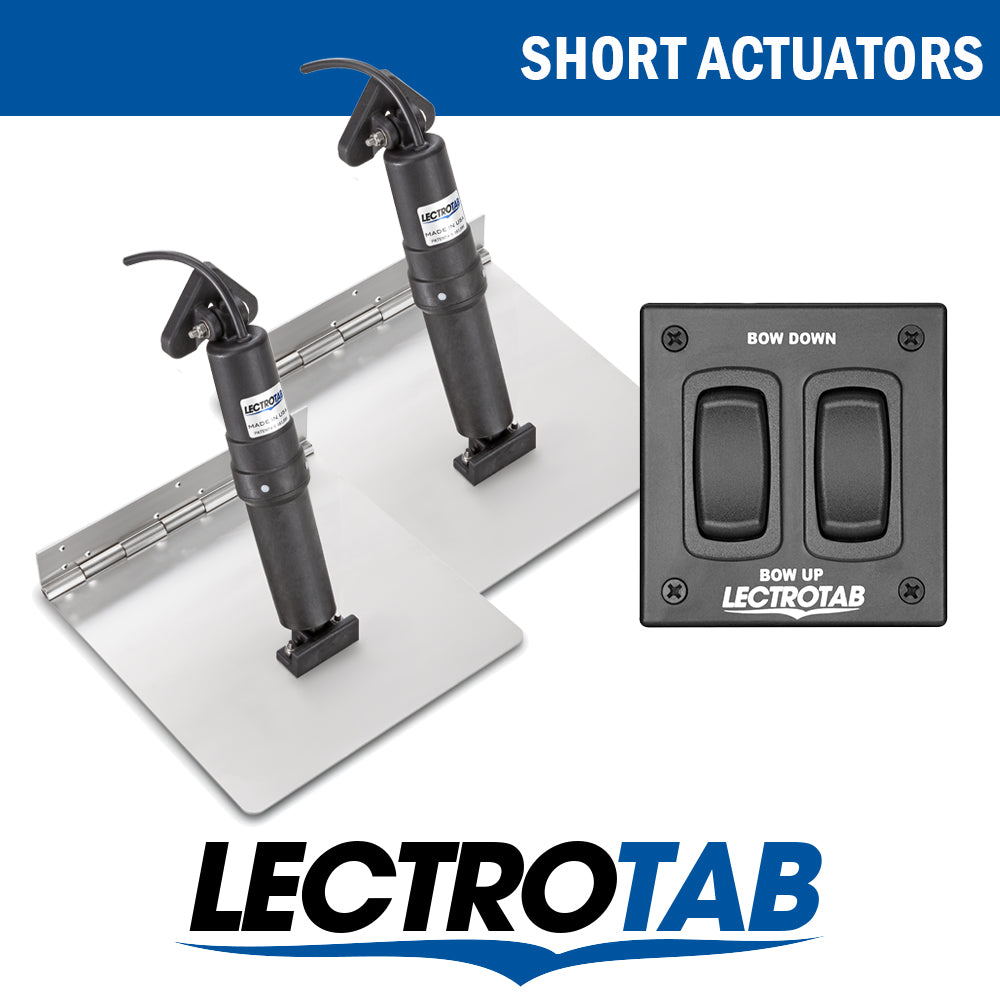

Short Actuators

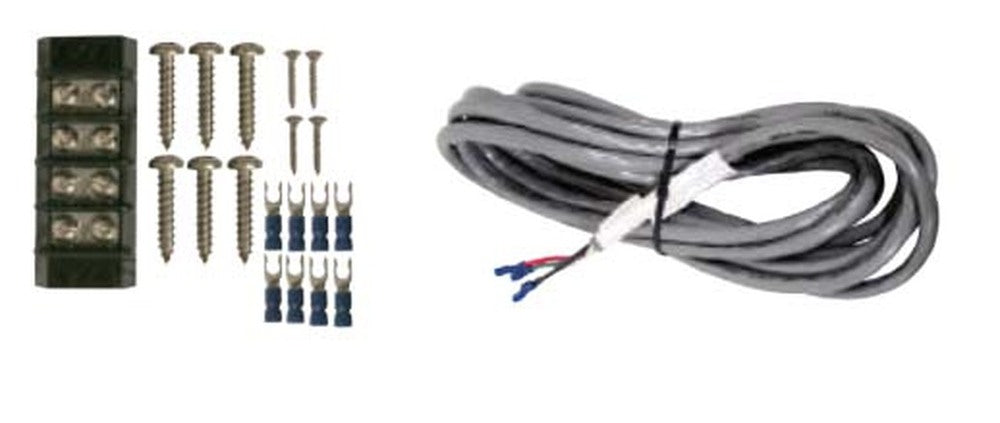

This kit also includes mounting hardware, interconnecting wire and the Lectrotab short actuators - low profile bracket and they are ideal for limited vertical height applications such as swim platforms, Lectrotab short trim tab actuators are precision engineered to combine quite operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The short actuator incorporates a low profile transom mounting bracket. Short actuators come in 12v DC with a 6 second stroke time.
*Please select the trim tab size you require as part of the kit.
The Standard Switch Assembly comes with two year warranty.
The Short actuators come with seven years warranty.
