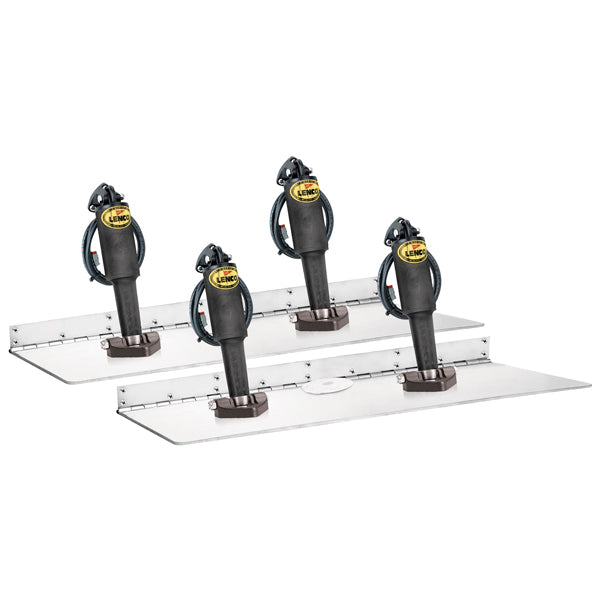

Lenco Trim Tab Kit - Super Strong Dual Actuator

No reviews yet
Part Number:

Features:

  • Super Strong design is for sport fishing, large cruising and commercial vessels. This series has a completely flat blade design which reduces spray giving you a clean, dry ride. Boat lengths 35’ (10.6m) to 60’ (18.3m).

Kit Includes:

  • 2 x Super Strong Standard Mount Plates, 7 Gauge (4.6mm thick) laser cut 304G stainless steel with 3/8" (9.5 mm) diameter hinge pin.
  • 4 x 101XD Extreme Duty Actuators with 1.8m cable and Deutsch connectors.
  • 1 x Set of stainless steel fasteners.
  • 4 x Upper mounting bracket with gland seal.
  • 4 x XD lower mounting bracket.
  • 2 x Zinc anodes.
  • Lenco owner’s installation manual.
  • Compliance: CE Certified.
  • 5 Year Warranty (Recreational Use).
SPECIFICATIONS
Part No. Length Width Hinge
Height
Min. Transom Height Approx. Boat Length Finish Series Volts Note
8223122 16" (406mm) 30" (762mm) 50mm 356mm 12Mtr - 18Mtr Matte Super Strong Dual Actuator 24V Switches sold separately. Actuator extension harnesses not in kits, must be purchased separately (2 required).
24 Volt Option Available
8223123 16" (406mm) 36" (914mm) 50mm 356mm 13.7Mtr - 21.3Mtr Matte Super Strong Dual Actuator 12V
8223121 16" (406mm) 30" (762mm) 50mm 356mm 12Mtr - 18Mtr Matte Super Strong Dual Actuator 12V
8223120 16" (406mm) 24" (610mm) 50mm 356mm 10Mtr - 15Mtr Matte Super Strong Dual Actuator 12V
