Name: Lenco Trim Tab Electro Polished Standard Kits
Brand: LENCO
Price: 2015.83 AUD
Availability: OutOfStock

Part Number: 8223105

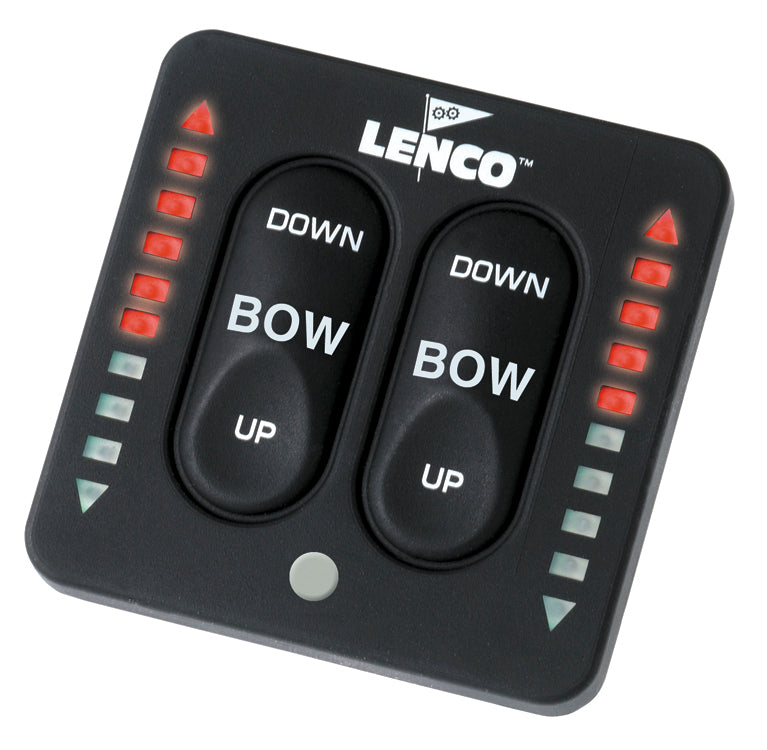

Lenco complete trim tab electro polished standard mount kit with LED indicator tactile switch features built in auto retract, 12 volts, LED indicator displays the exact position of your trim tabs with auto brightness adjusting, self check feature, waterproof key pad and solid state control box with waterproof plug and play deutsch connectors backlit, and 36" power pigtail for control box.

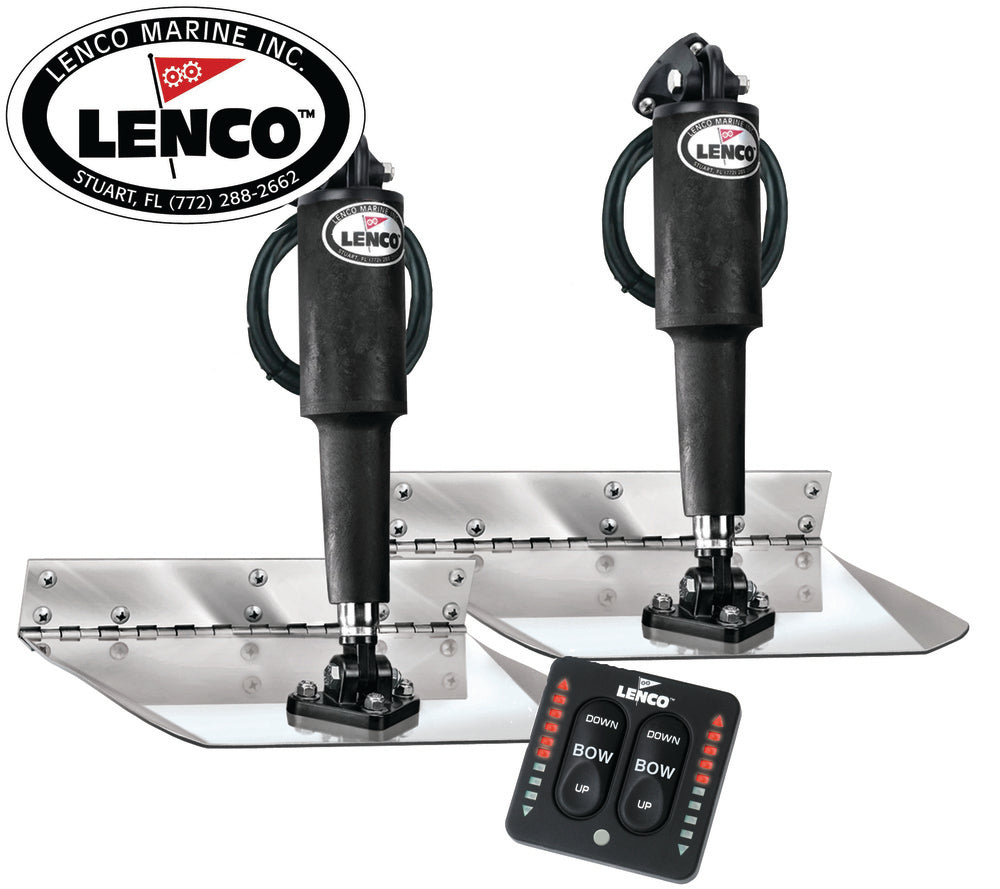

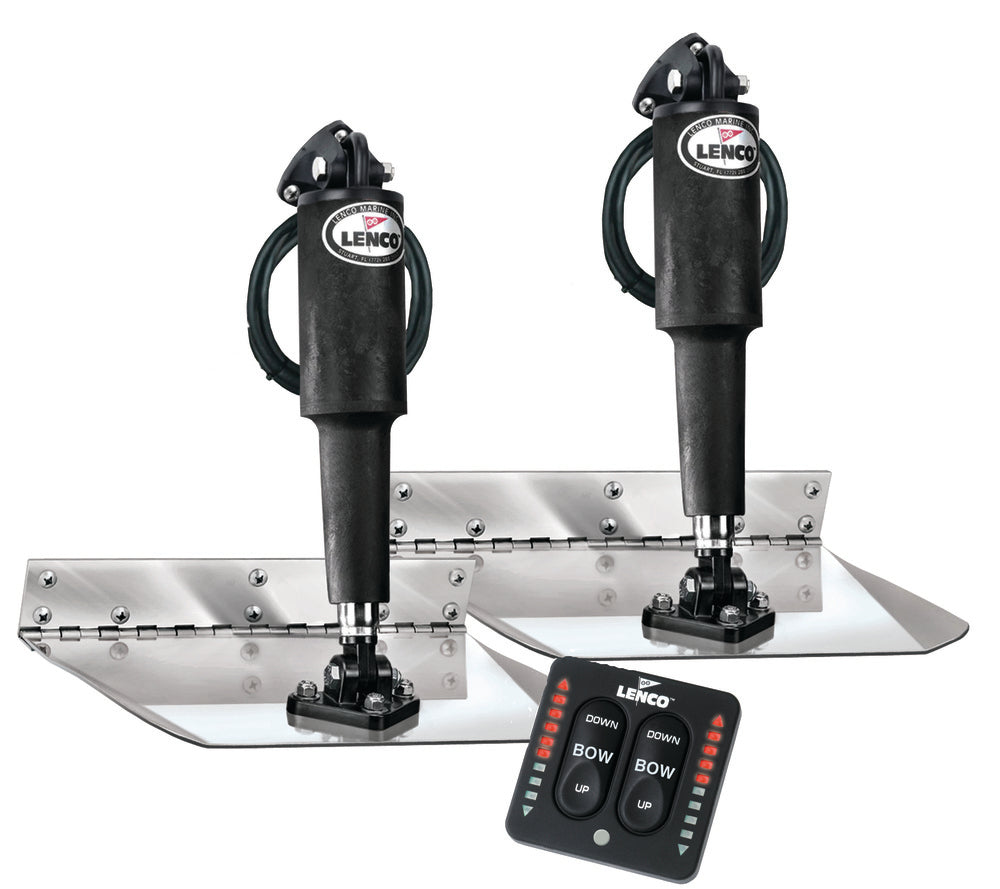

Kit includes:

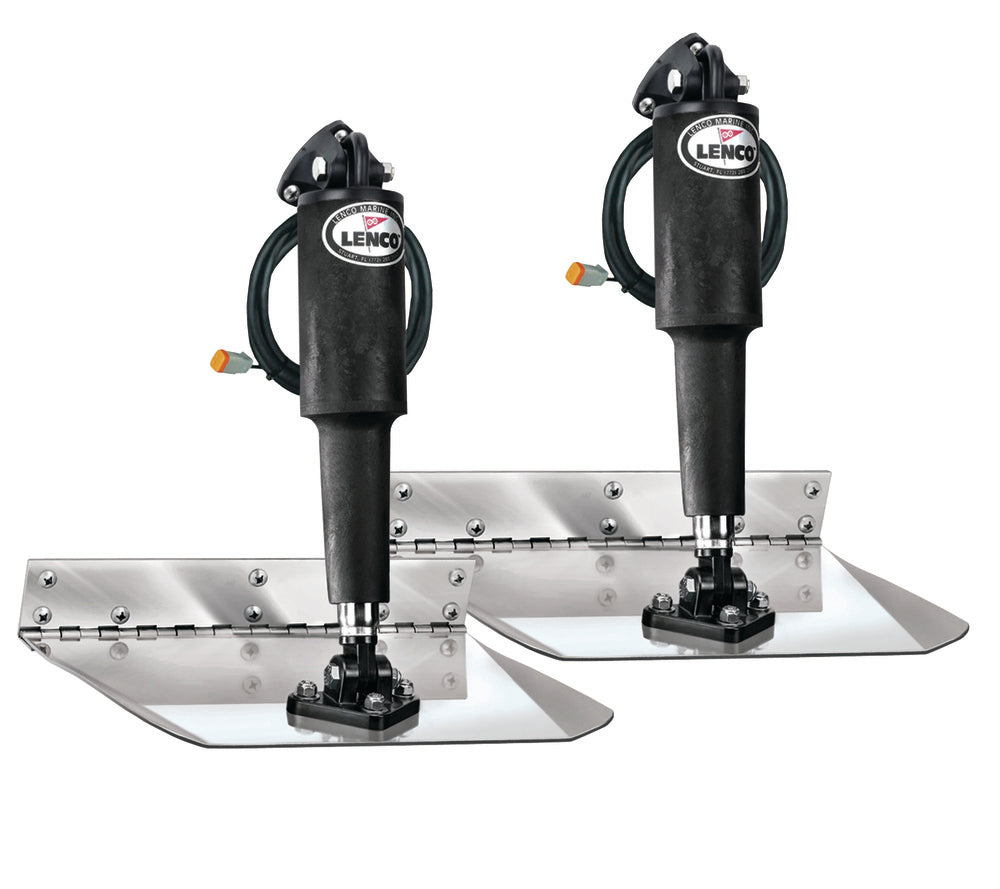

2 x standard mount plates, 12 gauge 304 stainless steel with a 5/8" flared trailing edge and 1/8" diam. hinge pin.
2 x 12 volt 101 actuators with 1.8m cable and deutsch connectors.
2 x actuator extension wiring harness 6m with deutsch connectors.
1 x set of stainless steel fasteners.
2 x upper mounting bracket with gland seals.
2 x lower mounting brackets.
Lenco owner's installation manual.
5 years warranty.

Specifications:

Plate options:

9" x 9" suits 4.5m to 5.5m
9" x 12" suits 4.9m to 7.6m
12" x 12" suits 5.2m to 9.2m

SPECIFICATIONS
Part No.	Switch Kit	Dimensions (L x W)	Hinge Height	Min. Transom Height	Approx. Boat Length	Finish	Volts	Note
8223119	12" (305mm)	12" (305mm)	279mm	279mm	Matte	Standard Tactile	12V	51mm
8223118	12" (305mm)	9" (228mm)	279mm	279mm	Matte	Standard Tactile	12V	51mm
