Quantum Q24C 18" Radar Power and Data Cable

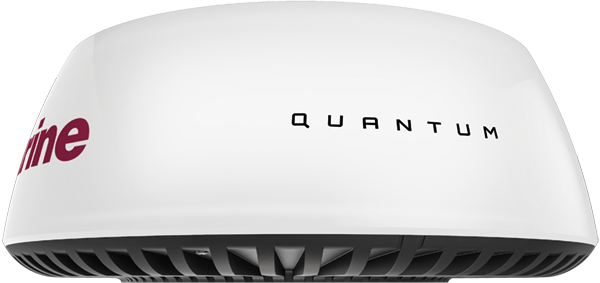

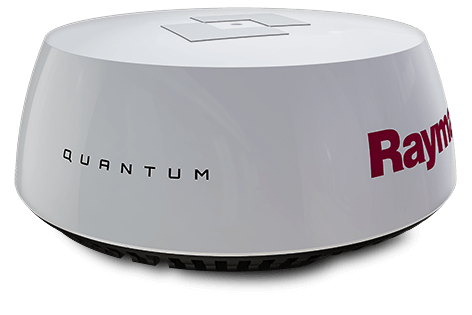

Raymarine Quantum™ Wireless CHIRP Radar


Raymarine Quantum Radar, by FLIR, is the next generation of marine radar featuring CHIRP pulse compression technology. Setting a new standard for compact solid state radar, Quantum delivers superior radar imaging on both long and extremely short ranges. Integrated Wi-Fi and thin cabling simplifies installation plus Quantum’s energy efficient and lightweight design provides safe radiated emissions and substantially reduced power consumption. Superior Radar Imaging FLIR’s exclusive ATX™ advanced target separation technology displays targets like boats, landmarks, rocks, buoys, and weather cells with unsurpassed resolution and separation quality

• Quantum Radar
• Ordinary magnetron radar

CHIRP Pulse Compression

• Excellent short-range detection and enhanced target detail with 18’ (6m) minimum range
• CHIRP Pulse compression ensures more energy reaches each target, resulting in superior imaging on long ranges 1 Day marker target at close range

Small Target Detection

Quantum’s CHIRP Pulse Compression technology identifies small, weak targets, even when positioned close to strong returns. 1 Quantum detects the small kayak very close to the waterfront bulkhead

Immediate Awareness

Quantum solid-state technology is ready to use in seconds, without any lengthy warm up period.

Simplified Installation

• Simple Wi-Fi connection between Quantum and any Raymarine LightHouse II powered MFD
• Quantum’s small diameter power cable is easy to route through tight spaces
• Easy to upgrade – Quantum uses the same bolt pattern as previous generation radars. Optional Quantum adapter cable eliminate the need to run new radar cables

Energy Efficient and Lightweight Design

• Weighs 50% less than traditional magnetron radars
• Safe Emissions thanks to Quantum’s low power solid state radar transmitter
• Very low power consumption (17 Watts transmit and 7 watts standby)
• Extended vessel battery life when under sail
