Part Number:

All-in-One

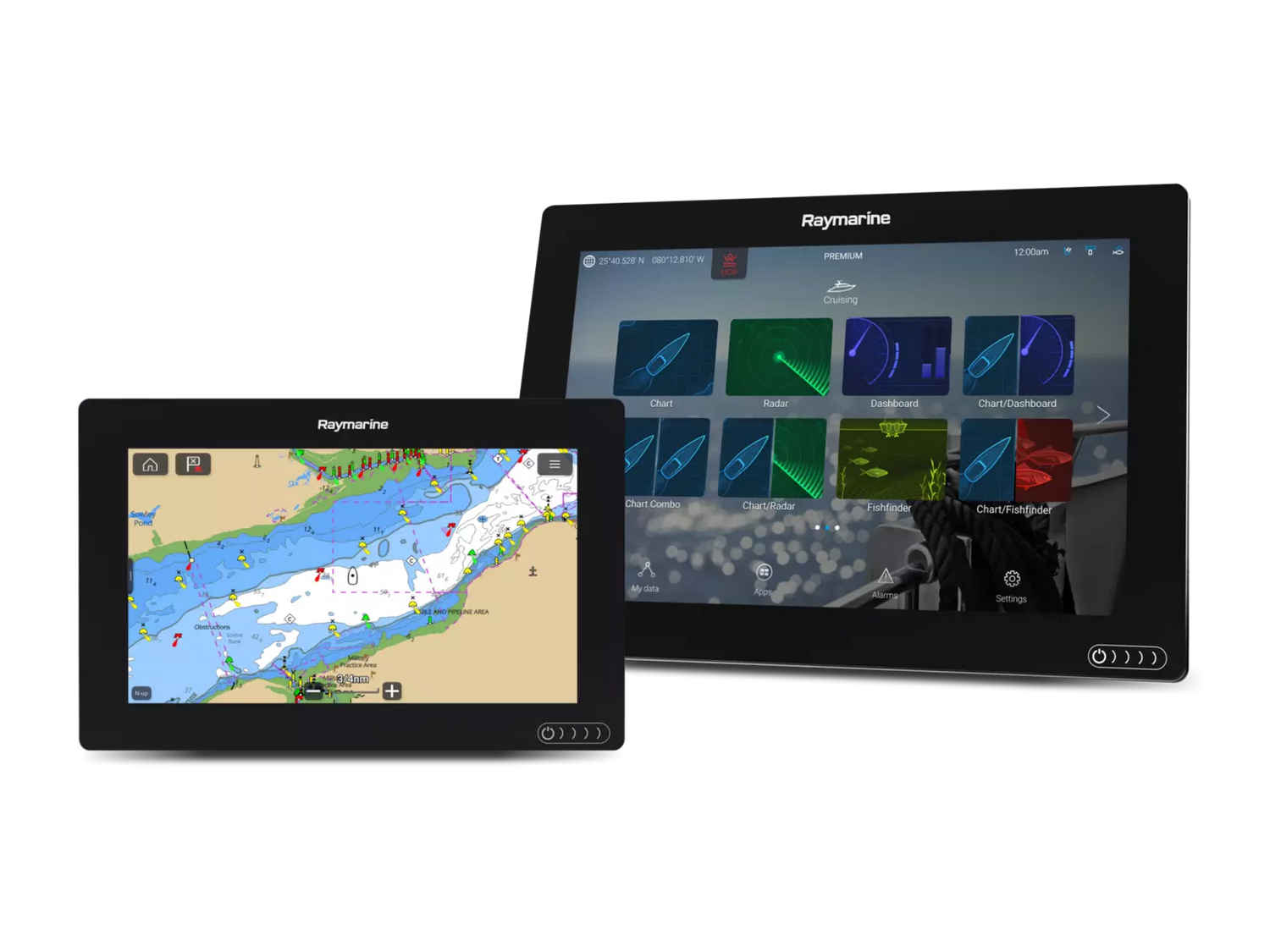

Axiom chartplotter displays feature a built-in GPS receiver, simple touchscreen operation, and fast quad-core performance. Use Axiom as a full-featured chartplotter or expand Axiom with additional displays and sensors like radar, sonar, instruments, autopilot, and more.

Blazing Fast Performance and Power
Award-winning Axiom chartplotter displays deliver fast and fluid performance, thanks to a quad-core processor and the powerful LightHouse operating system. Ready to navigate with a built-in GPS receiver, Axiom chartplotter displays also support a range of sensors and accessories, including Quantum radar, CHIRP sonar modules, FLIR thermal cameras, audio integration, instruments, cameras, and Evolution autopilot. Standard Wi-Fi and Bluetooth connectivity allow connection to the latest Raymarine apps for tablets and smartphones.

The LightHouse operating system is fast, fluid, and easy to learn. An uncluttered interface is easily personalized for your style of navigating.

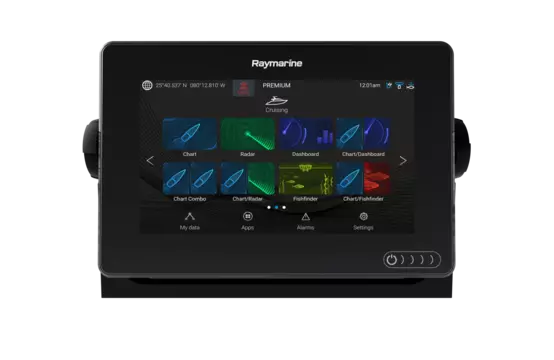

Rugged all-glass display optimized for flush or surface mounting. Sleek buttonless design with swipe-to-power control.

Support for the best charts, including Raymarine LightHouse Charts, Navionics, and C-MAP

SPECIFICATIONS
POWER
Power Consumption 7.34 W
LCD
Resolution WVGA 800 x 480
Viewing Angle Top 60° / Bottom 70° / Left 70° / Right 70°
Type TN (Twisted Nematic)
Size
(Diagonal)
7"
Ratio 5:3
Color Depth 24-bit
Illumination 1200 nits / 1200cd/m2
Number of Simultaneous Touches 2
GNSS (GPS)
Position Accuracy Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time
Geodetic Datum WGS-84 (alternatives can be selected on the MFD)
Satellite Differential Type (SBAS) WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan)
Channels Track up to 28 satellites simultaneously
Antenna Internal - Ceramic chip mounted near top of unit
GNSS compatibility GPS, GLONASS, Beidou
Almanac Update Automatic
Signal Acquisition Automatic
Receiver IC Sensitivity 165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start)
Operating frequency 1574 MHz to 1605 MHz
Time to first fix from cold start < 2 minutes
PHYSICAL

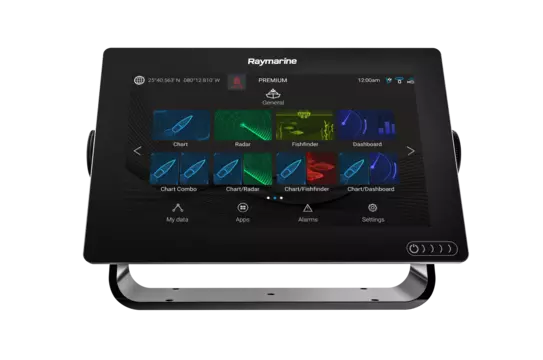

Dimensions (Trunnion mounted) Width: 250.4 mm (9.86 in)
Height: 162.5 mm (6.4 in),
Depth including cables: 218 mm (8.58 in)
Dimensions (Surface/Flush mounted) Width: 201.1 mm (7.92 in)
Height: 133 mm (5.24 in),
Depth including cables: 218 mm (8.58 in)
Accessory connection USB Micro B
Ethernet connection RayNet (10/100 Mbits/s)
External storage MicroSDXC card slot x 1
NMEA 2000 connection DeviceNet (male connector built into power cable)
Wireless connections Bluetooth: V4.0, Wi-Fi: 802.11/b/g/n
Internal storage 4GB Solid State (2 GB usable)
ENVIRONMENTAL
Relative humidity Up to 93% @ 40°C (104°F)
Waterproof rating IPx6, IPx7
Storage temperature -30°C to +70°C (-22°F to 158°F)
Operating temperature -25°C to +55°C (-13°F to 131°F)
POWER
Operating voltage range 8 V dc to 16 V dc
Fuse rating 7 A
Nominal supply voltage 12 V dc
LEN (NMEA 2000 Load Equivalency Number) 1
