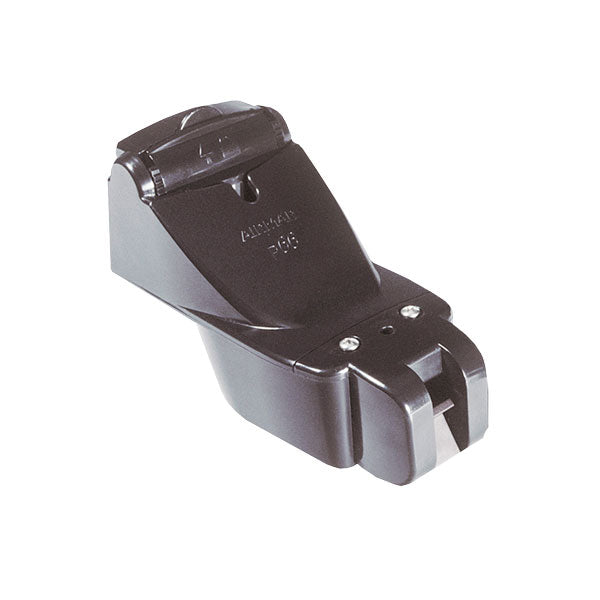

Raymarine P66 Depth/Speed/Temperature Transducer

Features:

• Compatible hull material: metal, wood and fiberglass
• Dual frequency: 200/50 kHz
• 10m (30ft) cable

Compatibility and Connectivity

Transducers are compatible with:

• ST40, i40, ST60+, i50 on the SeaTalk¹ network
• ST70, ST70+ and i70 on the SeaTalk^ng network

SeaTalk¹

These transducers are compatible with:

• ST40 Bidata
• ST60+ Tridata
• i40 Bidata
• i50 Tridata

The transducer simply connects to the back of the instrument.


The transducers above can also be used to connect to a Depth and Speed Instrument on the SeaTalk1 network. For example:

• ST40 Depth and ST40 Speed
• i40 Depth and i40 Speed
• ST60+ Depth and ST60+ Speed
• i50 Depth and i50 Speed

In this case the depth cables from the transducer connect to the back of the Depth Display and the speed cables into the back of the Speed Display.

SeaTalk^ng

The transducers above are also compatible with ST70, ST70+ and i70 instrument displays on the SeaTalkng network via a depth and speed pod or an iTC-5 (pods and iTC-5 sold separately).


The transducer is connected either to the Speed and Depth pods or the iTC-5 which converts the transducer signals to SeaTalkng. The pods or iTC-5 is then connected to your SeaTalkng backbone.

Pod or iTC-5?

Pods are available for depth, speed and wind and the transducer should only be connected to the associated pod (i.e. depth transducer to depth pod).


For recording both depth and speed/temp with the transducers above you will require a depth pod and a speed pod. The iTC-5 (image above right) can convert transducer signals for depth, speed/temp, wind, compass and rudder reference all in the one unit, eliminating the need for multiple pods.
