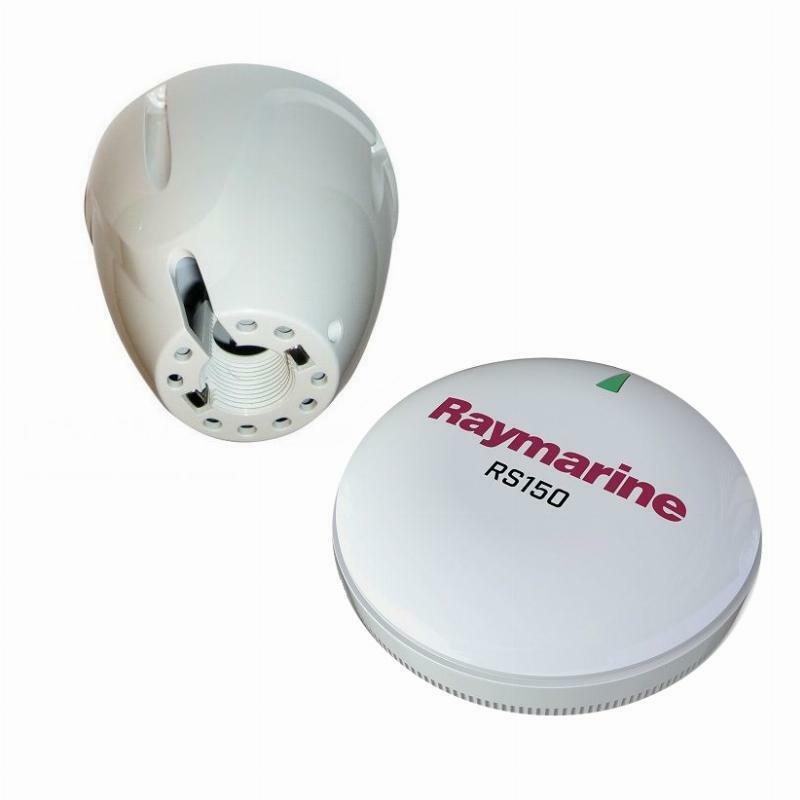

Raystar 150 10Hz Gps/Glonass Antenna (Stng) With Pole Mount
Raystar 150 10Hz Gps/Glonass Antenna (Stng) With Pole Mount

Raystar 150 10Hz Gps/Glonass Antenna (Stng) With Pole Mount

No reviews yet
Part Number:

The RS150 GPS is a high performance, 72-channel, remotely mounted GPS sensor for Raymarine navigation systems. The RS150 offers fast 10Hz position updates and enhanced accuracy. The RS150 is also a GNSS receiver and supports the GLONASS global navigation satellite system.

RS150 Key Features

  • 72-channel GPS receiver
  • Fast 10Hz position updates
  • Satellite differential GPS-compatible. Space-Based Augmentation System (SBAS) enabled with WASS, EGNOS, MSAS and GAGAN support
  • A GNSS receiver with GLONASS compatibility
  • Low power consumption: 30mA (1 LEN)
  • SeaTalkng and NMEA2000 compatible (using device net adapter cable)
  • Designed for low profile surface mounting or optional pole mounting
  • Supplied with 6m SeaTalkng spur cable and surface mounting hardware + pole mount kit
Product Number E70310
Description Raystar 150 10Hz Gps/Glonass Antenna (Stng) With Pole Mount
Nominal supply voltage 12V D.C. Powered by N2K bus
Operating voltage range 8 - 32V DC
Power consumption 30 mA max

(NMEA LEN = 1)
Operating temperature -13ºF to 131ºF

(-25ºC to +55ºC)
Relative humidity max 93%
Waterproof IPx6/7
Supported connection protocols SeaTalkng: NMEA 2000 (certified) (via DeviceNet adaptor)
Sensitivity High sensitivity - acquisition down to -163dBm
No. of channels 72
Positioning System GPS & GLONASS
Satellite Differential Type WAAS (United States); EGNOS (Europe); MSAS (Japan); GAGAN (India)
Differential acquisition Automatic
Position accuracy (95%) <15m
Position accuracy with SDGPS (95%) <5m
Speed accuracy (95%) <0.3kt
Time to first fix from cold start <2 minutes (< 45 seconds typical)
Time to first fix from hot start < 8 seconds -72 hour hold up battery allows for hot start
Geodetic Datum WGS84
Mounting Surface/rail/pole

Pole Mount for RS150 GPS Antenna

Raymarine's Pole Mount specifically for the RS150 GPS Antenna. The RS150 has 72 channels and offers faster 10Hz performance and enhanced accuracy. The RS150 is also a GNSS receiver and supports the GLONASS global navigation satellite system.
