Relaxn Compact Battery Isolator Switch - 2 Position

No reviews yet
Part Number:

Features:

  • Compact battery isolator switch 2 position for single battery.
  • Robust weather resistant battery switch, features brass terminals and heavy-duty plastic construction making it ideal for marine and automotive applications.
  • Suitable for applications up to 50VDC.
  • 1000A @ 12V for 30 seconds.
  • 500A @ 24V for 30 seconds.
  • 250A @ 50V for 30 seconds.
  • 300A @ 12V continuous load maximum.
  • 150A @ 24V continuous load maximum.
  • 75A @ 50V continuous load maximum.
  • Mounting screws supplied.
  • 2 position features - On / Off.
  • 1 year warranty.
Part No. Cranking
Rating

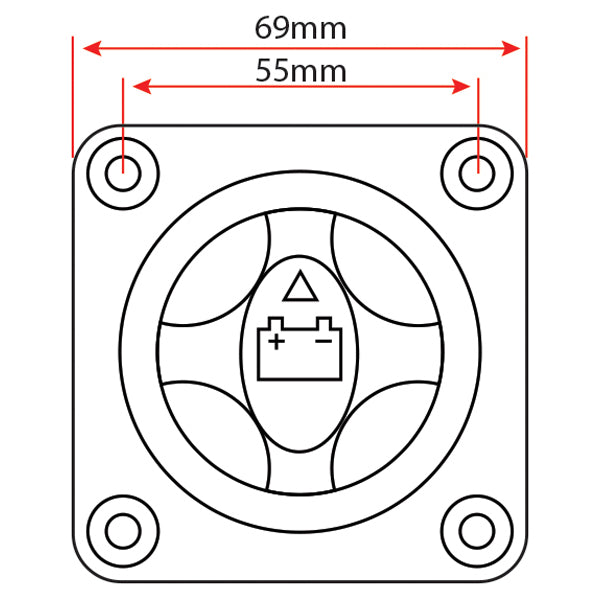

Dimensions
L x W x D
Terminal
Stud Size
Mounting
Holes
Unit
Qty
Function Volts Max. Continuous Load Note
8554237 1000Amps 69mm x 69mm x 74mm M10 x 19mm Dia. 5mm r/h 1 2 12/ 24V 300Amps Depress knob Before turning from "Actuator Out" to "Off" position.
8555914 1000Amps 69mm x 69mm x 74mm M10 x 19mm Dia. 5mm r/h 10 2 12/ 24V 300Amps
