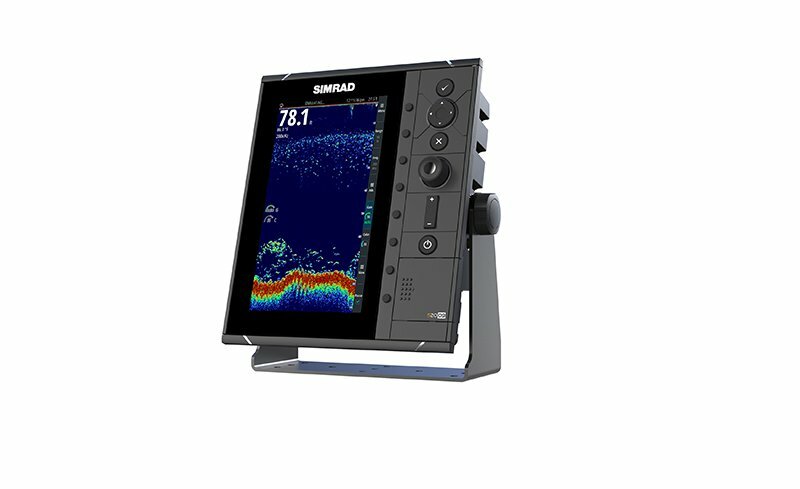

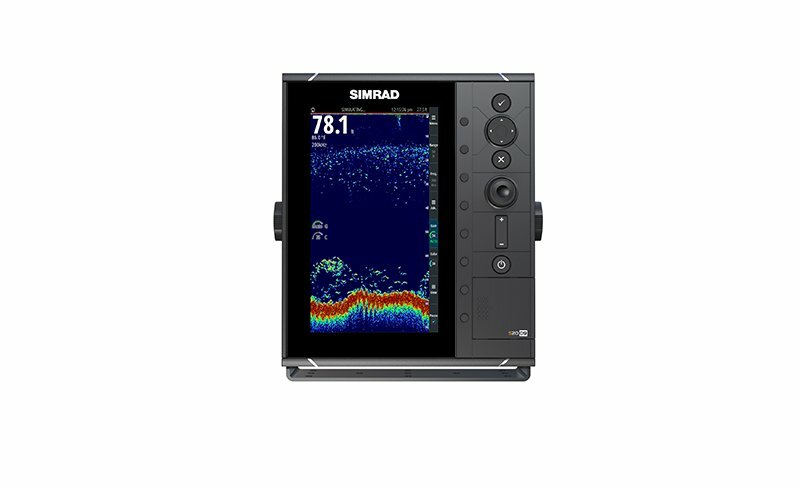

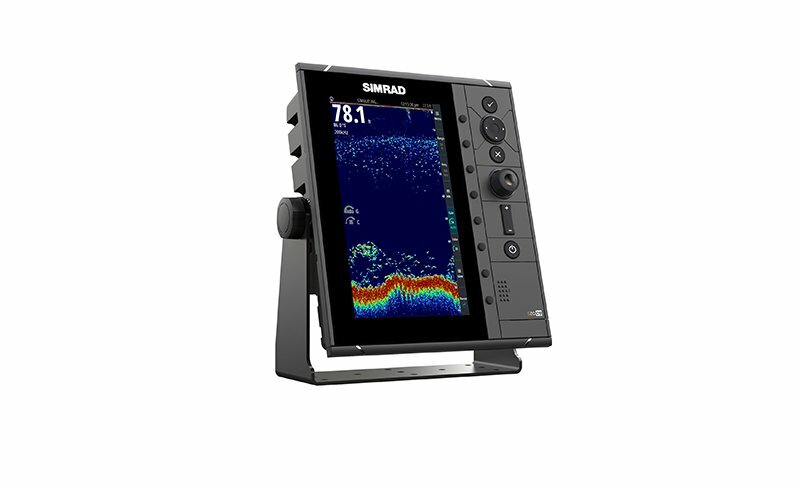

The SIMRAD S2009 is a dedicated 9 inch fishfinder with an integrated Broadband sounder module with CHIRP technology. The NMEA 2000 network lets the S2009 integrate seamlessly with other multifunction displays and SIMRAD glass bridge systems, whilst offering the reliability of a self-contained sonar platform.

The 9 inch portrait display gives maximum vertical detail, and the control panel is simple and intuitive to use, in any conditions. The unit can be used outside, with screen brightness suitable for use in direct sunlight.

Key Features

  • Dedicated fish finder with integrated Broadband Sounder™ module and CHIRP technology
  • High depth penetration and ping speed
  • Vertical heave compensation
  • 9-inch portrait display
  • High brightness ideal for outside installation
  • See clearly with White Line, White Marker, and Colour Erase features
  • Simple operation with 8 direct-access menu keys
  • Bracket and flush mounting options (bracket included)
  • Ethernet, NMEA0183 & NMEA2000 connectivity*

Overview
Screen Brightness

1200 cd/m2
Echosounder Max Depths

3,000m / 10,000ft (transducer-dependent)
Echosounder Transducers

Standard Broadband and single-channel CHIRP Transducers
Echosounder Frequencies

CHIRP 28-38 kHz, 40-60 kHz, 85-145 kHz, 130-210kHz, Broadband 28kHz, 38kHz, 50kHz, 83kHz, 200kHz

Display
Display Size 9-inch portrait
Display Resolution 480 x 800
Display Type 9-inch LED-backlit Colour TFT LCD
1x NMEA0183, 1x NMEA2000, 1x Ethernet

Technical/Environmental
Waterproof Standard/rating IPx7
Product Width 224.3 mm / 8.83 in
Product Depth 82.3 mm / 3.24 in
Product Height 260.1 mm / 10.24 in

Power
Power Supply (Supply Voltage) 10.8-31.2 V DC
