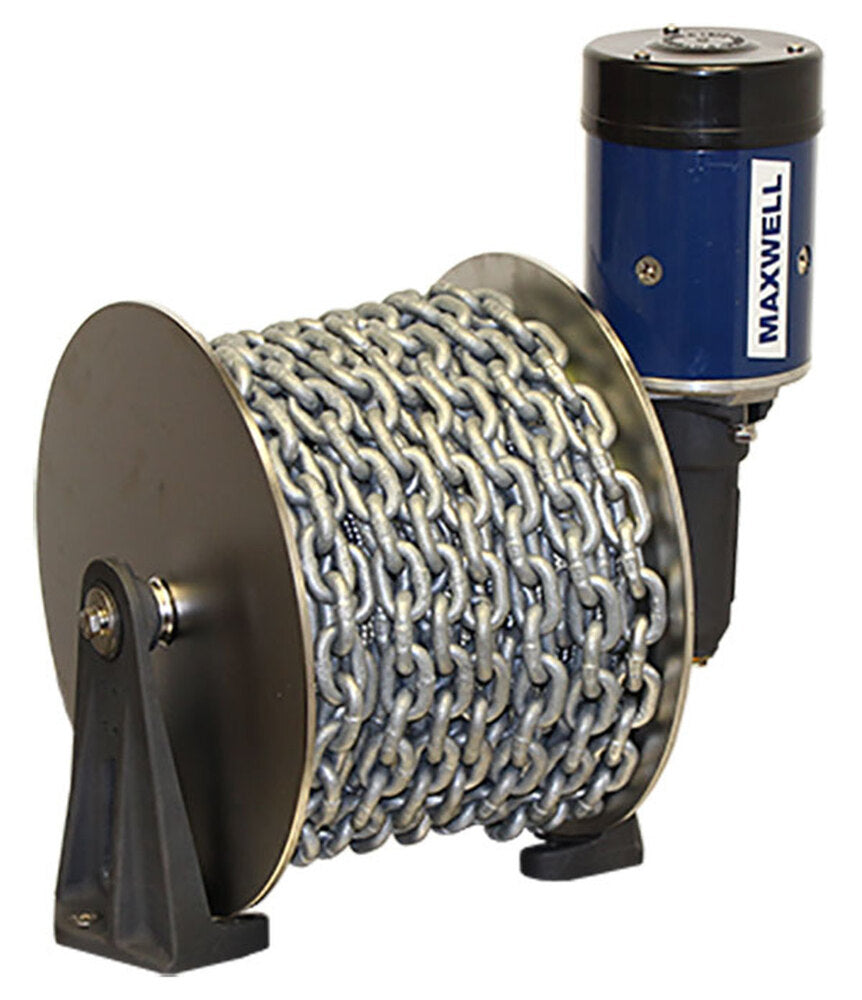

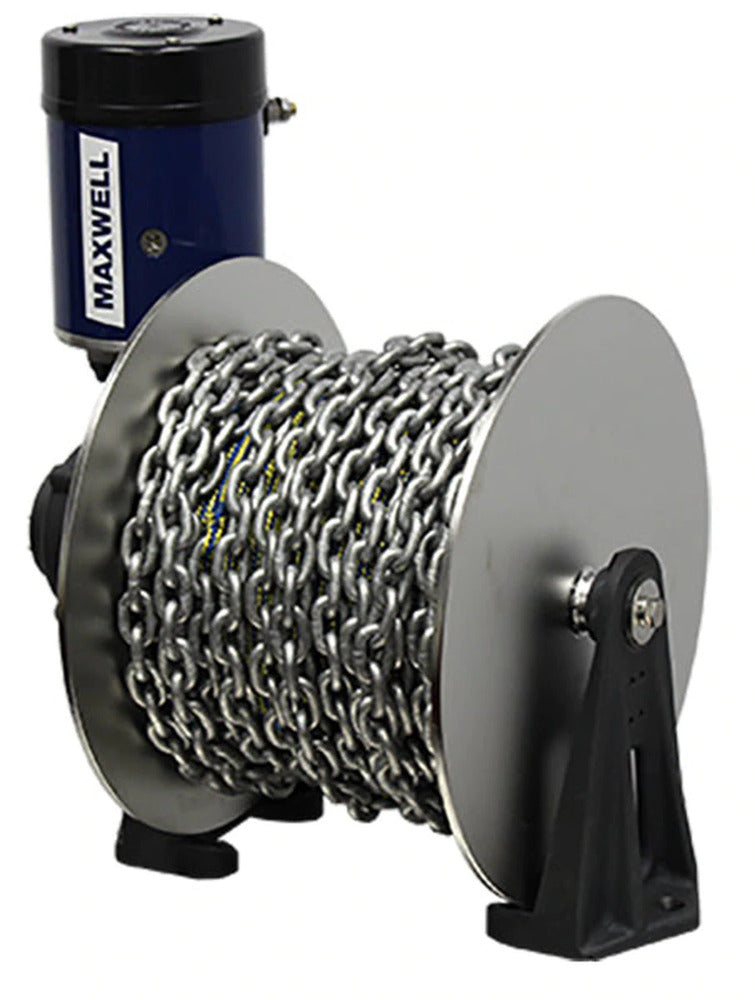

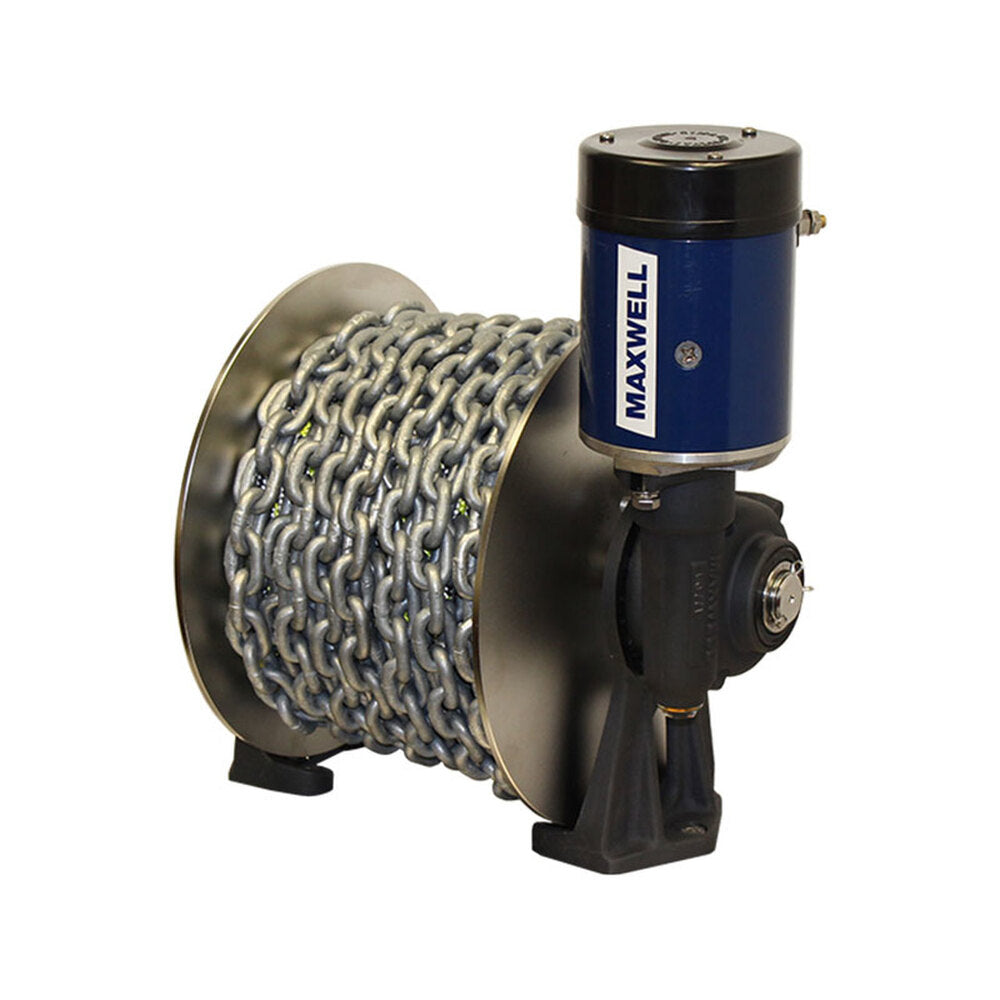

Tasman Drum Anchor Winch

The robust and reliable TASMAN Anchor Drum Winch from Maxwell features a powerful 1000W motor with a max pulling force of up to 1000kg. The large diameter high strength shaft enables a higher holding load and improved resistance to bending.

The Anchor winch comes with either 6mm or 8mm rope and chain options. The 6mm anchor rope comes in a length of 150m, with 10 meters anchor chain, while the 8mm anchor rope has a length of 100 meters and 10 meters anchor chain.

The TASMAN Anchor Winch comes with a confident inducing 3-year warranty. Boating & RV offers expert advice regarding the installation and after sales support on all purchases made online or through our stores.

Tasman Anchor Winch Features

• Robust, reliable, high performance Drum Winch
• 8mm Rode (standard) or 6mm Rode for increased anchoring depth
• MAX Warp - high strength combined with stretch for absorbing shock loads
• High quality marine galvanised chain
• Exceptional performance using Maxwell proven gearbox and motor
• Long life - Stainless Steel and Marine Anodised construction
• Large diameter high strength Duplex Stainless Steel shaft
• Aluminium construction to minimise corrosion issues on Aluminium vessels
• Easy install through separate legs and flexibility of motor positioning
• Plain bearings for reliable operation and high load capacity
• Simple emergency operation if power is lost

What Makes TASMAN Drum Winch unique

1. Maxwell proprietary gearbox - custom ratio for optimised performance, direct fit to larger diameter shafts, large bearings and seals, robust design.
2. Proven Maxwell 1000W motor as used on the popular RC Series and VWC/HWC models.
3. Large diameter high strength shaft - higher holding load and improved resistance to bending.
4. Marine anodised aluminium legs to increase the life of aluminium hulls. Large stainless steel components should be minimised on aluminium due to corrosion issues as the hull acts as an anode to protect the stainless steel through corrosion of the aluminium.
5. Large diameter plain bearings for a longer life, stronger and more robust in the harsh marine environment. Gearbox bearings are lubricated sintered bronze. Non gearbox end is self-lubricated composite bearing for minimal maintenance.
6. MAX Warp - optimised rope construction for maximum hold with enough stretch to minimise impact loads when anchored.
7. Engineered mounting design, optimised for strength, compact dimensions through integration with gearbox

TASMAN Anchor Winch Specifications

Tasman 8-6

• 12V 1000W DC Electric Motor
• Max Pulling Force (1 layer on drum): 1000kg
• Max Pulling Force (Full drum): 350kg
• Haluage Speed (Full drum): 60m/min
• Haulage Speed (1 layer on drum): 13m/min
• Rope Size: 6mm MAX Warp x 150m
• Chain Size: 6mm Short Link DIN766 x 10m
• Net Weight: 31kg

Tasman 8-8

• 12V 1000W DC Electric Motor
• Max Pulling Force (1 layer on drum): 1000kg
• Max Pulling Force (Full drum): 350kg
• Haluage Speed (Full drum): 60m/min
• Haulage Speed (1 layer on drum): 13m/min
• Rope Size: 8mm MAX Warp x 100m
• Chain Size: 8mm Short Link DIN766 x 10m
• Net Weight: 37kg
