Triton2 Display and Autopilot Controller

Triton² digital display and autopilot controller

Triton² Series
Fit out your boat with Triton2 sailing instruments and enjoy crystal-clear displays that put the sailing data you rely on exactly where you need to see it.

Your course looks clearer with Triton²
See the data you rely on: Speed, depth, wind and more, in full colour on Triton2’s low-profile, intuitive displays. The 4.1” screen will show you what you need to see, night and day – and even in direct sunlight – giving you all the information you need to sail your boat smarter and in safety, whatever the weather.

See what you want to see
Customise Triton2 to show what you want to see, placed exactly where you want to see it. Simple numerical screens show any data available on your network, while the intuitive SailSteer display places everything you need in one place, with wind data and boat speed overlaid on an intuitive diagram that also shows laylines, heading and waypoint information.  To help keep you safe on the water, Triton2 will also display AIS data for a clear view of surrounding vessels – and with a linked DSC VHF radio you can call them, straight from the instrument display.

Low profile screen
Triton2's low profile design will enhance any cockpit. Standing only 8mm proud, the sleek display has wide viewing angles and exceptional brightness, but consumes a negligible 150mA of power. So, whether you mount the display at the helm, on the bulkhead or over the hatch, you’ll always be able to see the data you need.

Add speed, depth and wind with our packs
Expand the capabilities of your Triton2 Displays and save money with our handy packs.

A Speed/Depth pack adds a smart Tri-ducer to feed boat speed, depth and temperature to your Triton2 display via the NMEA 2000 network, or add Wind with a Speed/Depth/Wind pack and our new WS300 series wired or wireless wind sensors.

Expand, Improve, record and review your sailing data with Triton Edge
Triton Edge Sailing Processor delivers an enhanced suite of sailing data, improving accuracy of your autopilot and sailing information. Wi-Fi and Ethernet allows for expanded integration with Triton 2 and Nemesis displays, and Vulcan and Zeus Chartplotters, whilst integration with the B&G App also enables the ability to review or replay your sailing data, and web-browser based control allows for easy set-up and commissioning, improving the accuracy and calibration of sailing data, as well as the ability to backup/restore and advanced diagnostics.

Set up your Triton² system
Triton2 is so simple to use that you shouldn’t need the manual. Here, B&G Product Expert Mike Sugden talks you through the various Triton² Display settings and views to ensure you get the most from your B&G display when set up for cruising mode.

'Pick of the bunch'
Practical Boat Owner magazine reviewed Triton²  in their March 2017 issue in a test of five NMEA2000 instrument displays. They were impressed: ‘Pick of the bunch in terms of clarity and brightness was the B&G Triton², which also had some excellent graphics and preset screens.'

‘The transflective LCD screen was the best of all we tested: crisp, clear and bright, with excellent viewing angles of around 170 degrees. The graphics were nicely presented and clear to understand.

‘The screens are heavily customisable, but the pre-programmed displays are useful out of the box. The wind page has been updated to match the ‘sailsteer’ function on B&G’s chart plotters… As a wind display it’s effective, and even more useful when you get used to reading the additional data as well. ‘

‘The AIS display was really good, allowing you to set alarms and view vessel data. You could also add vector lines to the AIS targets and your own vessel  to show their intentions on the screen. ‘

Triton² Autopilots

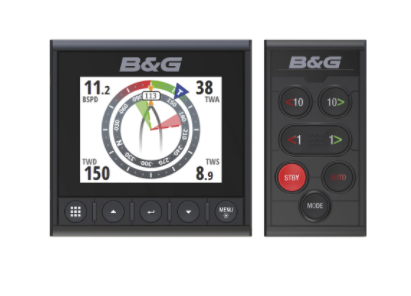

With the addition of a Triton²  Pilot Keypad, your Triton² display becomes a fully-featured controller to take command of your B&G autopilot.

Triton² Pilot takes control in perfect safety
Sit back and enjoy the sailing with a Triton² Pilot. Designed for sailors and tested in every one of the world’s oceans, a Triton2 Pilot will helm your boat hour after hour better than most helmsmen. Triton2 Pilots feature Intelligent Sail Steering functionality with compass and wind steering, Smart Manoeuvre controls to tack at the touch of a button, and chartplotter integration to enable waypoint and route navigation. The keypad offers precise control of all the autopilot functions, automatically displayed on a nearby Triton²  display.

There's a Pilot pack for you
Tailor the Triton2 pilot to your boat with our range of mechanical and hydraulic autopilot drive units, and choose an autopilot computer pack to suit your boat: the NAC-2 computer is suitable for boats up to 35’, while the NAC-3 suits boats up to 50’. Packs also include a rudder reference sensor, Precision-9 heading sensor and NMEA 2000 backbone kit.

Two year warranty standard
We have designed Triton2 to be at home on the water and to stand up to the worst the elements can throw at it – which is why we back our products with an industry-leading two year warranty to give you peace of mind.

Features:

• Optical Bonding: Sporting an Optically Bonded 4.1-inch LCD display, Triton² allows you to see clearly in all conditions with its large clear colour display 100% free from condensation or fogging.
• Efficient LCD Technology: Transflective LCD technology uses reflected ambient light to enhance day-time visibility, providing the clearest sailing dedicated display available. LED backlighting provides highly adjustable illumination when required, making Triton² exceptionally efficient and extending time available from your battery capacity.
• Easy to Use: Triton² provides simple on-screen menus controlled by soft-touch and reliable waterproof buttons.
• Intuitive design makes it easy to configure and use your display.
• Low Profile Design: At just 8mm thin the Triton2 instrument adds a sleek look to any boat. Nearly half the dimension of its thick competitors, Triton² won’t get in the way, catch ropes or offend the eye!
• NMEA 2000® Certified: NMEA 2000 certification means you can be confident when adding Triton2 to an existing NMEA 2000 system. NMEA 2000 certification also opens up a wide variety of future expansion options for your Triton² system..
• Easy Installation: A straight-forward front mounting method and a clip-on bezel over the (4) mounting screws combine with a single NMEA 2000 connection carrying both power and networked data.
• The Triton² is simple and quick to install
• Autopilot Integration: Triton² will display B&G Pilot data on a clear status screen.
• With the addition of a Triton² Pilot keypad the instrument becomes a fully functional Pilot controller.
