VIPER PRO-SERIES II 1000 BUNDLE 75M

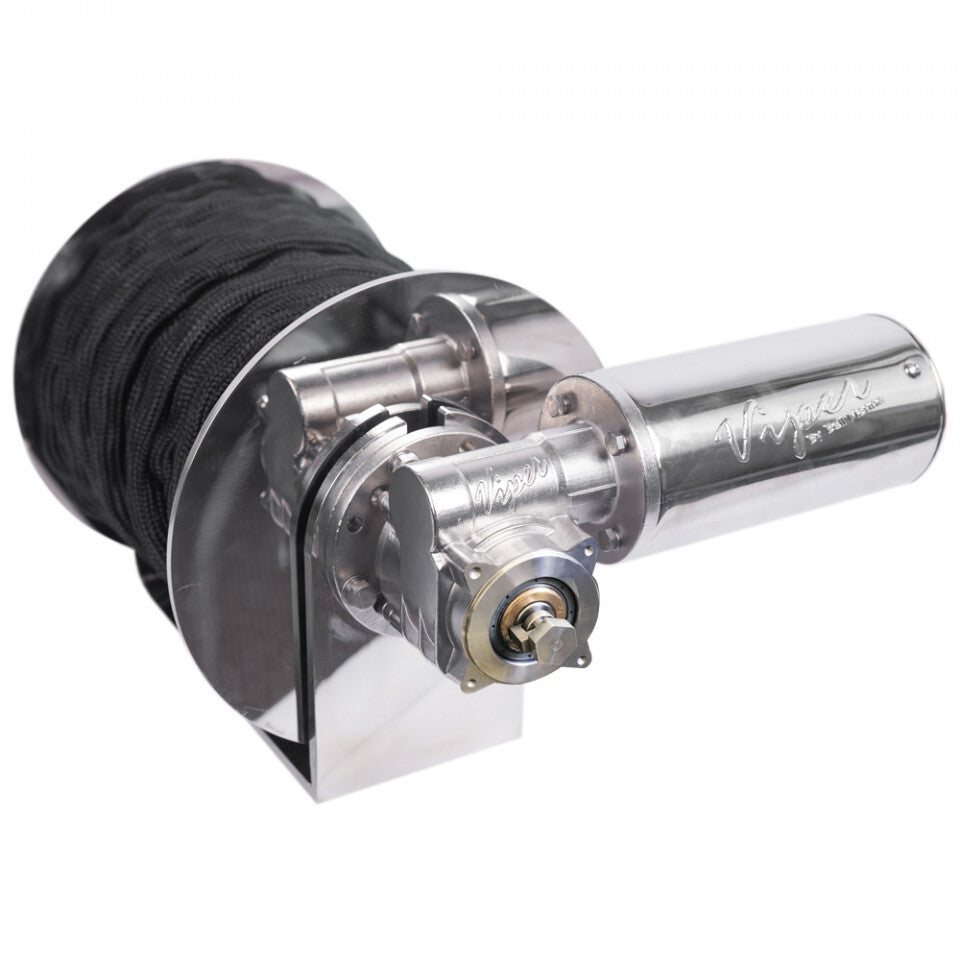

Viper S Series Rapid 1000W All stainless steel winch bundle including 75m rope and chain kit. This winch bundle includes 75m 3 strand rope spliced to 8 meters of 6mm short link galvanised chain and 316 grade stainless steel marine gearbox and motor with IP68 waterproof certification and an Emergency Manual Release Safety Feature.

The Viper “S” Series RAPID has set new standards in anchoring systems. The new Viper 1000W electric motor (hand polished marine 316 grade stainless steel) has made it one of best selling anchor winch in Australia. With a fall rate of over 50 meters per minute and a retrieval rate of 45 meters per minute the Viper will ensure you get onto your GPS mark, first time, every time!

Now includes an Emergency Manual Release Safety Feature. This feature enables you to deploy your anchor if your boat has lost all power and is heading for a cliff, sand bank or a bar crossing, you can lower your anchor without power. Making sure you can safely anchor your boat avoiding dangerous drifting into a hazardous location. The winch will allow the anchor to release to the seabed. Once the anchor is on the bottom, tie your rope to a bollard to be safely anchored. Then you can call the coast guard or your local emergency marine service.

With unsurpassed Viper reliability, it has more torque than a conventional drum winch, 3 support bearings hugging a 28mm one (1) piece solid shaft and a 90 degree welded housing bracket which closes up the gap between your drum (preventing rope jams) and does not require any additional guards.

75 meters of 8mm Nylon 3 Strain Rope with 8 meters of 6mm Short Link Chain (Total of 83 meters Rope/Chain)

With a bullet proof 5-year Viper performance warranty, you can’t go past a Viper. Now supplied with everything you need to install it, including a 5mm stainless steel sandwich plate, all required stainless steel bolts/screws/nylocs/washers, 2 face plates depending on your dash space and even your rope chain and even swivel are included.

Specifications:

• 1000W Submersible Stainless Steel Electric Motor with IP68 Certification
• 28mm Solid S/S Shaft With 3 Support Bearings
• 8mm Marine Grade 316 Plate S/S Hand Polished to a Mirror Finish
• Viper 316 Stainless Steel Marine Worm Drive Gear Box
• 360 Degree Motor Rotation with 16 Different Positions
• Max fall rate: 50 meters per minute
• Max Retrieval rate: 45 meters per minute
• Suit Vessel Length: 5.7 meters +
• Weight: 17 kgs (winch only)
• Well Clearance Required: Width 395mm x depth 410mm x height 260mm

Bundle Includes:

• Viper "S" Series All Stainless 1000 submersible anchor winch supplied with 1 mtr 3 b&s power leads & joining connectors pressure tested & sealed
• 75 mtrs of 8mm triple strand premium rope 8 mtrs of 6mm galvanised short link anchor chain
• Viper pro series anchor swivel - small
• Viper deluxe anchor roller - small
• 200 amp reversing solenoid
• LED illuminated marine rocker switch
• Viper laser etched led illuminated switch cover
• 100 amp flush mount circuit breaker with rubber seal
• Single LED switch stainless steel face plate
• Combo LED switch & circuit breaker S/S face plate
• 5mm stainless steel sandwich plate
• All fixing hardware
• Installation notes & wiring diagram
