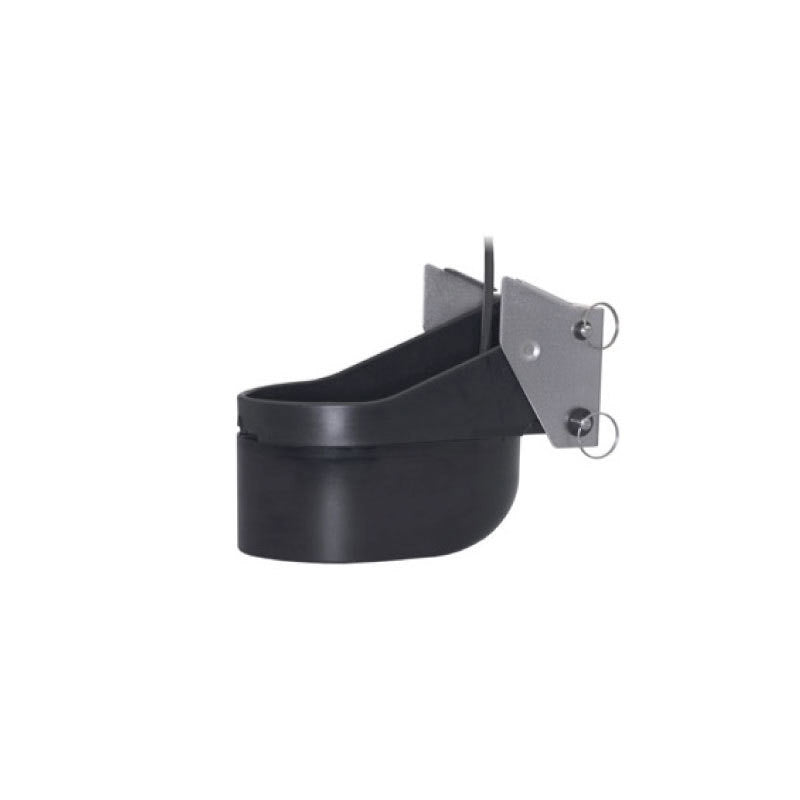

XSONIC AIRMAR TM185 HW CHIRP Transom Mount Transducer
XSONIC AIRMAR TM185 HW CHIRP Transom Mount Transducer

XSONIC AIRMAR TM185 HW CHIRP Transom Mount Transducer

No reviews yet
Part Number:

Get more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25° Beamwidth, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducers

A unique property of the new high frequency transducers is that the Beamwidth is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.

Compatibility

Airmar XSONIC Transducers come with the new 9-Pin Black XSONIC connector. This transducer is compatible with Lowrance HDS Gen3, HDS Carbon and Elite-7 ti models. No need to mix, match or splice. Just plug and go!

Airmar TM185 Single Band CHIRP Transom-Mount Transducer Specifications:

  • CHIRPS across the following bandwidths: High Frequency at 150-250 kHz
  • 25degree Constant Beamwidth
  • RMS Power: 1kW (1,000 Watt)
  • Depth Range: 600 -800ft
  • Boat Size: 8 to 12 m (25 to 40ft)
  • Boat Type: Outboards; I/O
  • Hull Type: Fiberglass, Wood, Metal
  • Frequency: 150-250 kHz
  • Urethane Housing
  • Stainless Steel Mounting Bracket

Wide Beam

  • Wide beam CHIRP transom-mount
  • 25° constant beamwidth
  • Depth and fast-response water-temperature sensor
  • Kick-up assembly locks in the “up” position and will not damage the transom
  • Accommodates transom angles between 2° and 20°
  • Urethane housing and stainless steel mounting bracket
  • Boat Type: Outboards and I/O
  • Hull Type: Fiberglass, Wood, or Metal
  • Frequency: 150-250 kHz
  • Cone: 25° constant
  • RMS Power: 1 kW
